Troubleshooting

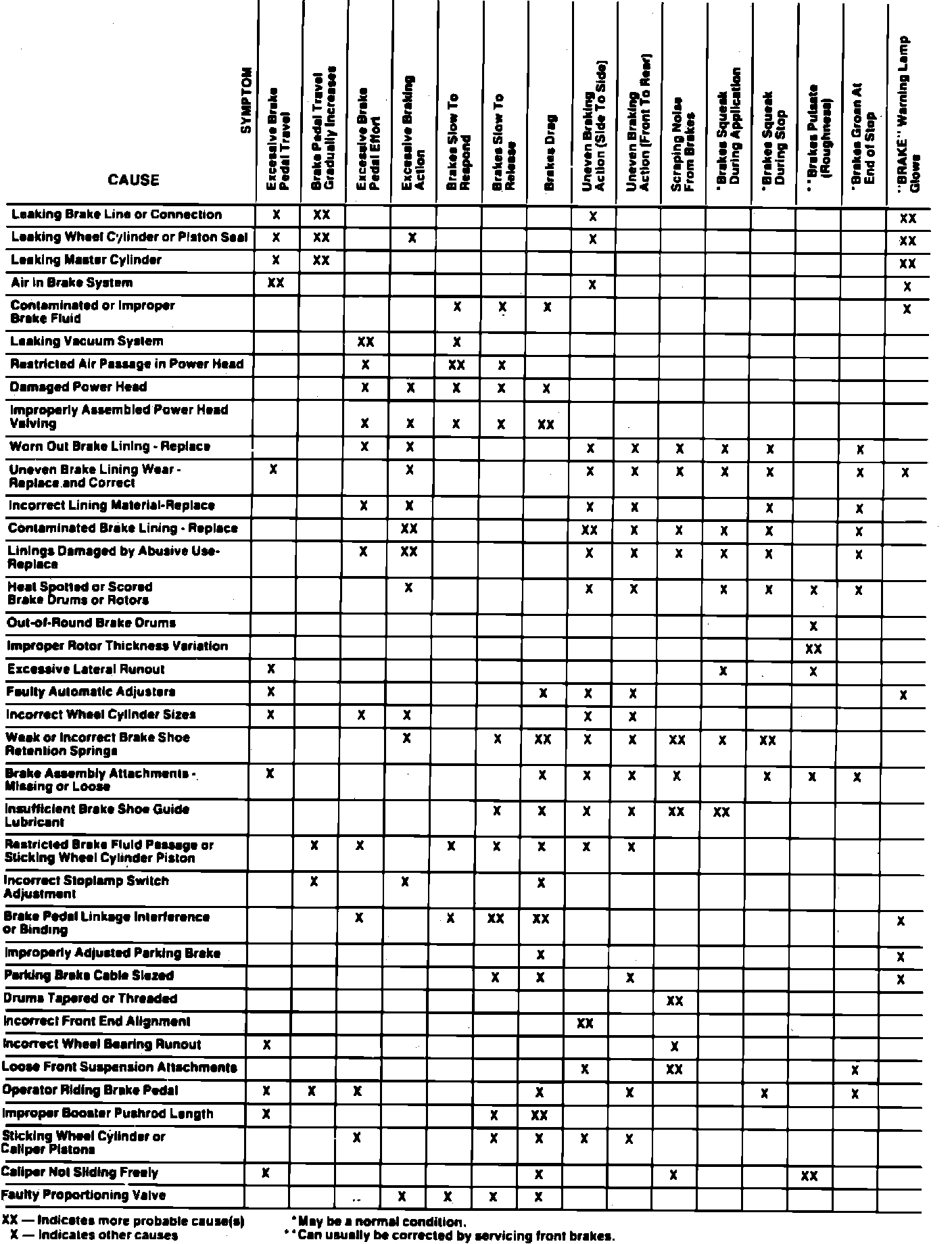

Fig. 1 Troubleshooting Brake System Chart:
When troubleshooting brake system, refer to
Fig. 1.
