Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 3 RH Front Door Will Not Lock

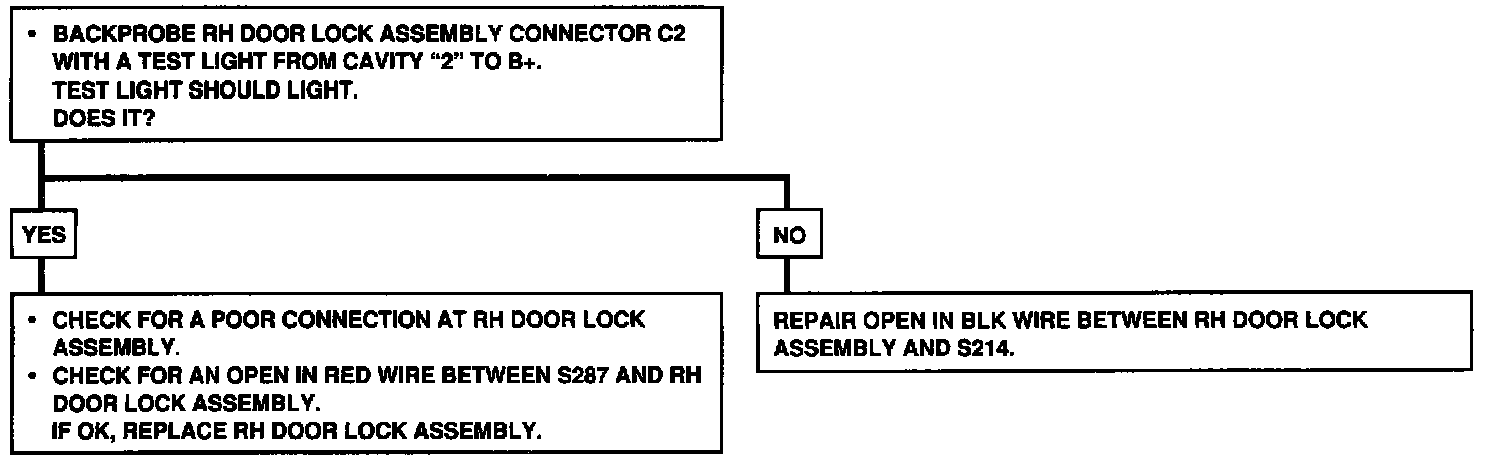

Chart 3 RH Front Door Will Not Lock

Chart 3: Automatic Door Locks: Hardtop, RH Door Will Not Lock:
