Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 51 >> Supplemental Inflatable Restraint (SIR)

Supplemental Inflatable Restraint (SIR)

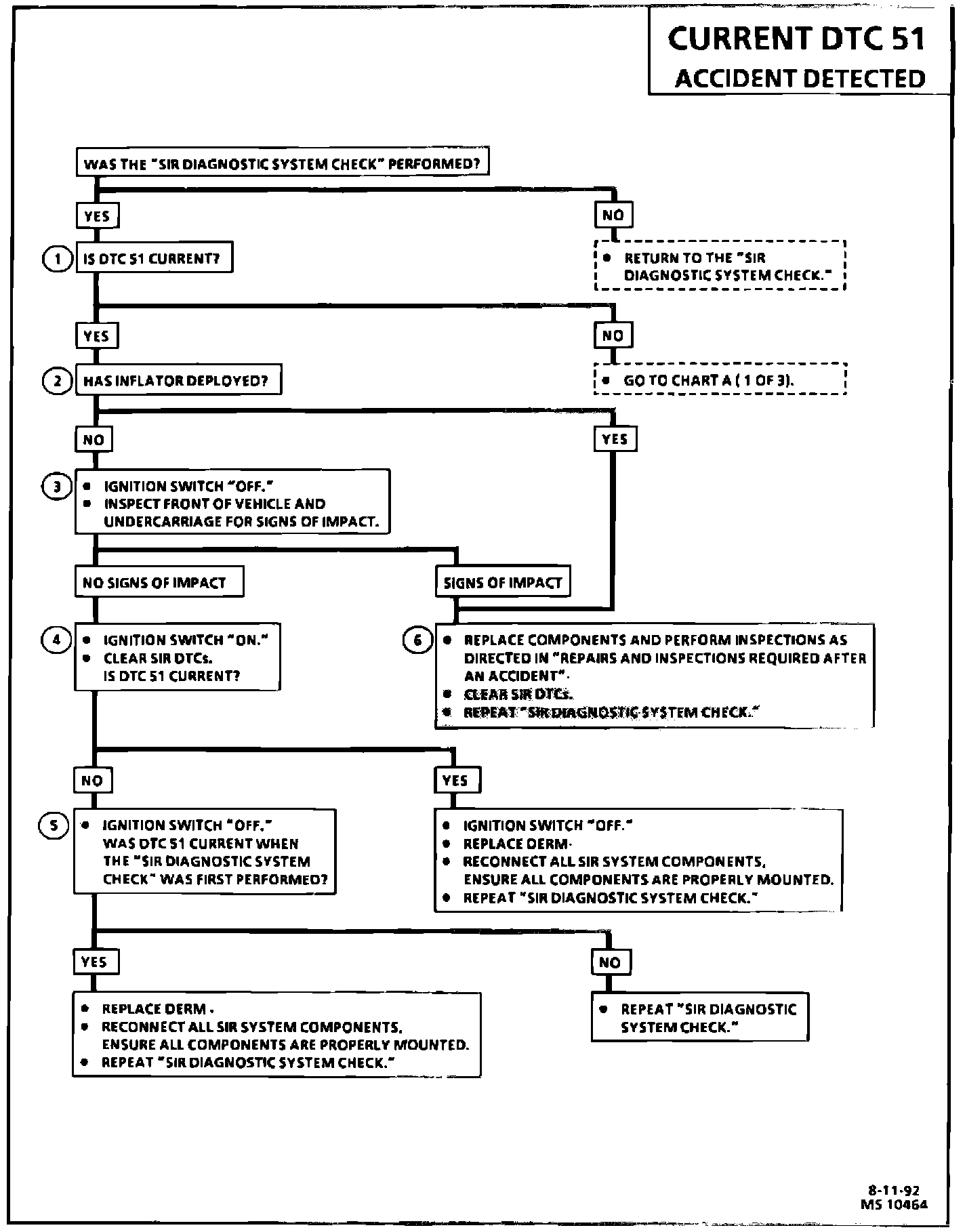

Fig. 386 Current Code 51, Accident Detected (Part 1 of 2):
