Supplemental Inflatable Restraint (SIR)

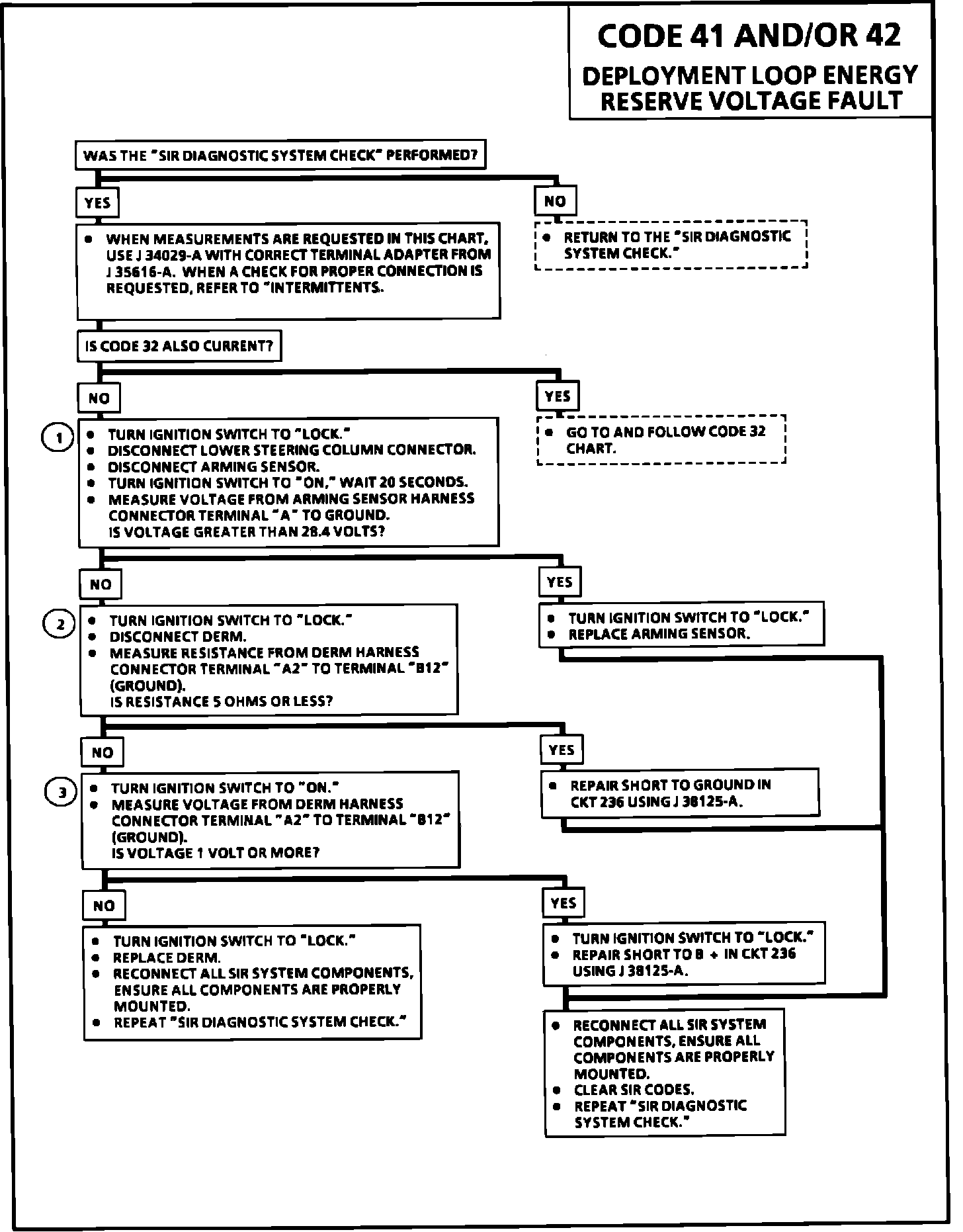

Fig. 385 Code 41 And/Or 42, Deployment Loop Energy Reserve Voltage Fault (Part 1 of 2):

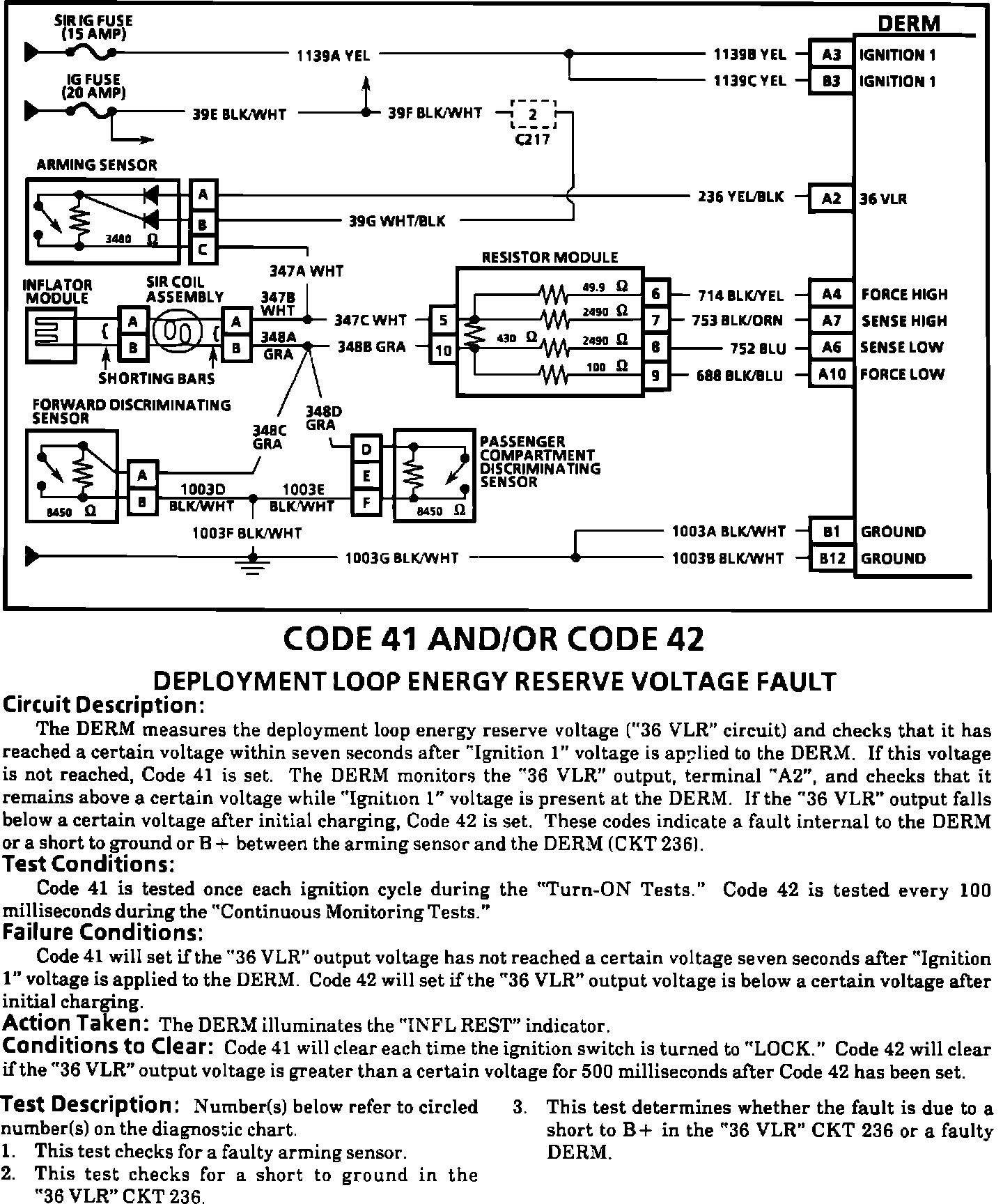

Fig. 385 Code 41 And/Or 42, Deployment Loop Energy Reserve Voltage Fault (Part 2 of 2):
