Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 35

DTC 35

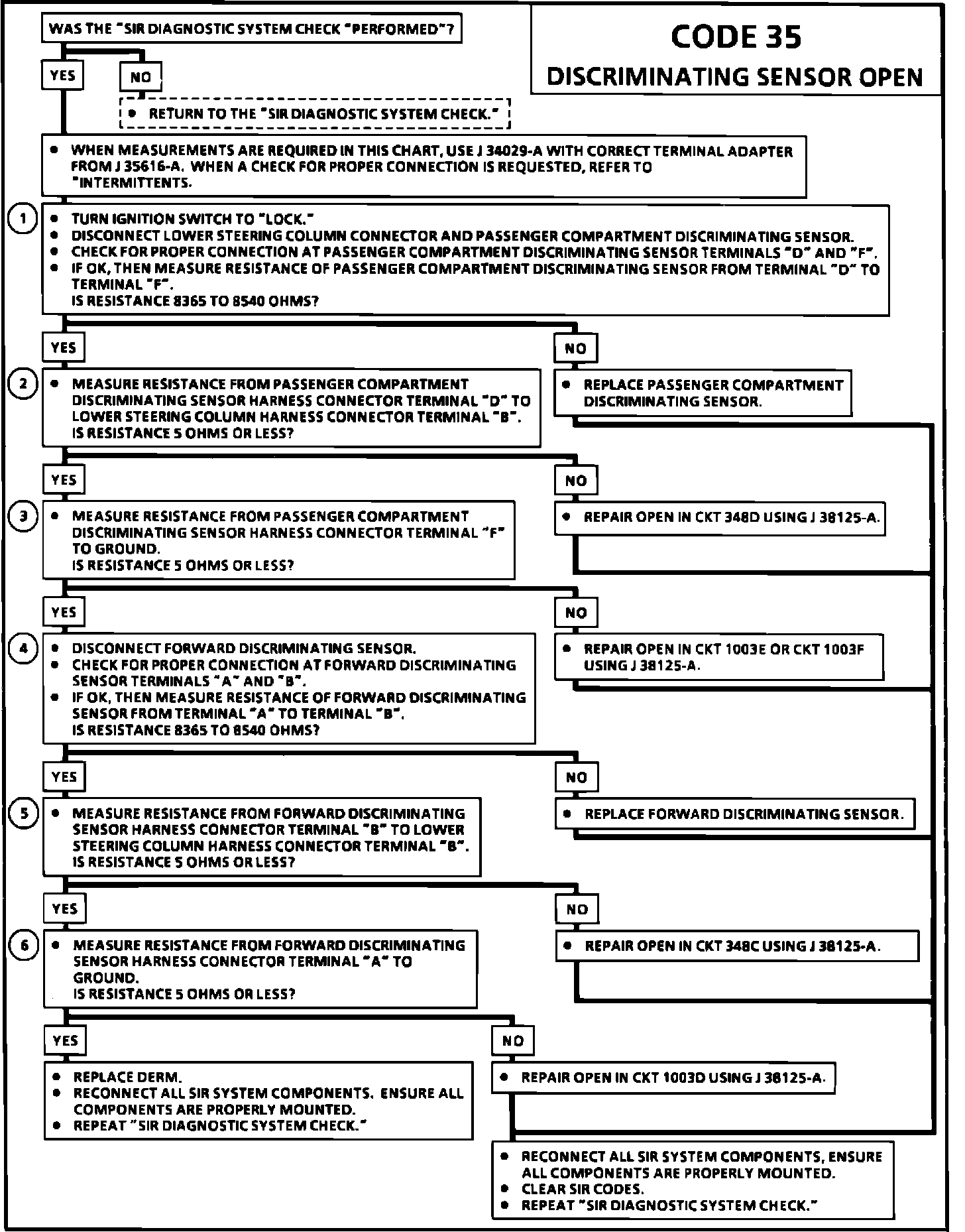

Fig. 384 Code 35, Discriminating Sensor Open (Part 1 of 2):

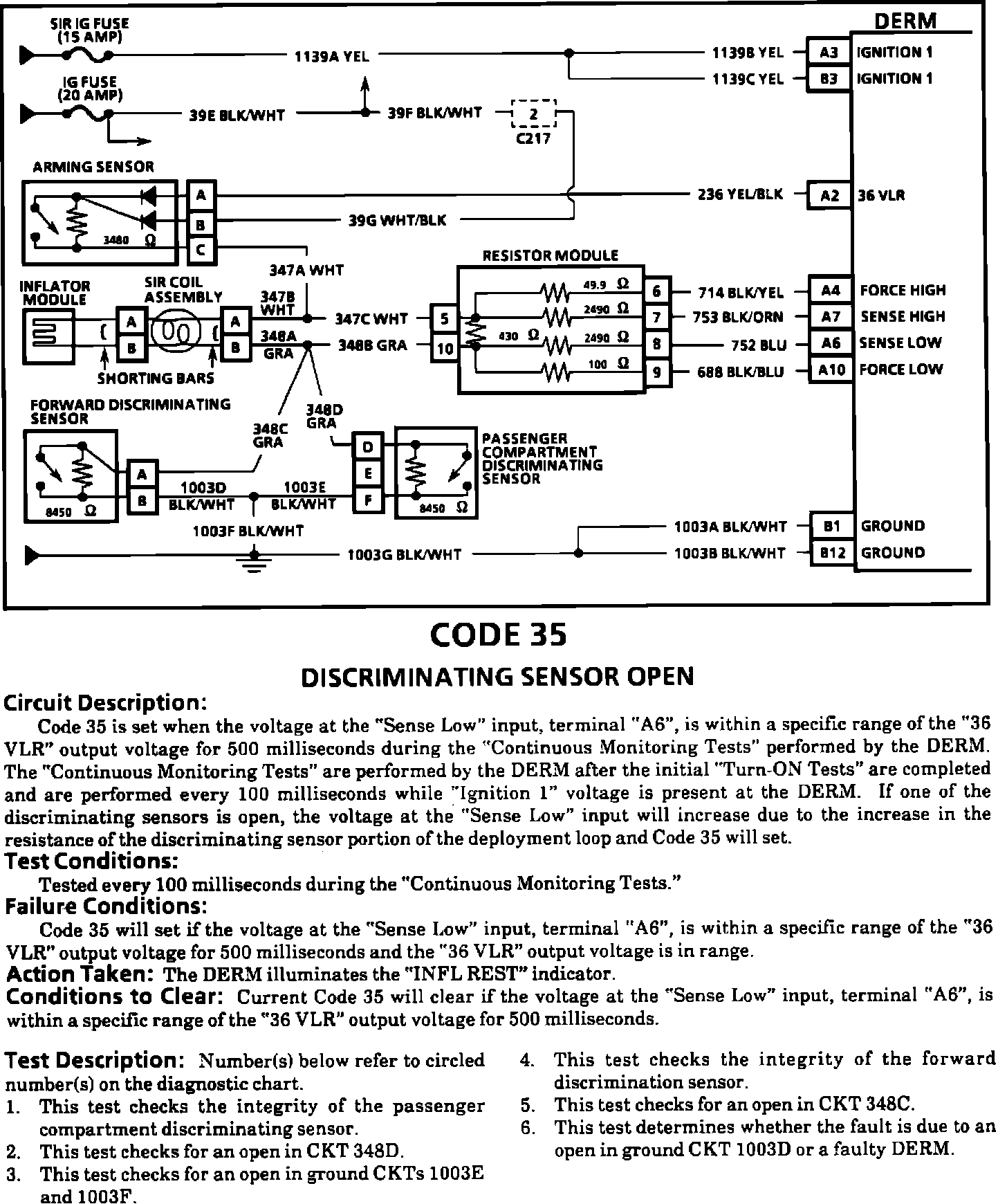

Fig. 384 Code 35, Discriminating Sensor Open (Part 2 of 2):
