DTC 34

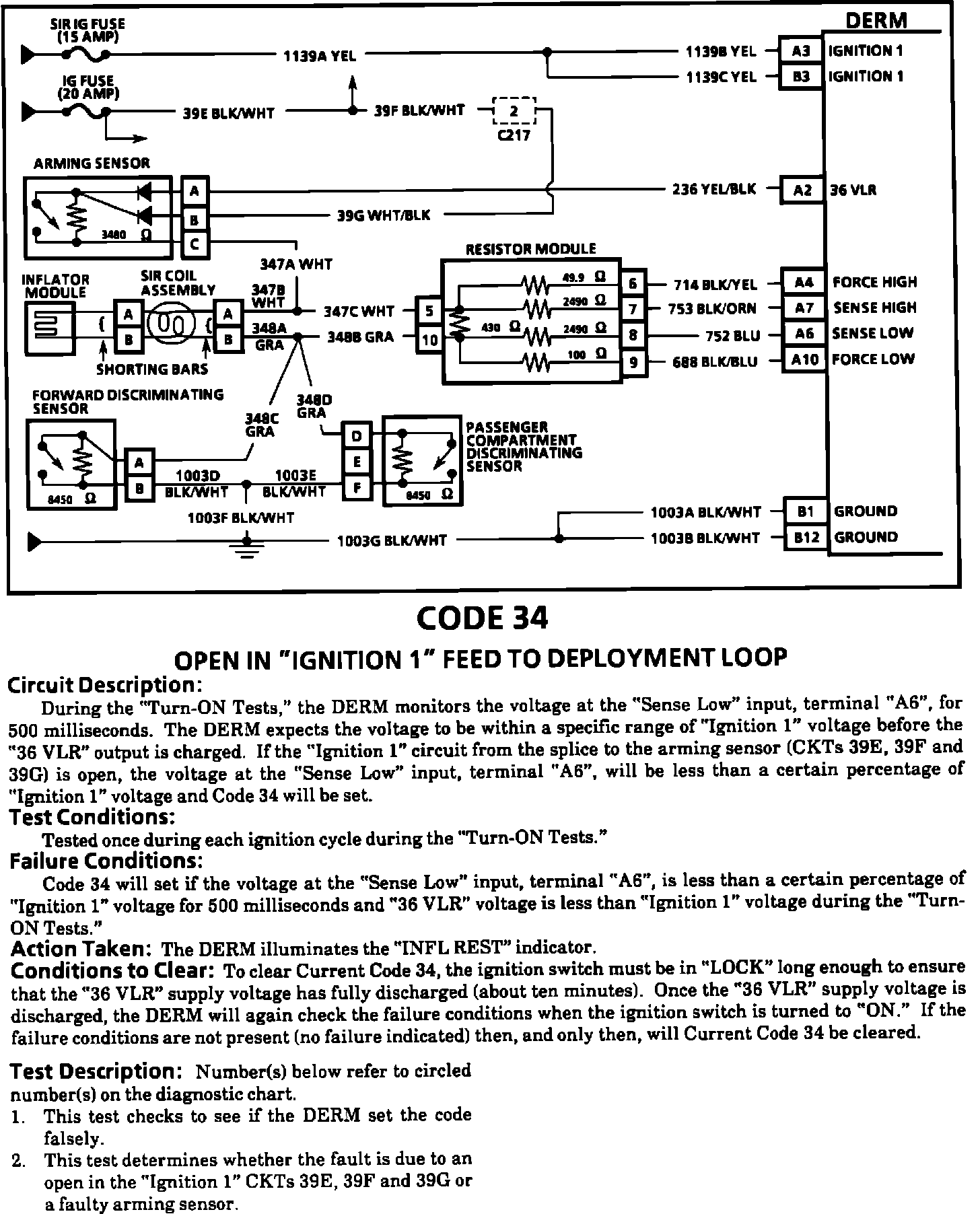

Fig. 383 Code 34, Open In Ignition 1 Feed To Deployment Loop (Part 1 of 2):

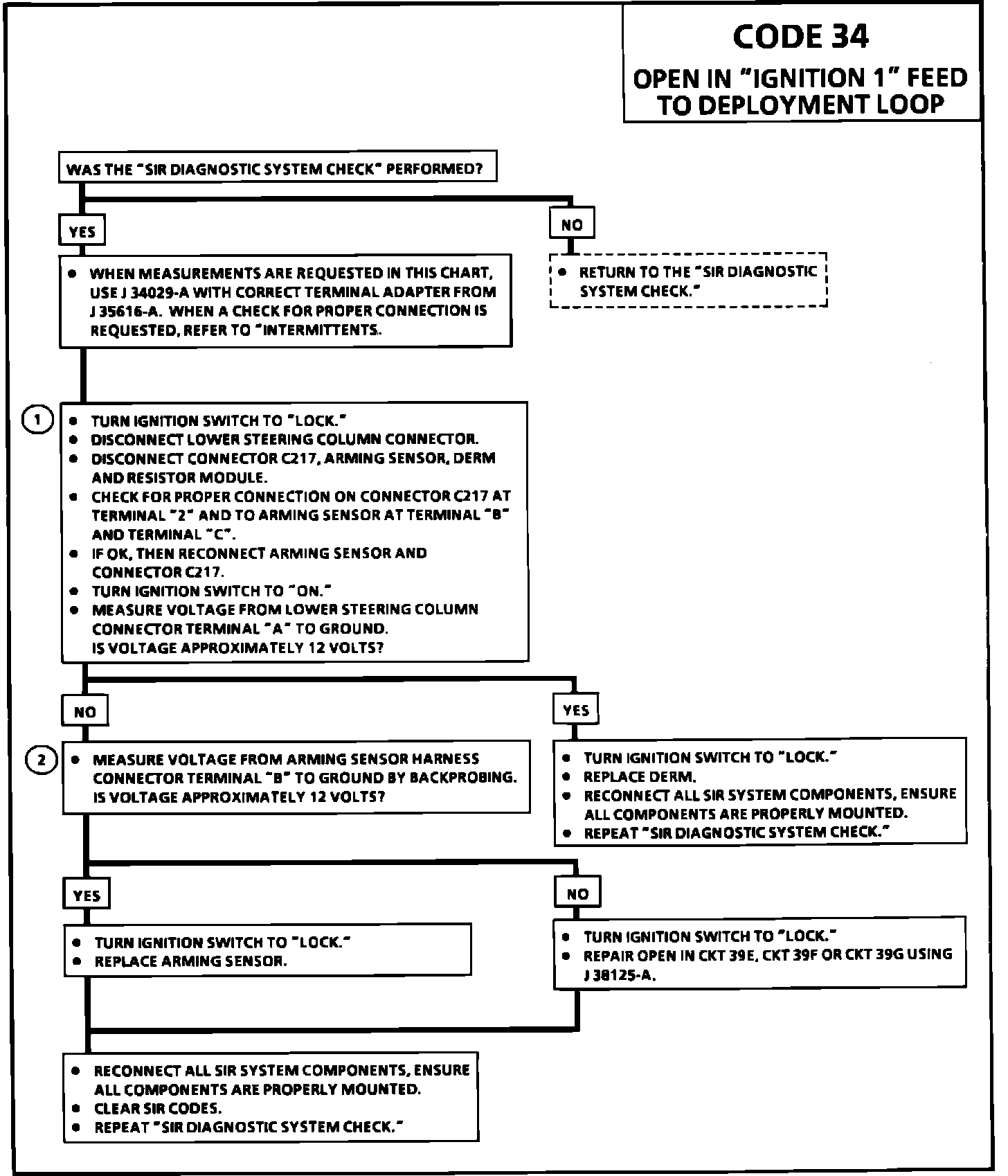

Fig. 383 Code 34, Open In Ignition 1 Feed To Deployment Loop (Part 2 of 2):
