Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 33

DTC 33

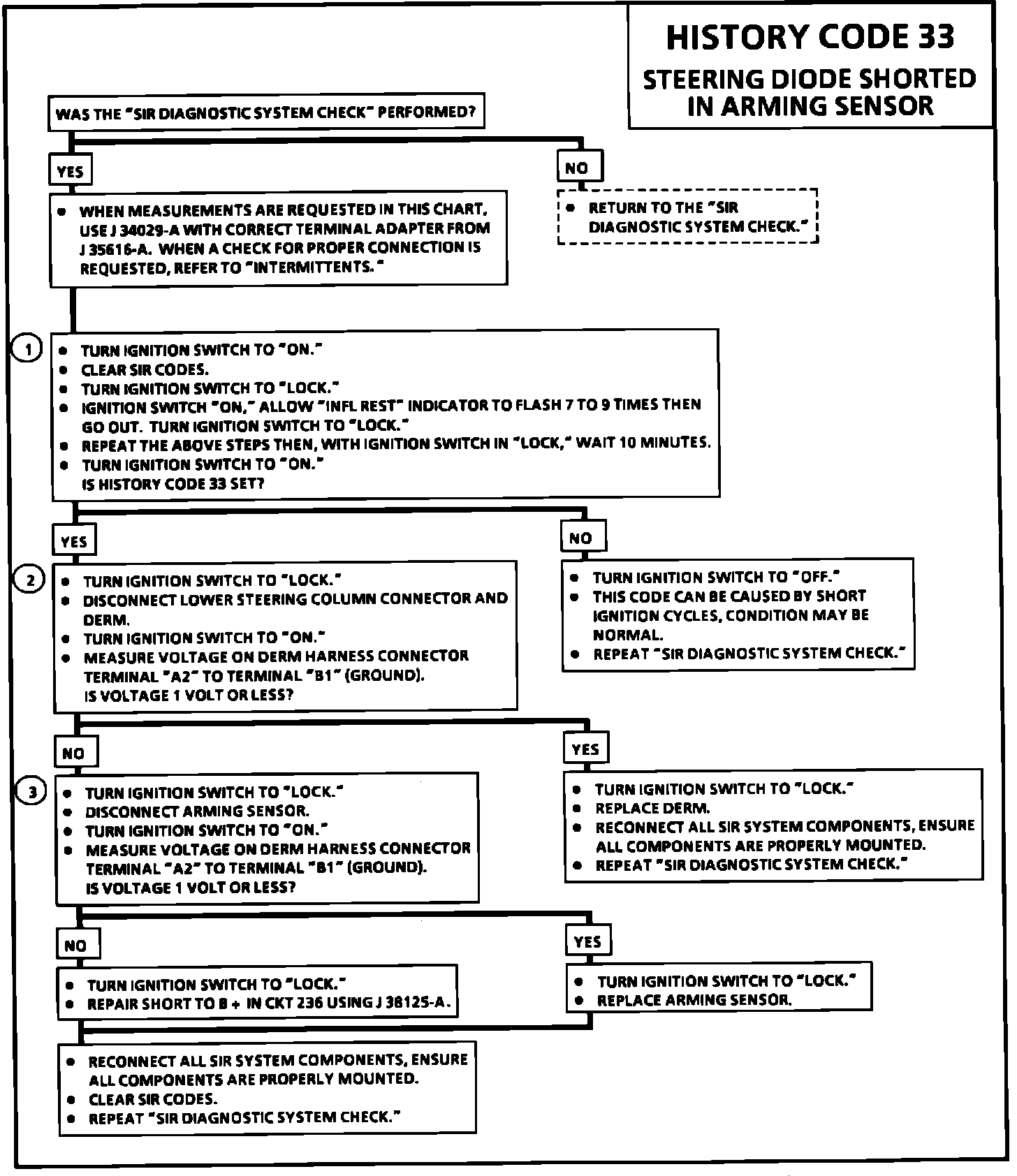

Fig. 382 History Code 33, Steering Diode Shorted In Arming Sensor (Part 1 of 2):



Fig. 382 History Code 33, Steering Diode Shorted In Arming Sensor (Part 2 of 2):
