Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 32 >> Supplemental Inflatable Restraint (SIR)

Supplemental Inflatable Restraint (SIR)

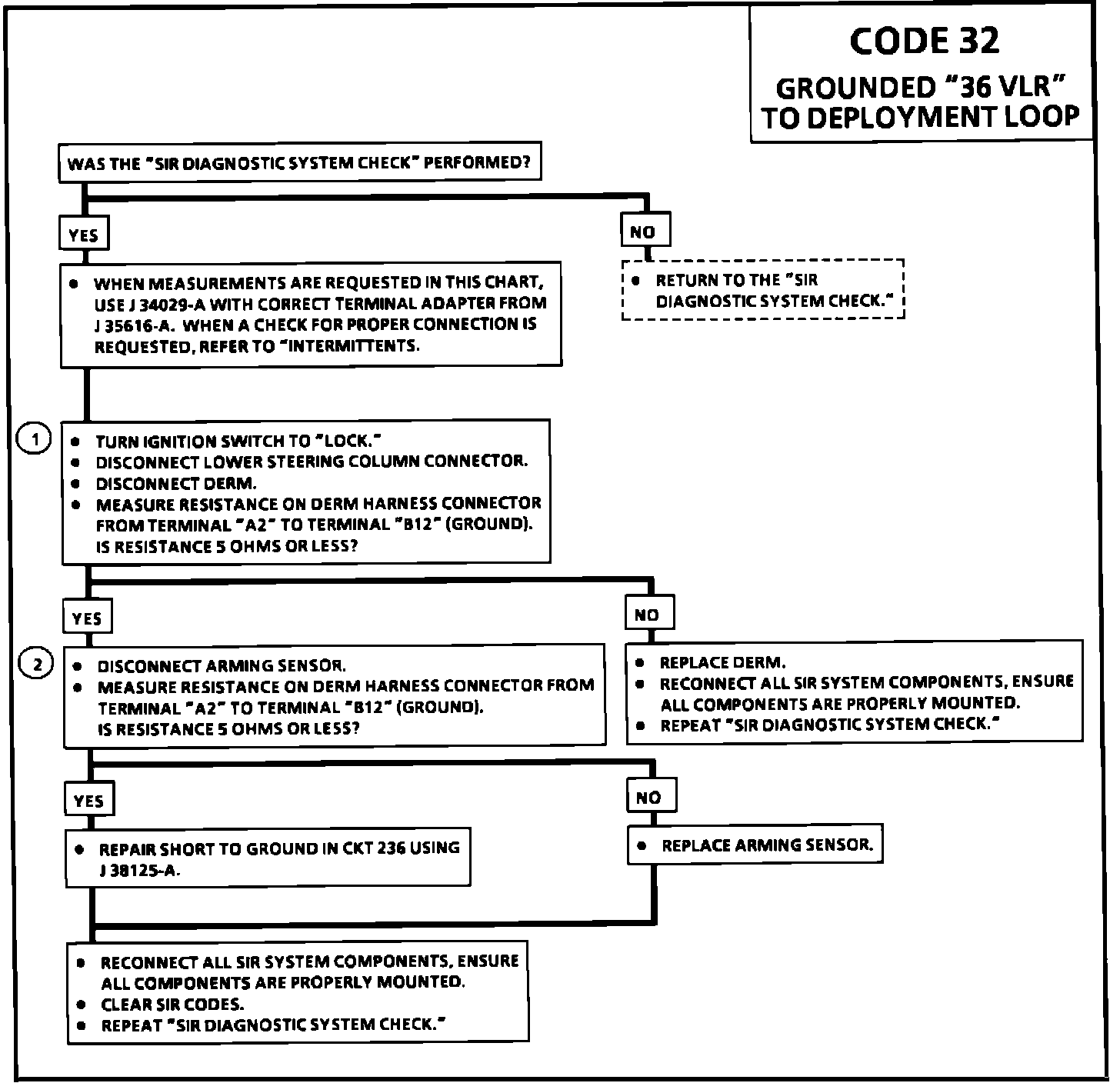

Fig. 381 Code 32, Grounded 36VLR To Deployment Loop (Part 1 of 2):

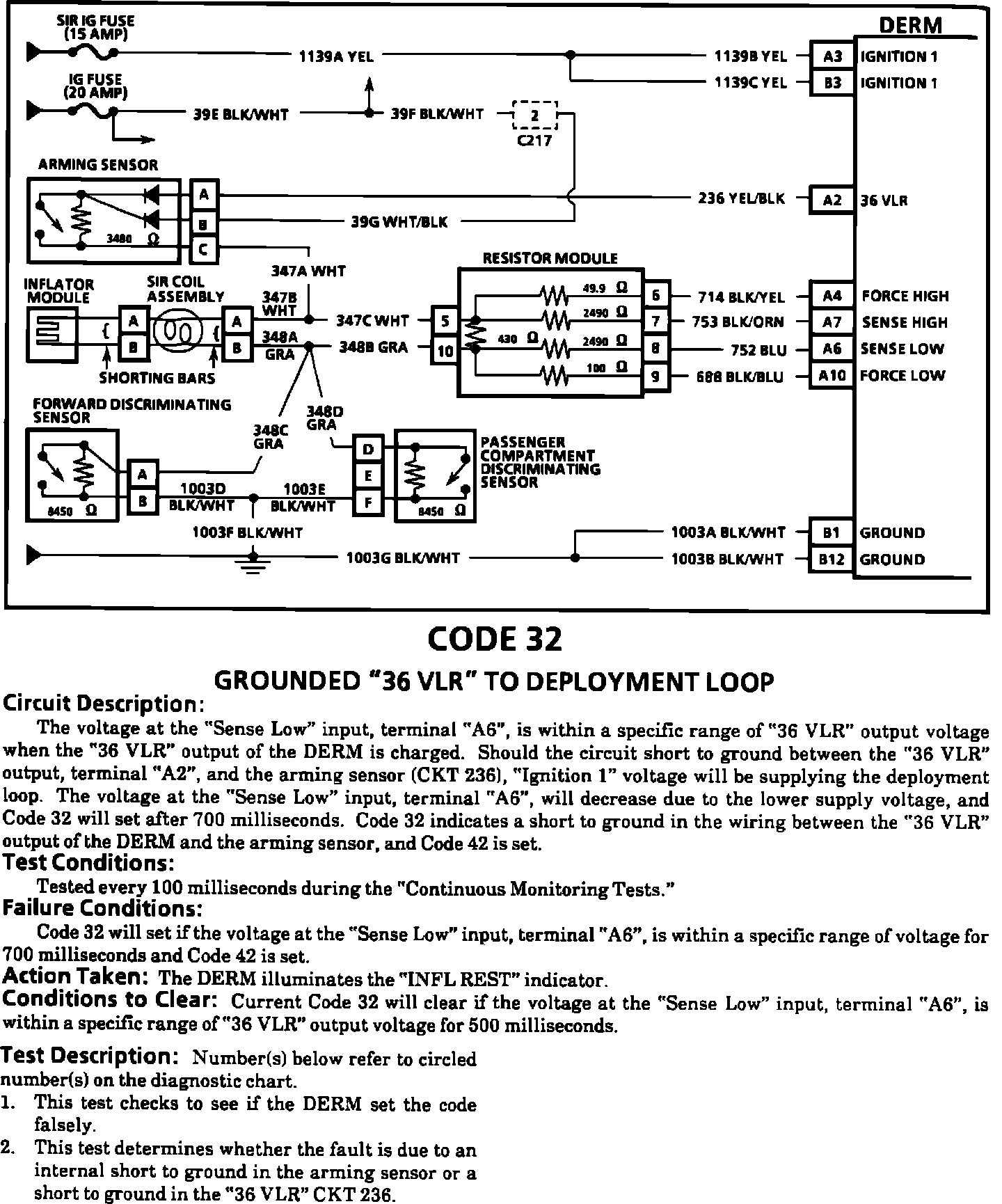

Fig. 381 Code 32, Grounded 36VLR To Deployment Loop (Part 2 of 2):
