Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 24 >> Supplemental Inflatable Restraint (SIR) >> Part 4 of 4

Part 4 of 4

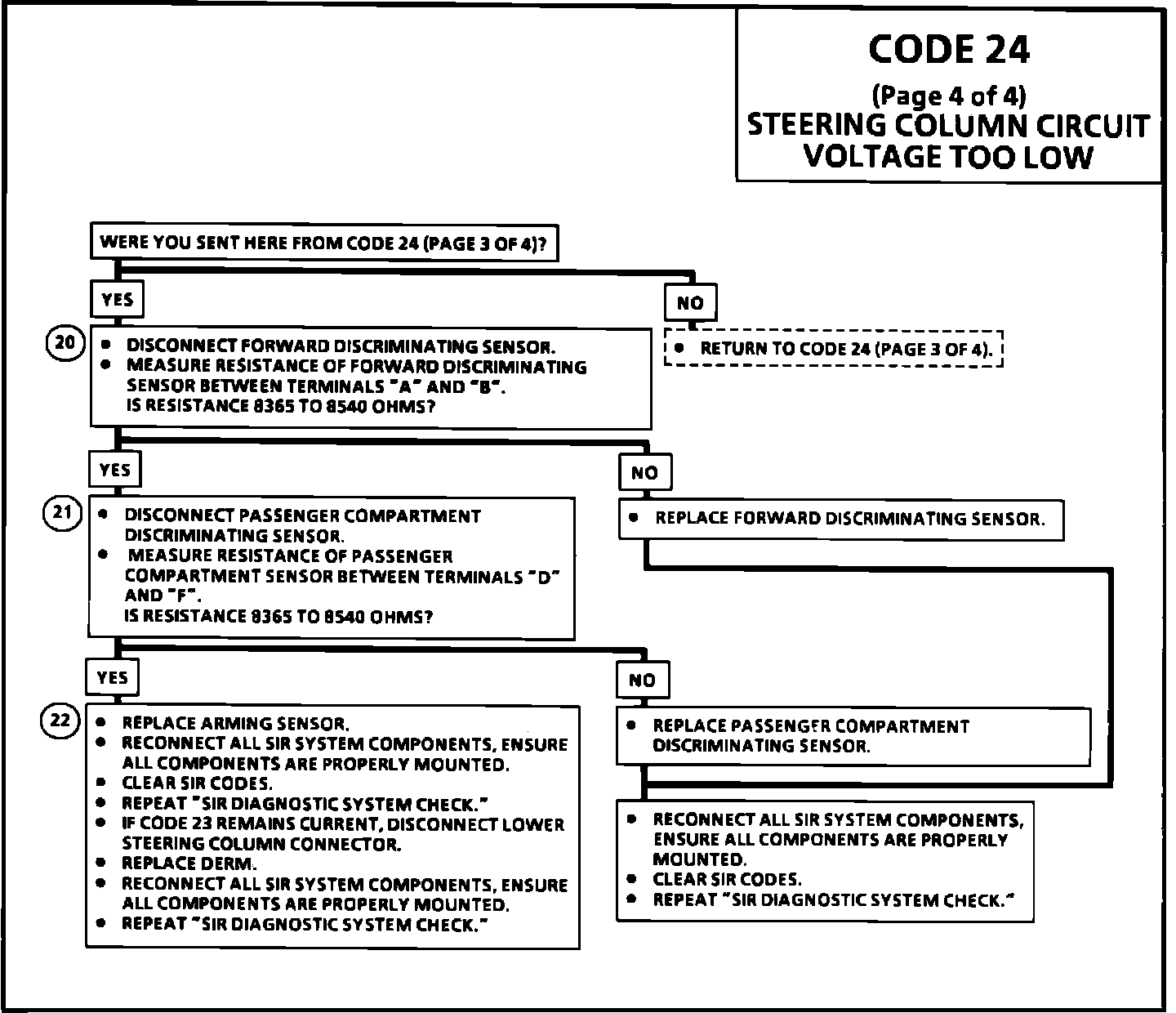

Fig. 377 Code 24, Steering Column Circuit Voltage Too Low (Part 7 Of 8):

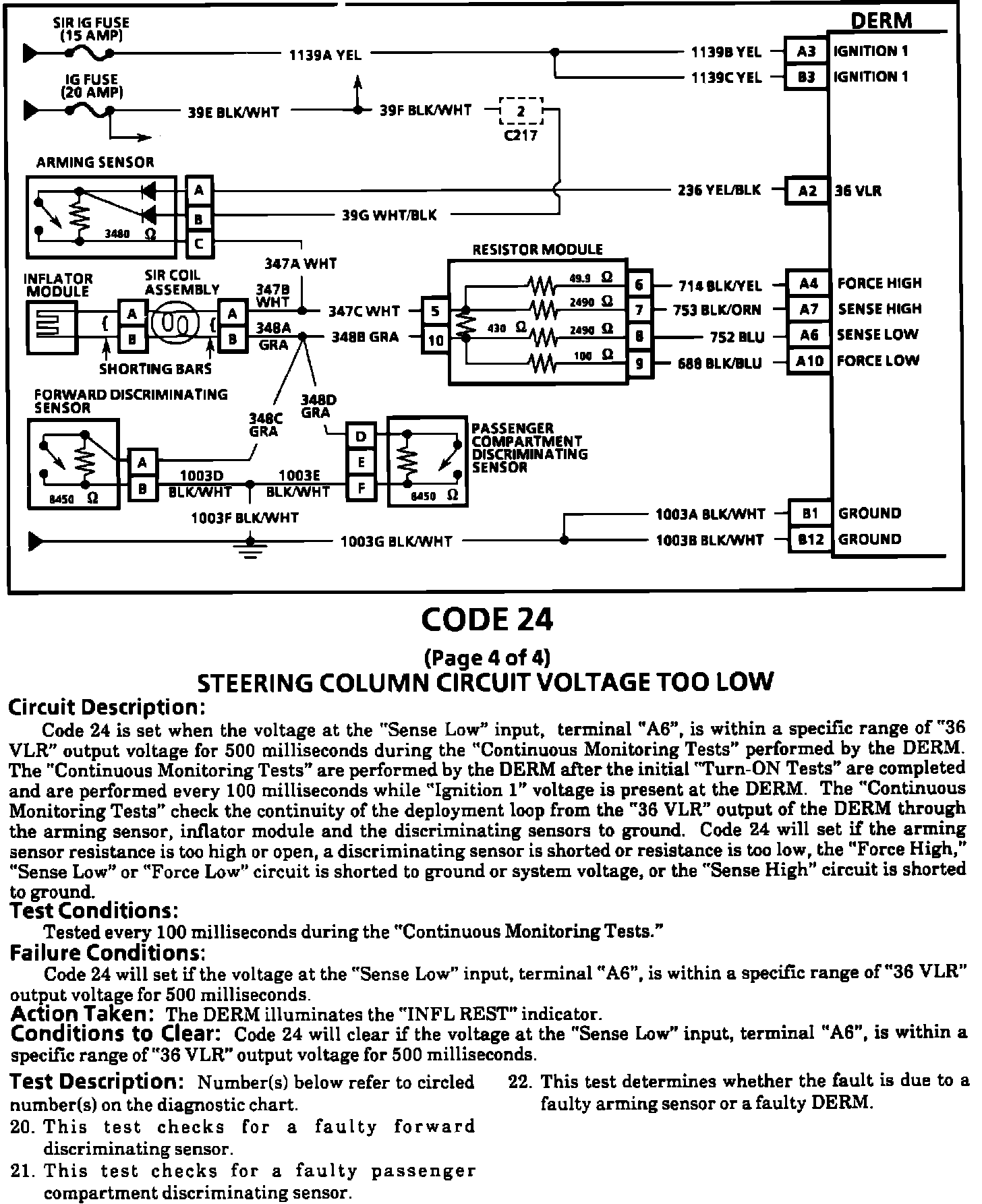

Fig. 377 Code 24, Steering Column Circuit Voltage Too Low (Part 8 Of 8):
