Supplemental Inflatable Restraint (SIR)

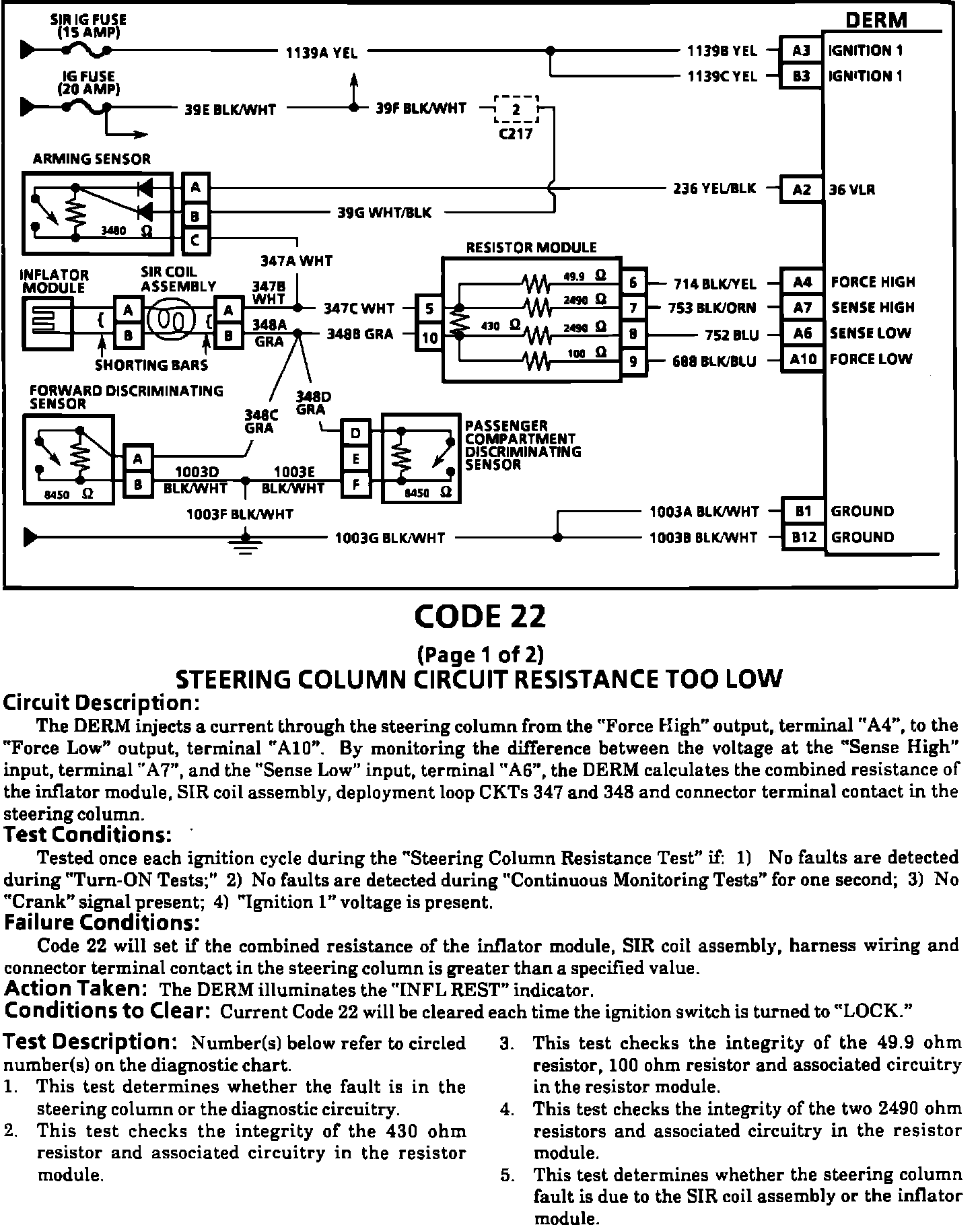

Fig. 374 Code 22, Steering Column Circuit Resistance Too Low (Part 1 Of 4):

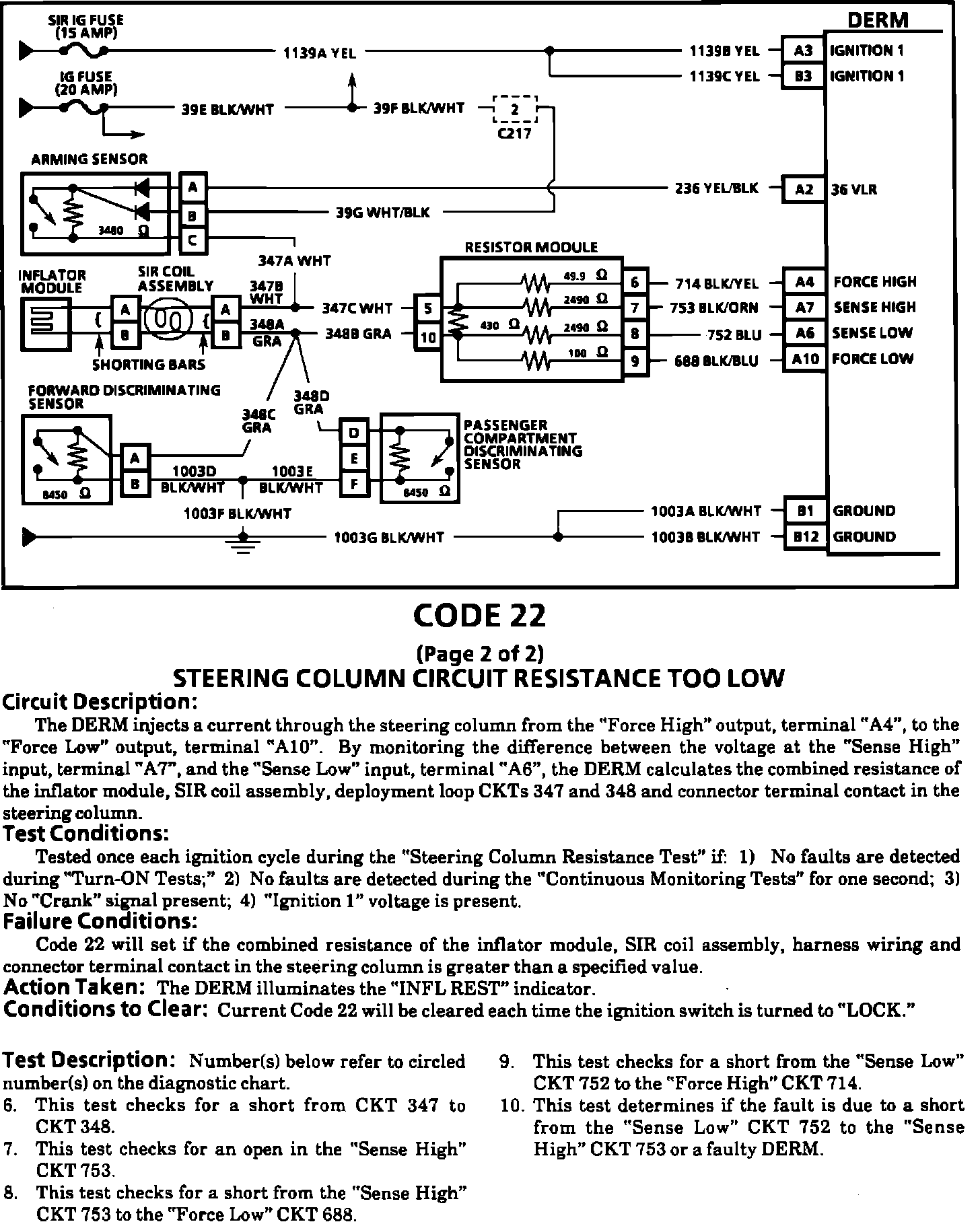

Fig. 374 Code 22, Steering Column Circuit Resistance Too Low (Part 2 Of 4):

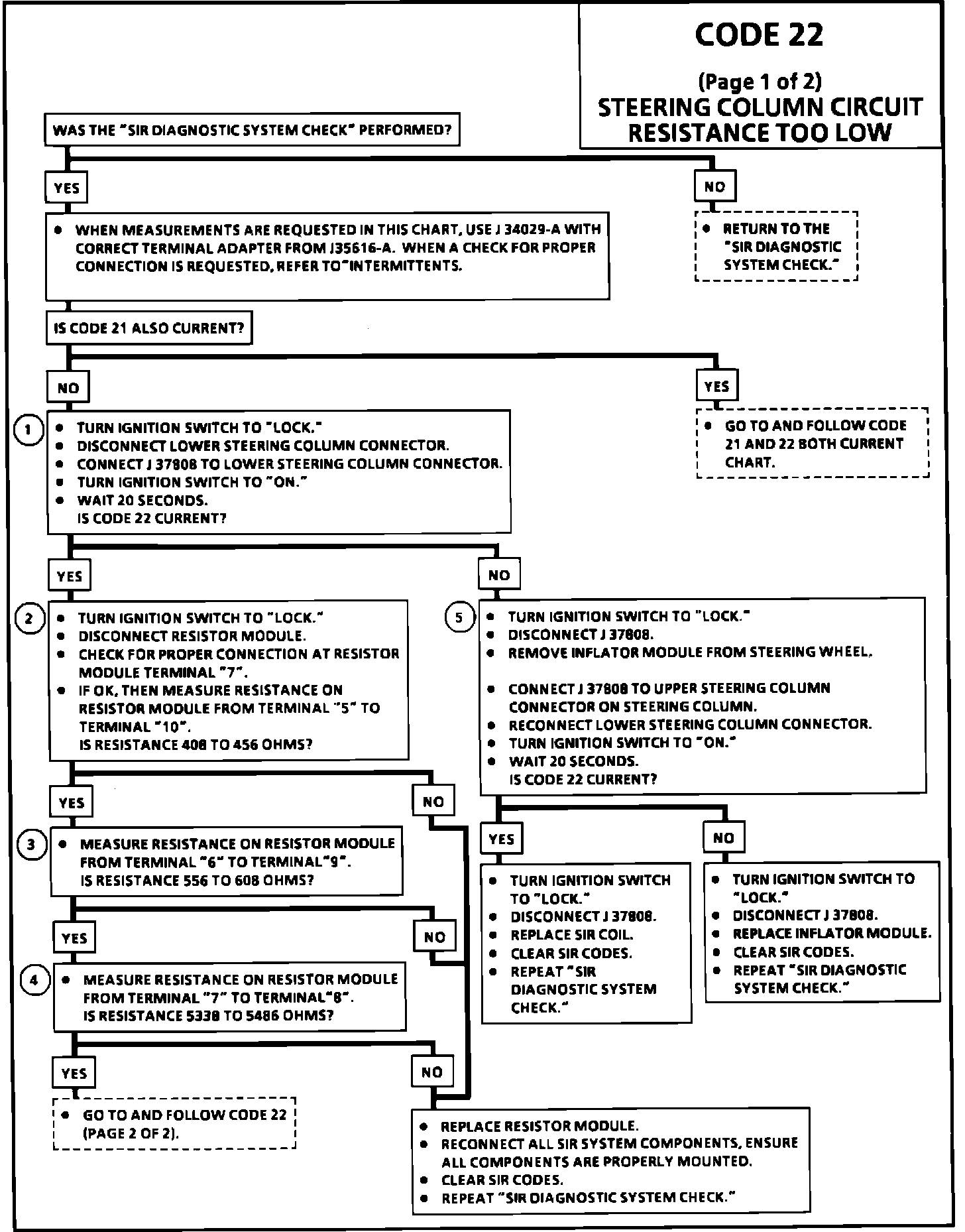

Fig. 374 Code 22, Steering Column Circuit Resistance Too Low (Part 3 Of 4):

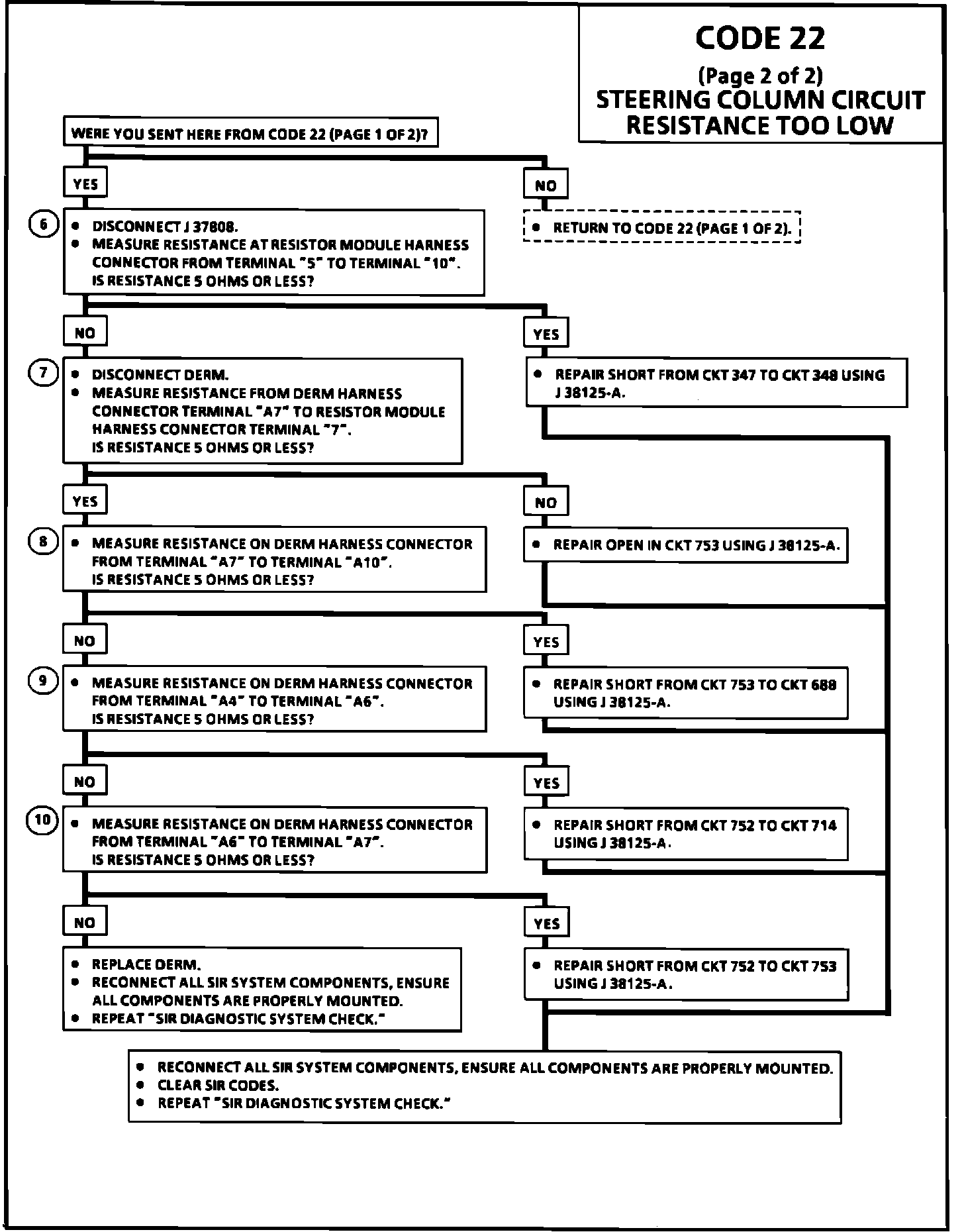

Fig. 374 Code 22, Steering Column Circuit Resistance Too Low (Part 4 Of 4):
