MP 3010-NP0 - Transfer Case
>>

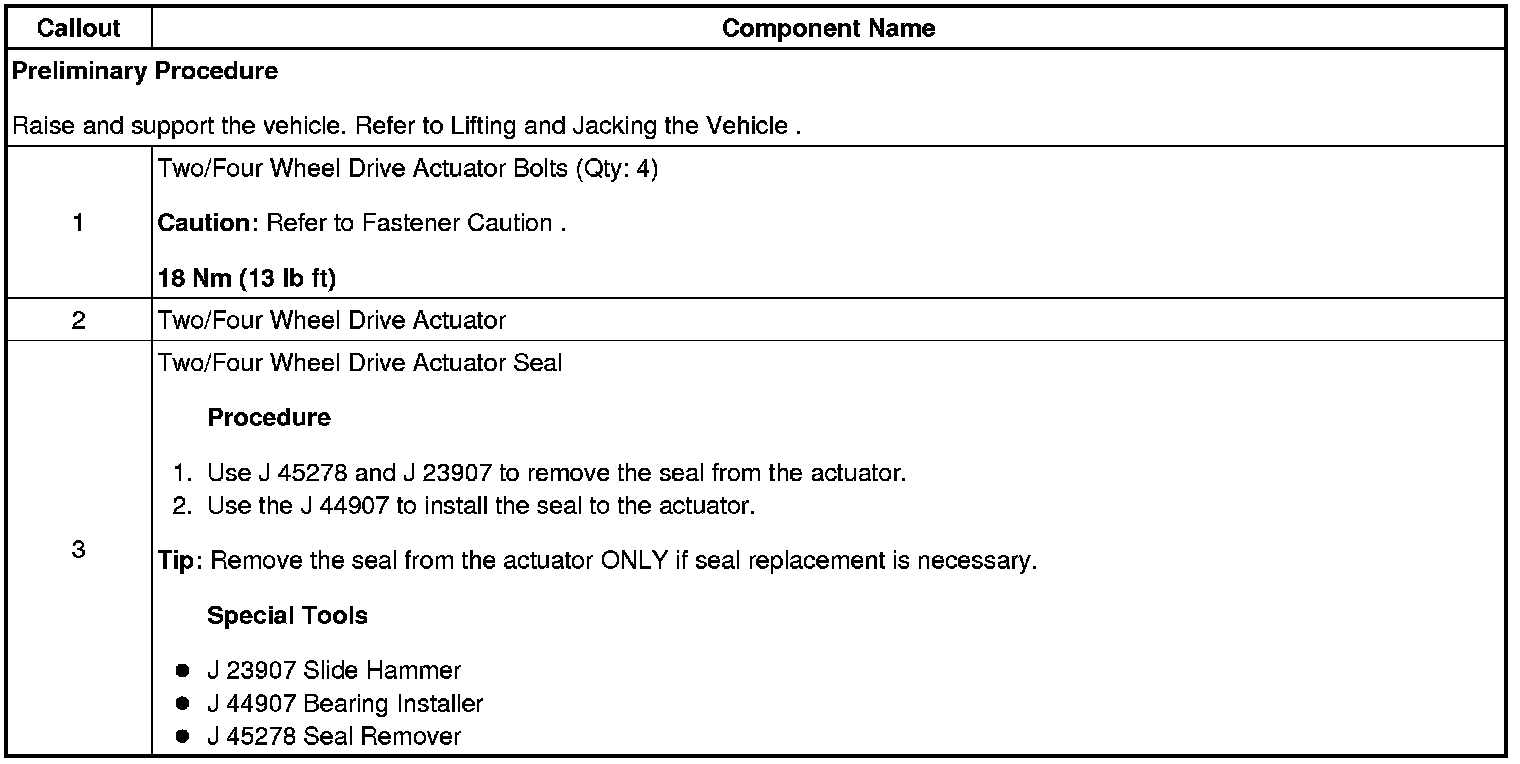

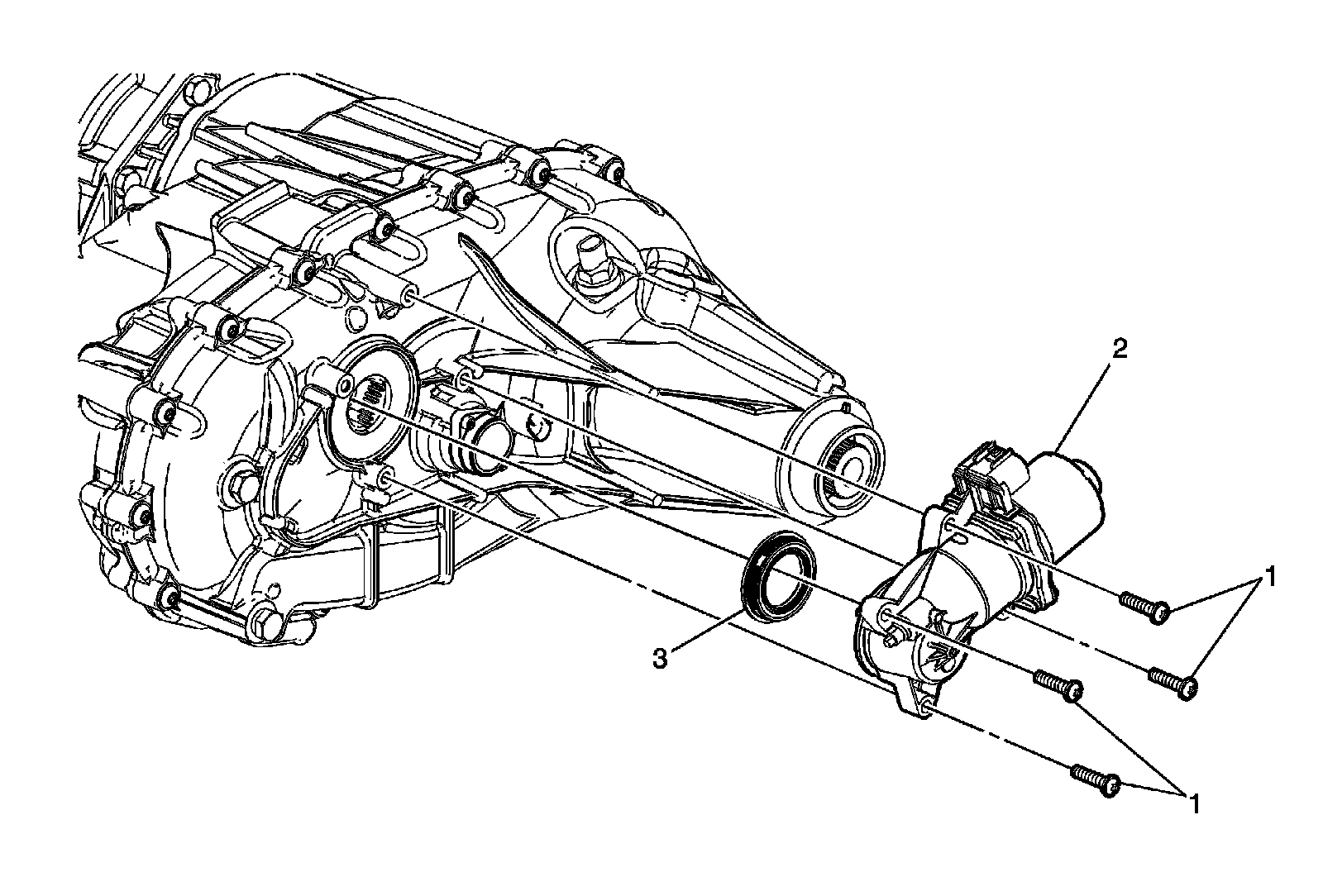

Transfer Case Two/Four Wheel Drive Actuator Replacement
Transfer Case Two/Four Wheel Drive Actuator Replacement
Transfer Case
Two/Four Wheel Drive
Actuator
Replacement
