Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Removal and Replacement >> 2ML70 - Automatic Transmission >> Rear Case and Gasket Replacement

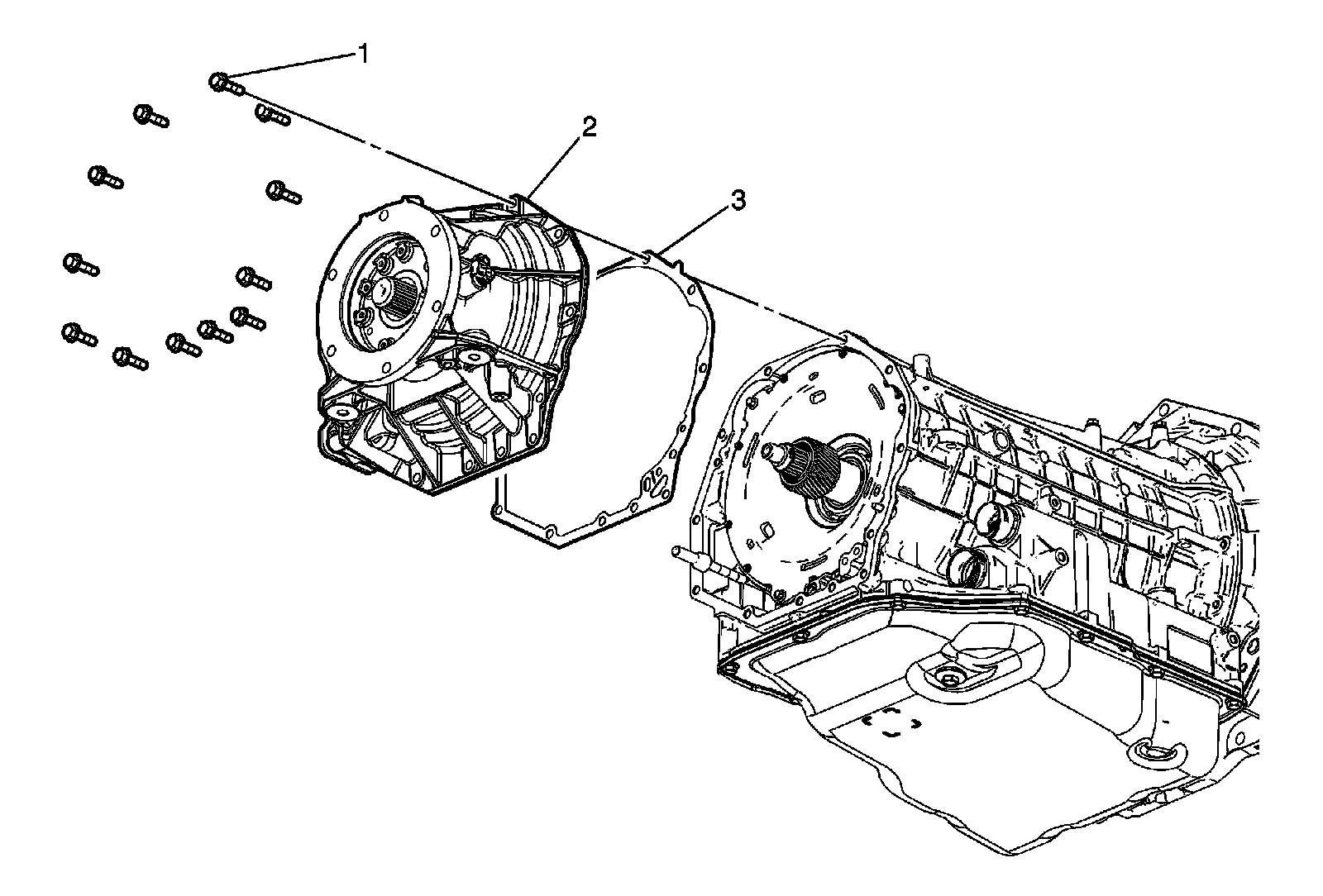

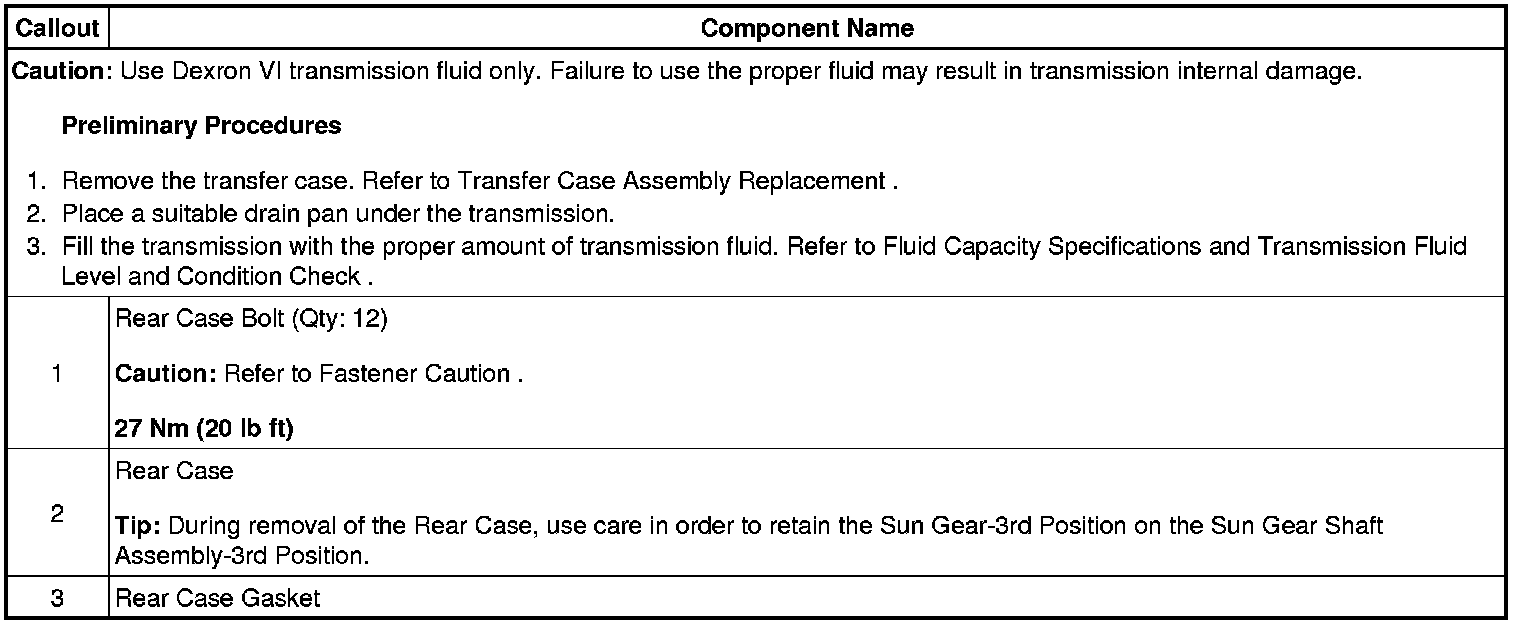

Rear Case and Gasket Replacement




Rear Case and Gasket Replacement
