8. Drive Motor with Generator Assembly Removal - 1st Position

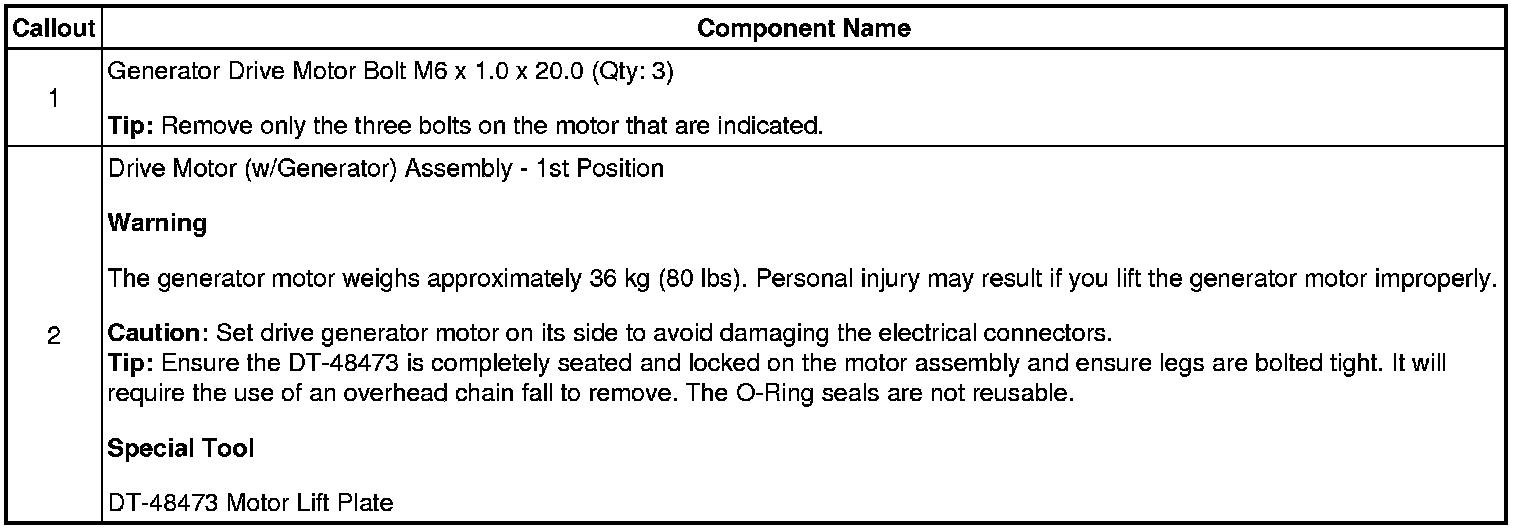

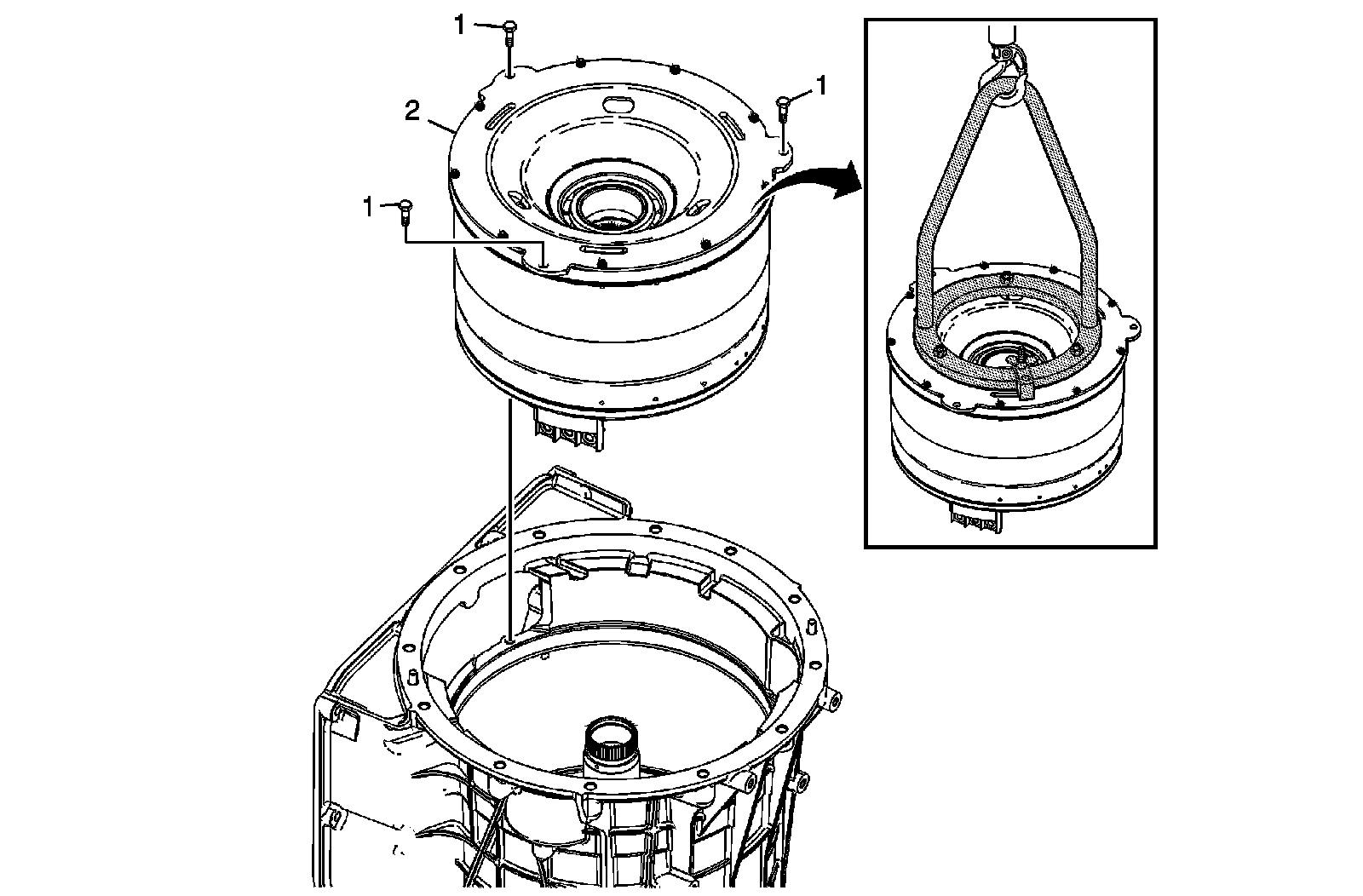

Drive Motor with Generator Assembly Removal - 1st Position
