50. Torque Dampener Housing and Fluid Pump Cover Assemble

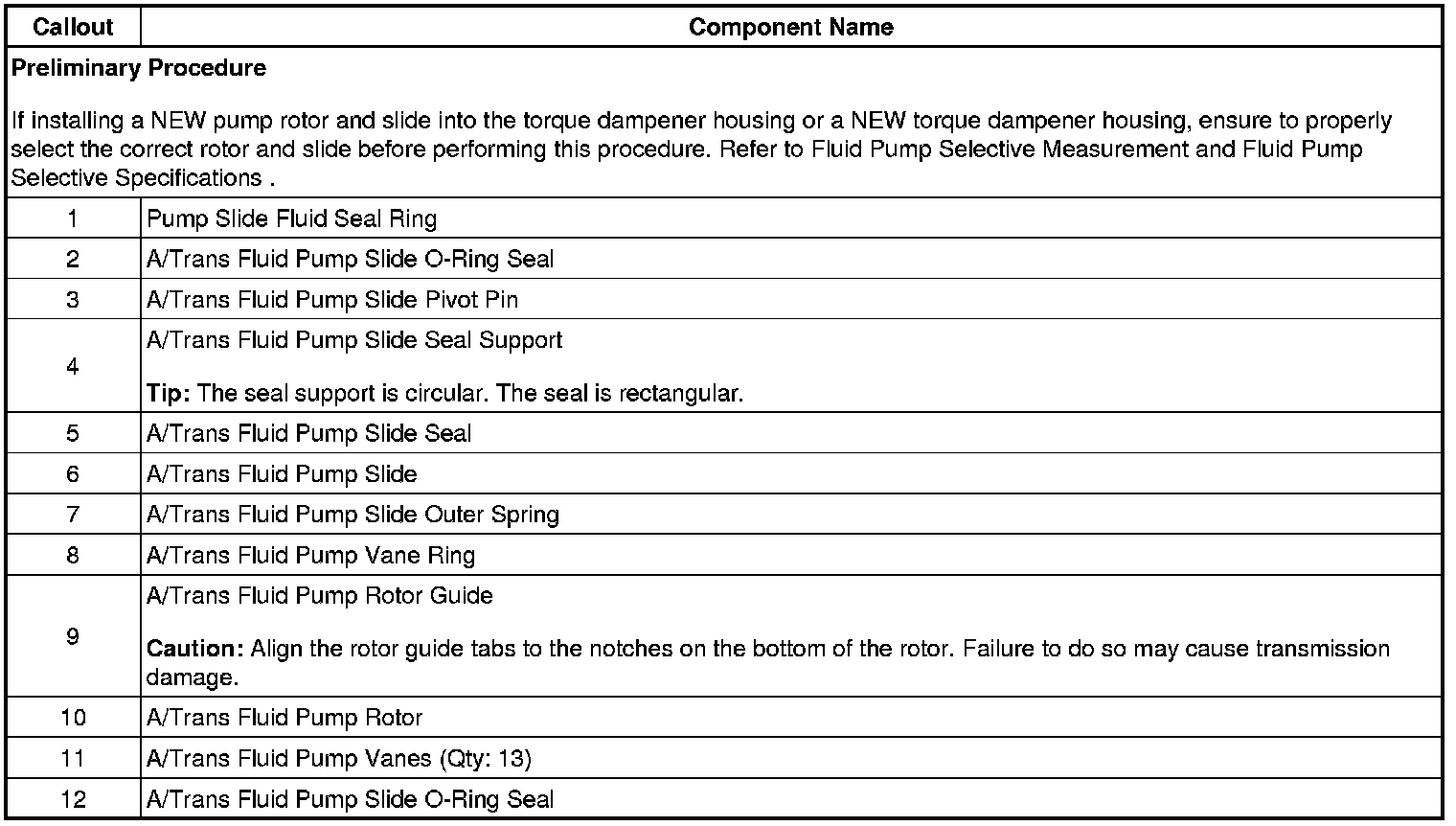

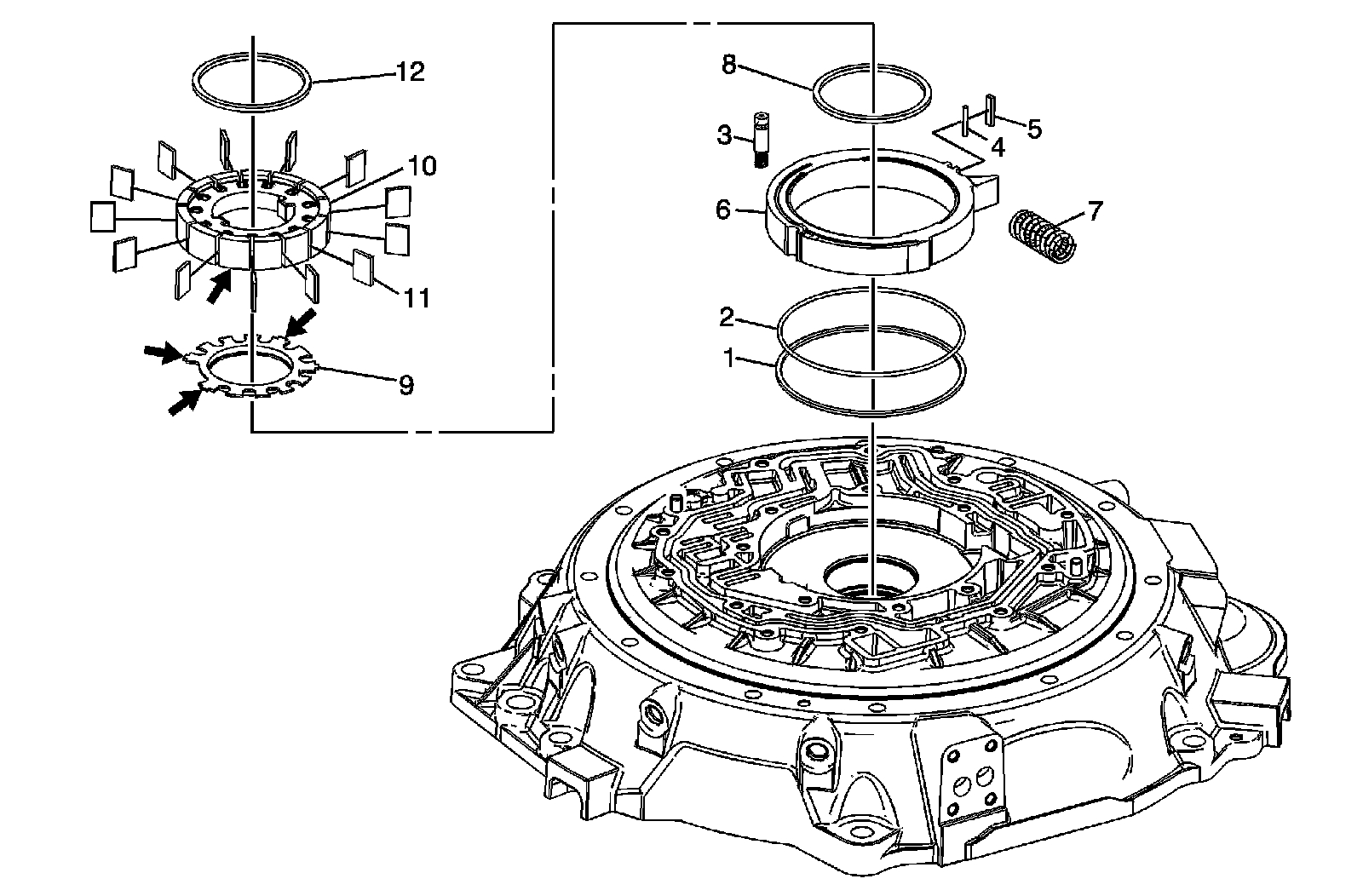

Torque Dampener Housing and Fluid Pump Cover Assemble
