2ML70 - Automatic Transmission
>>
40. Drive Motor with Generator Assembly Cleaning and Inspection - 1st Position
40. Drive Motor with Generator Assembly Cleaning and Inspection - 1st Position

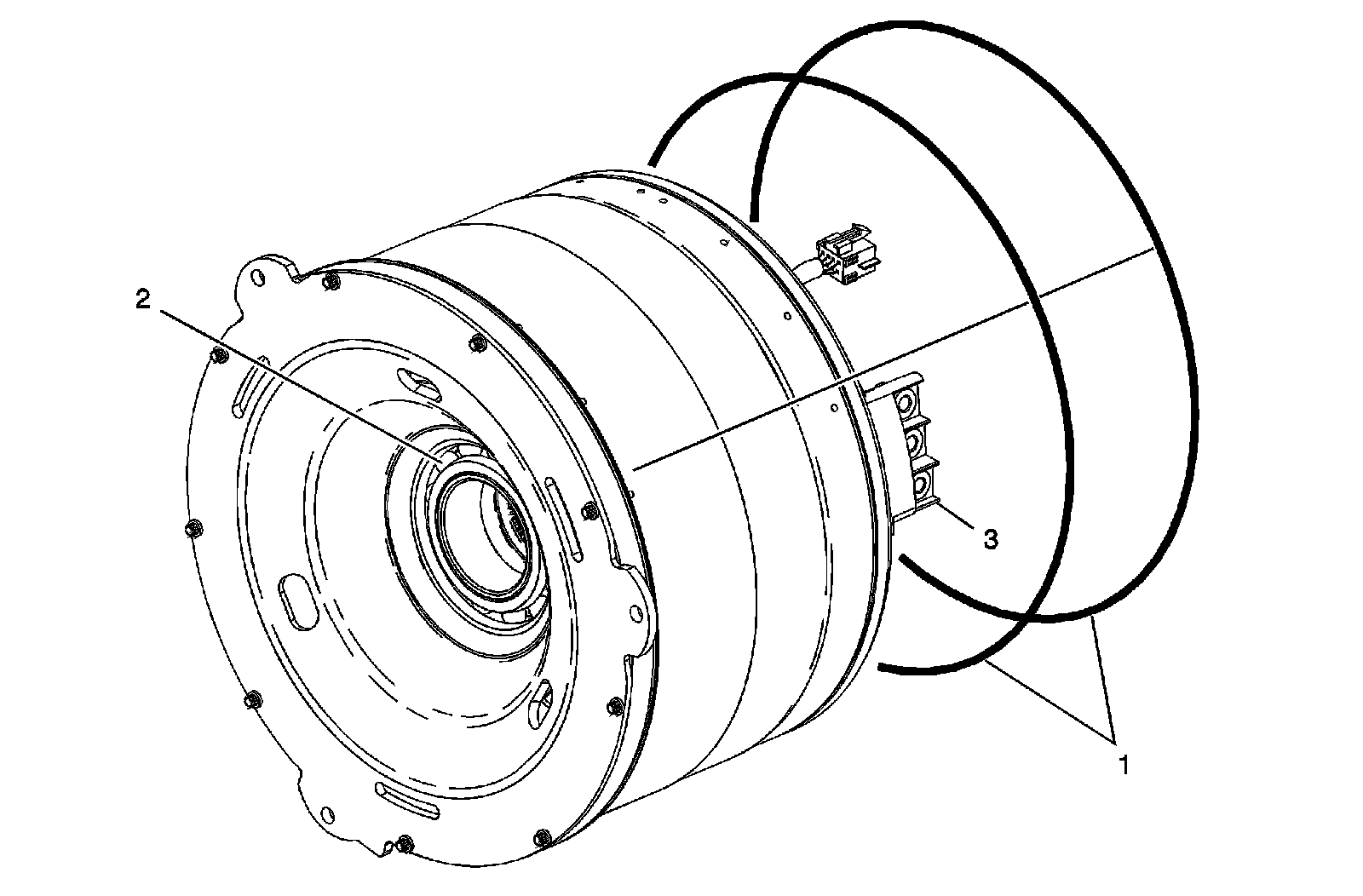

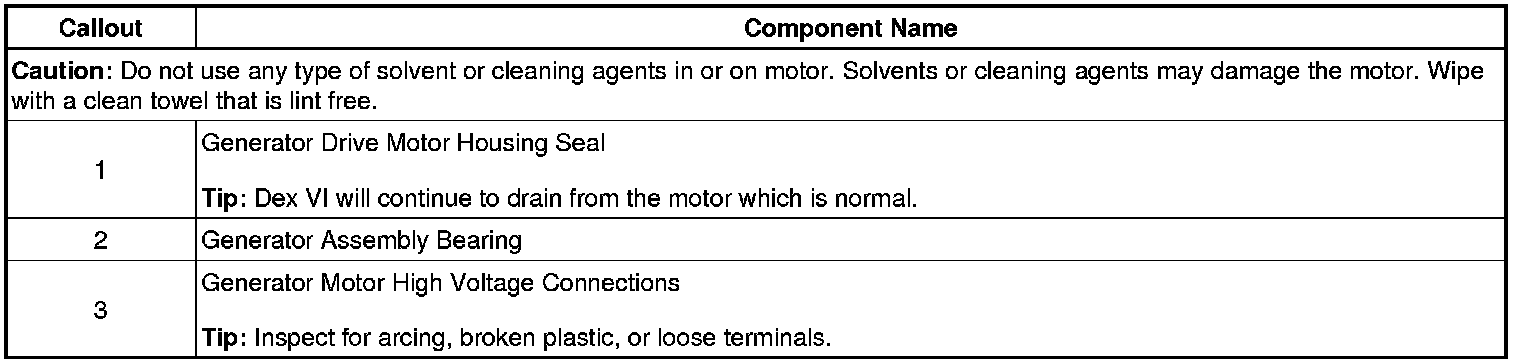

Drive Motor with Generator Assembly Cleaning and Inspection - 1st Position
