Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 2ML70 - Automatic Transmission >> 33. Output Speed Sensor and Case Extension Installation

33. Output Speed Sensor and Case Extension Installation

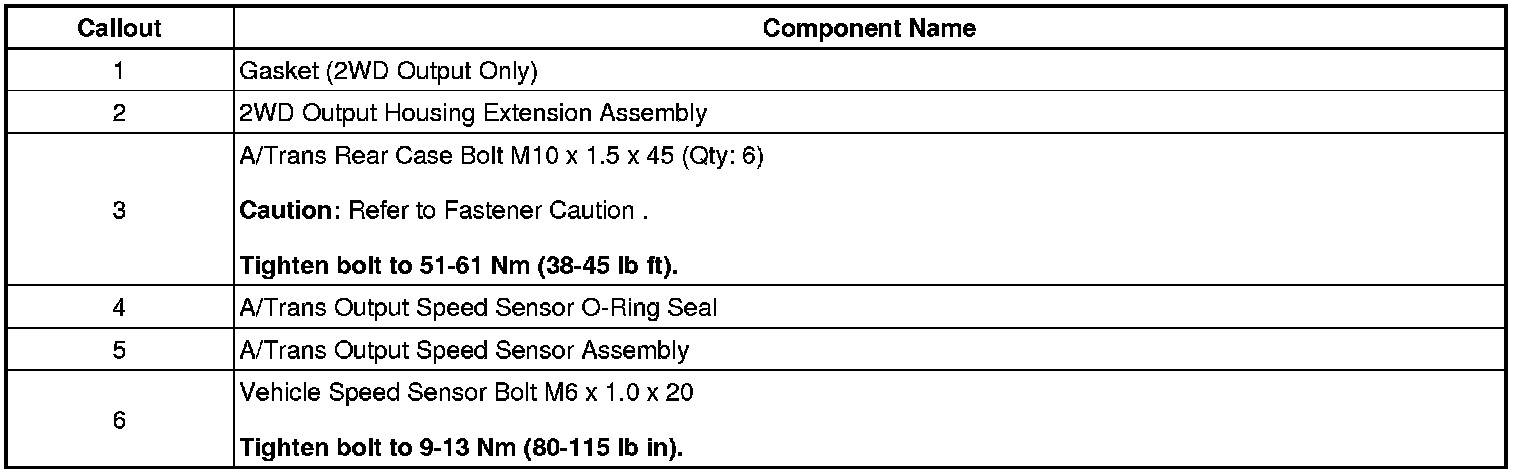

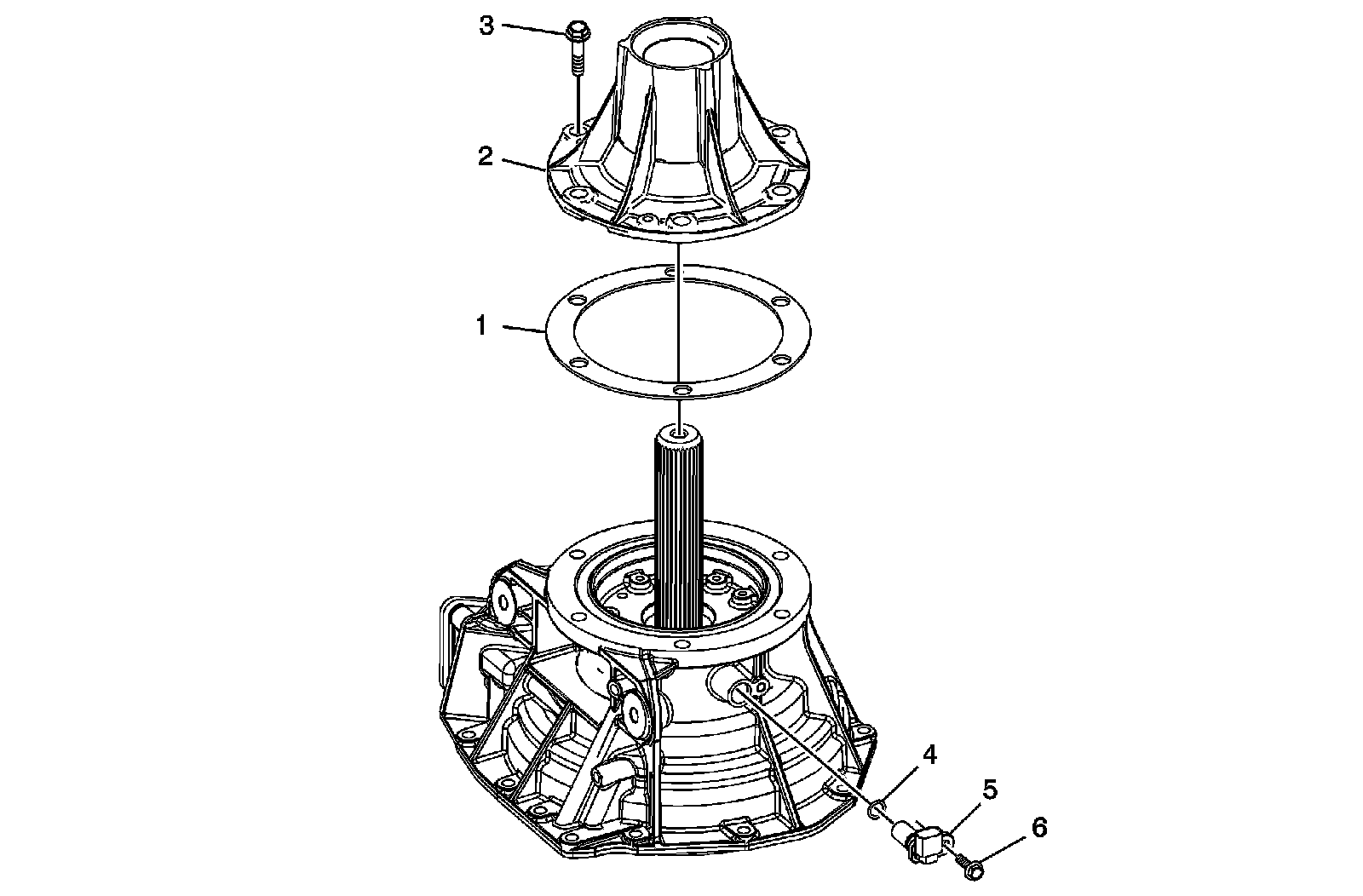

Output Speed Sensor and Case Extension Installation
