2ML70 - Automatic Transmission
>>

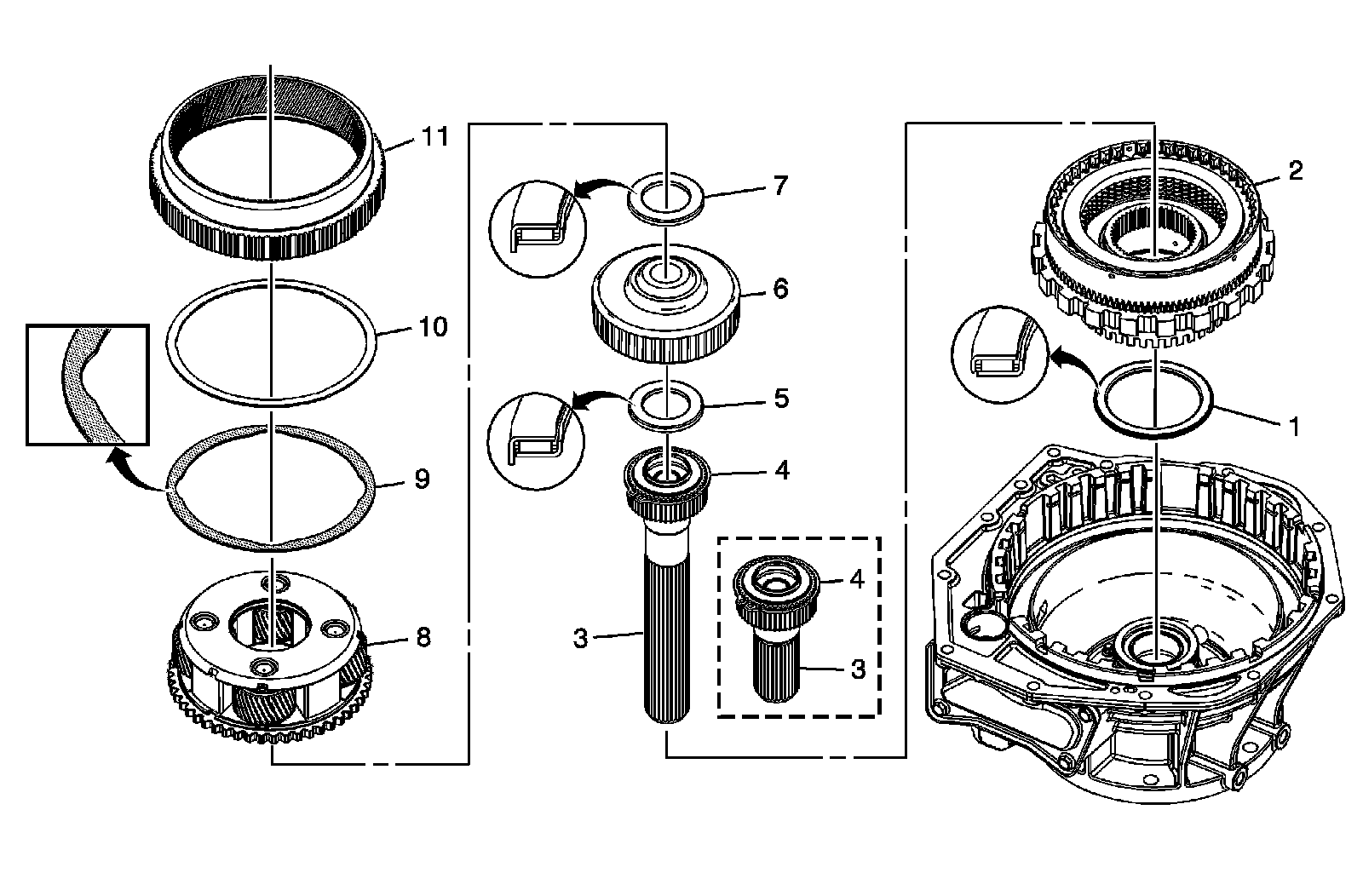

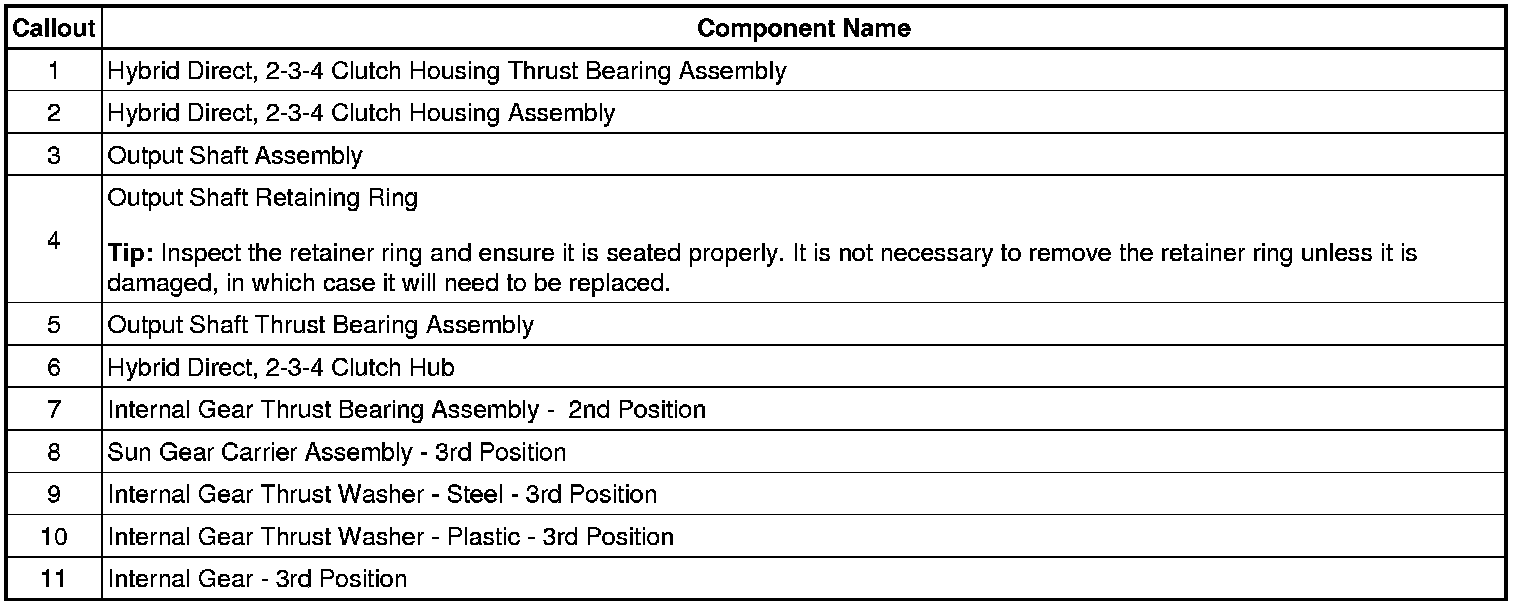

30. Sun Gear Carrier and Hybrid Direct, 2-3-4 Clutch Housing Installation
30. Sun Gear Carrier and Hybrid Direct, 2-3-4 Clutch Housing Installation
Sun Gear Carrier and Hybrid Direct, 2-3-4 Clutch Housing Installation
