Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 2ML70 - Automatic Transmission >> 26. Hybrid Direct, 2-3-4 Clutch Support Removal

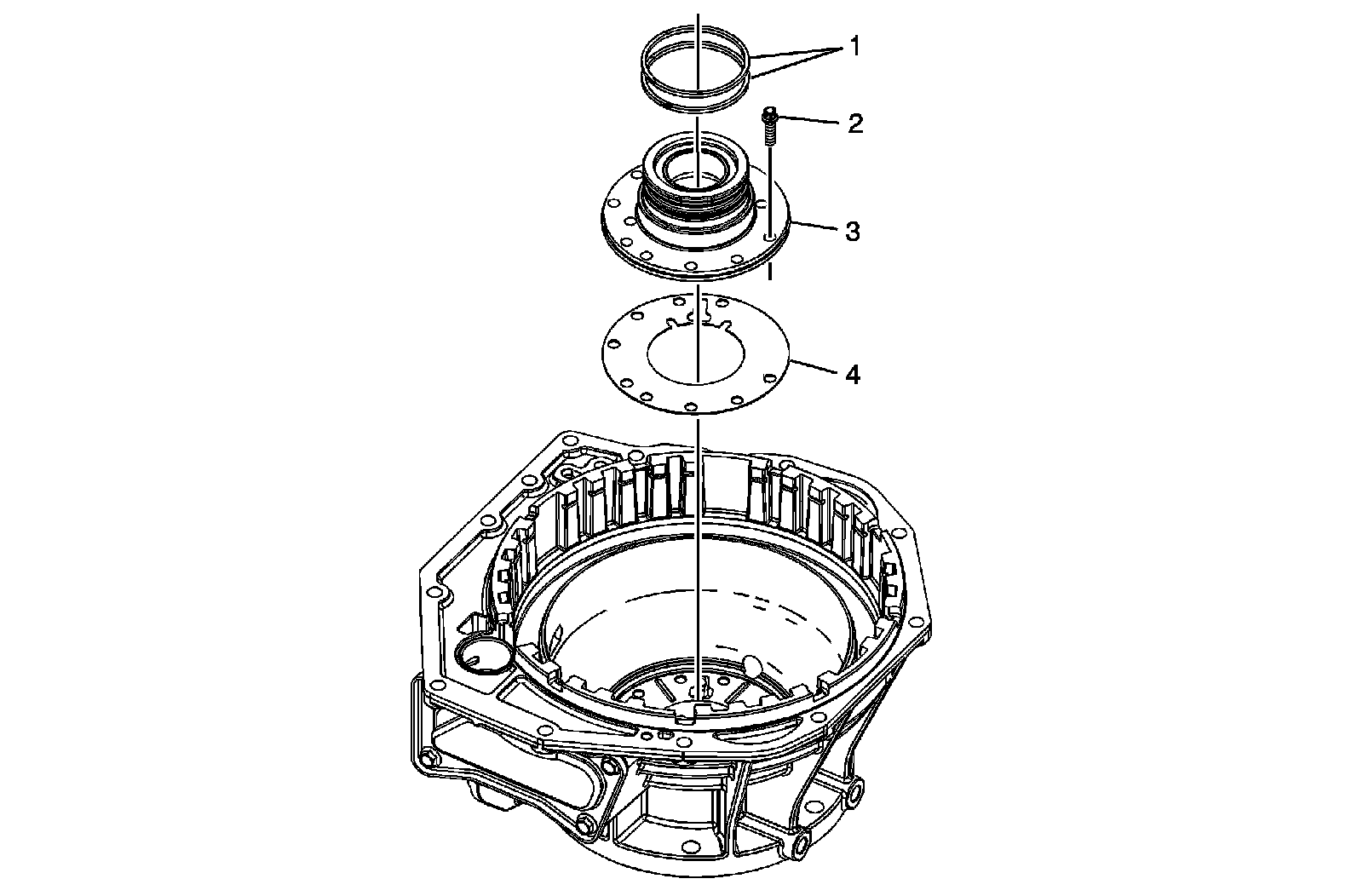

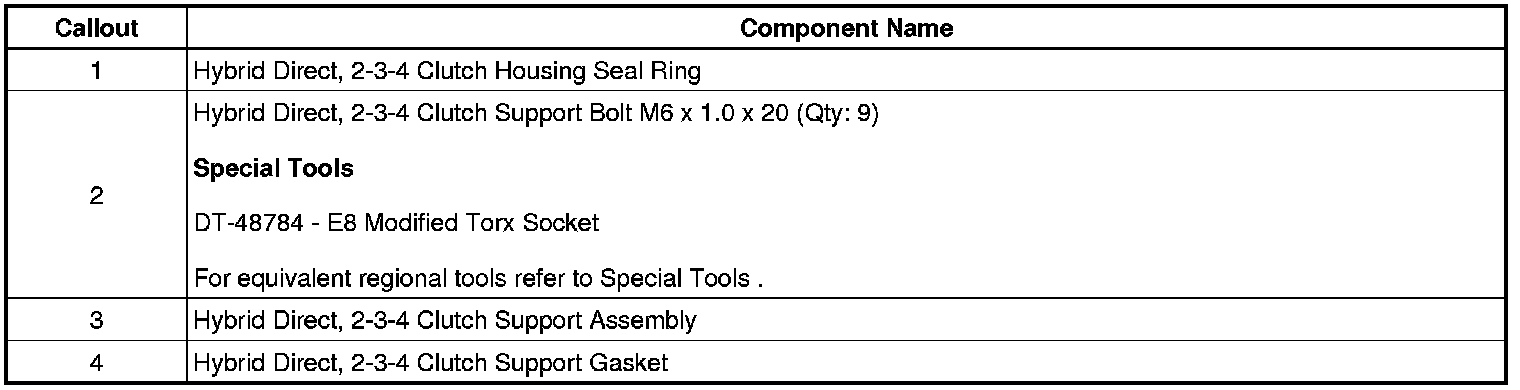

26. Hybrid Direct, 2-3-4 Clutch Support Removal




Hybrid Direct, 2-3-4 Clutch Support Removal
