Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 2ML70 - Automatic Transmission >> 24. Hybrid Low, 1-2 Clutch Piston Removal

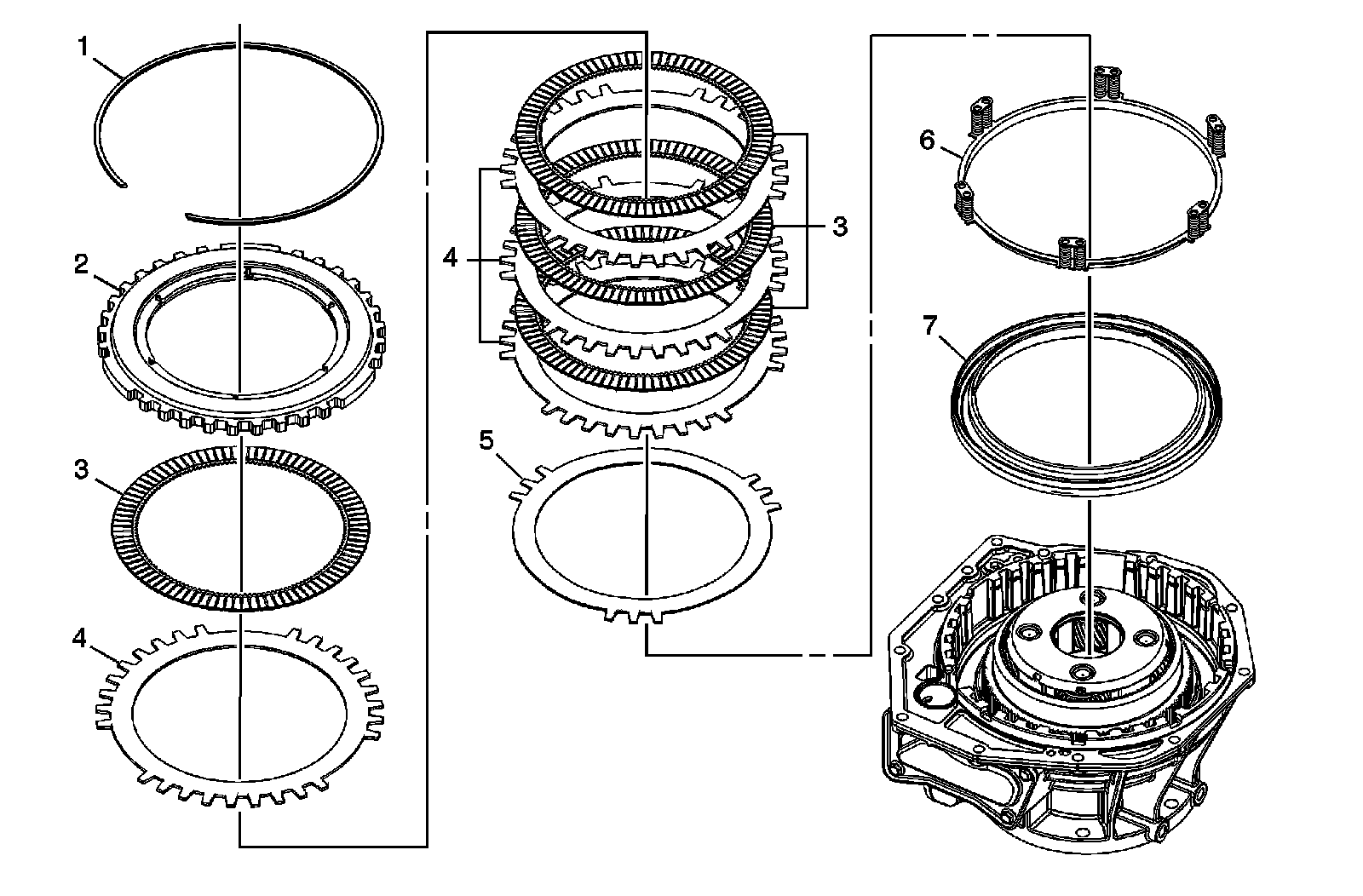

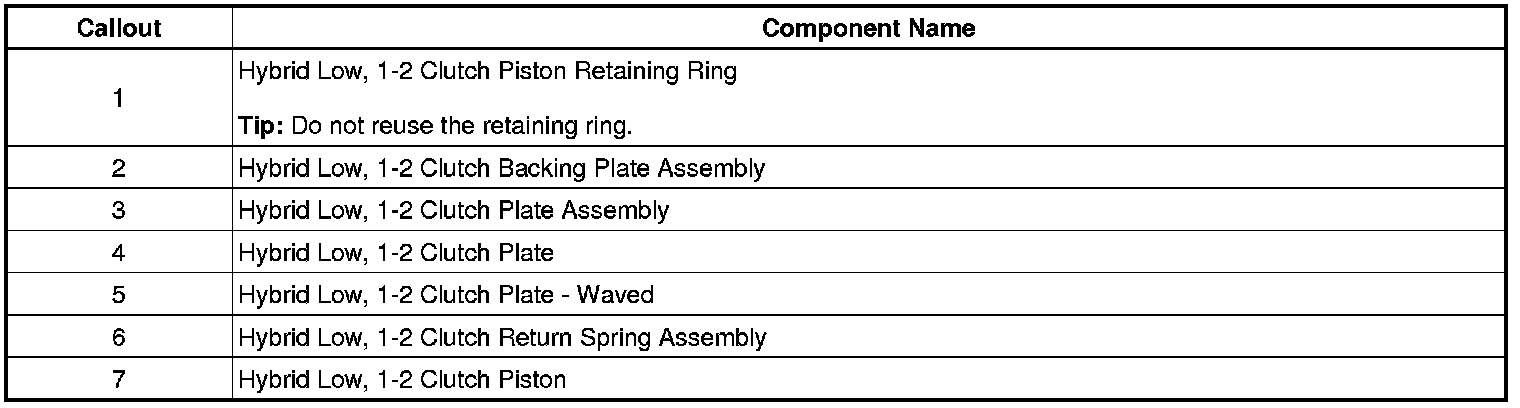

24. Hybrid Low, 1-2 Clutch Piston Removal




Hybrid Low, 1-2 Clutch Piston Removal
