21. Drive Motor with Generator Assembly Installation - 2nd Position

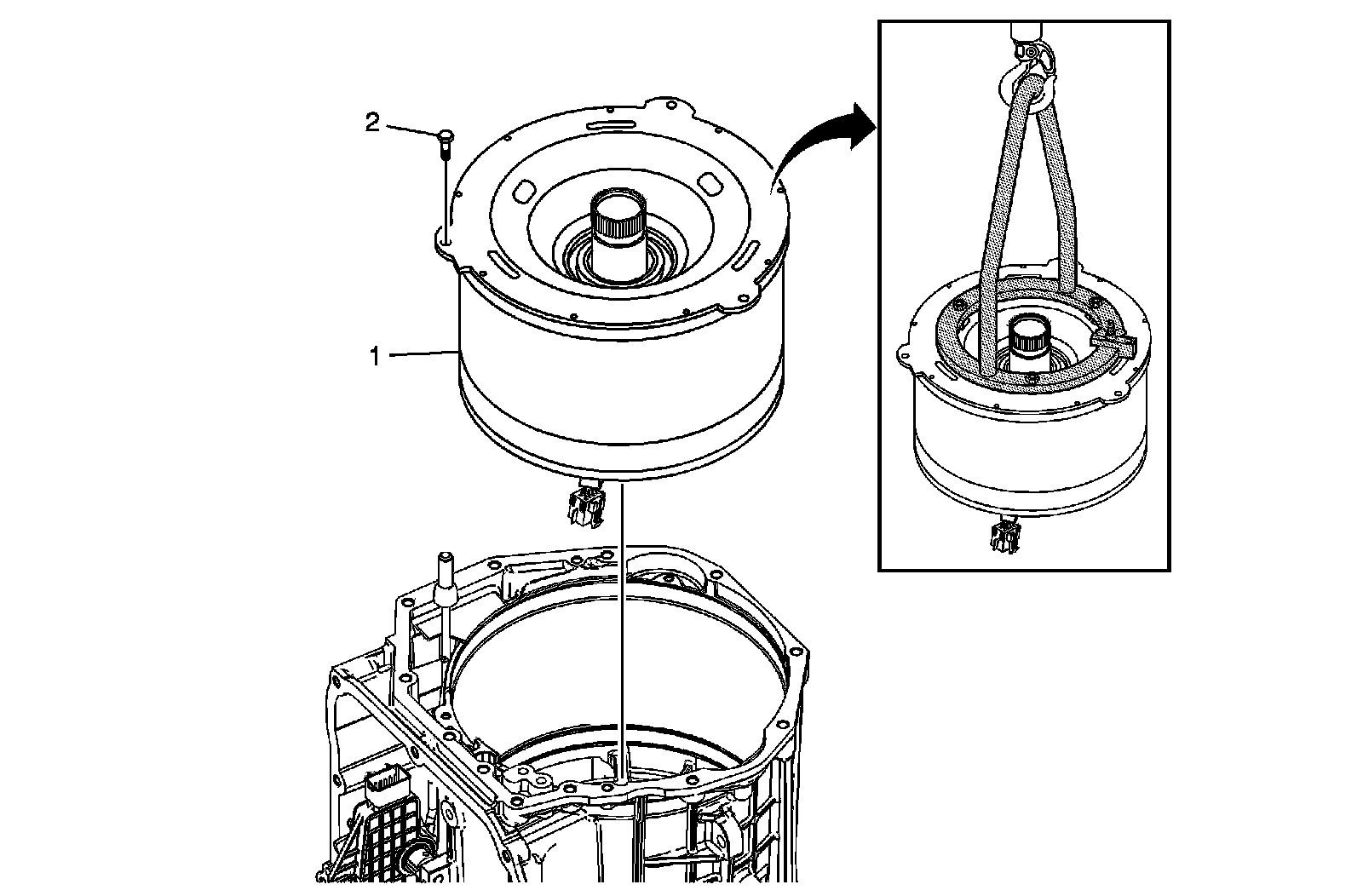

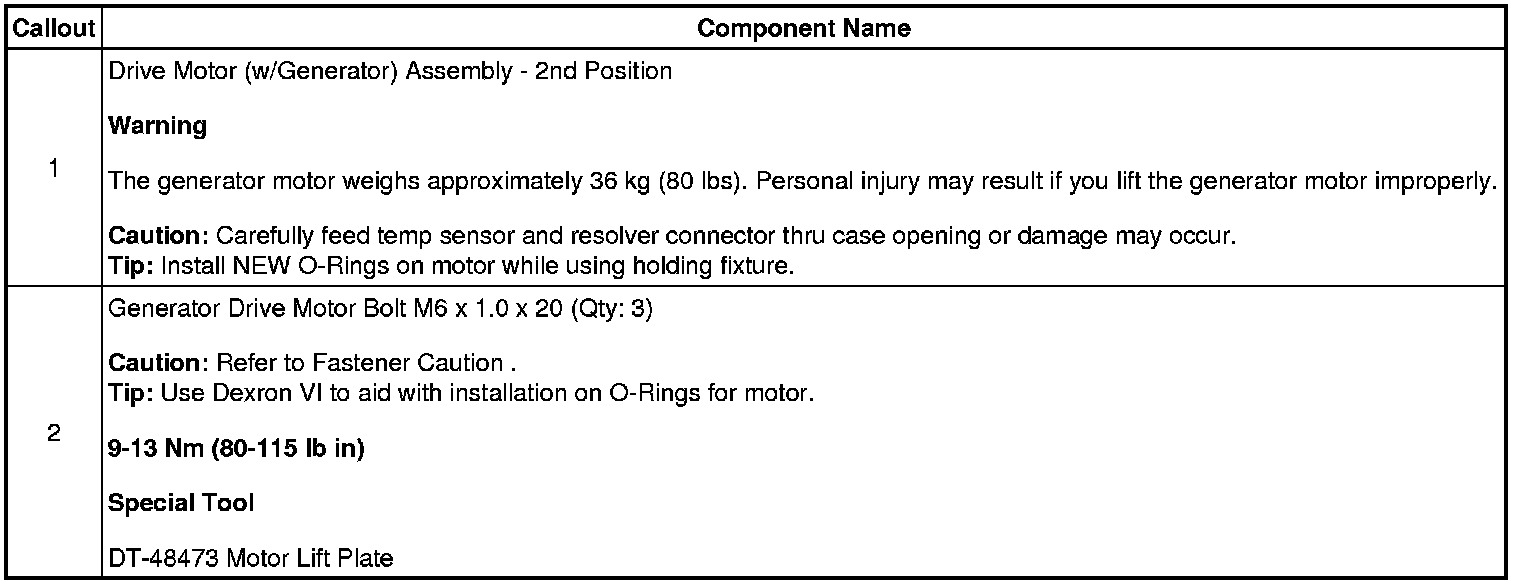

Drive Motor with Generator Assembly Installation - 2nd Position
