Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 2ML70 - Automatic Transmission >> 13. Drive Motor with Generator Assembly Removal - 2nd Position

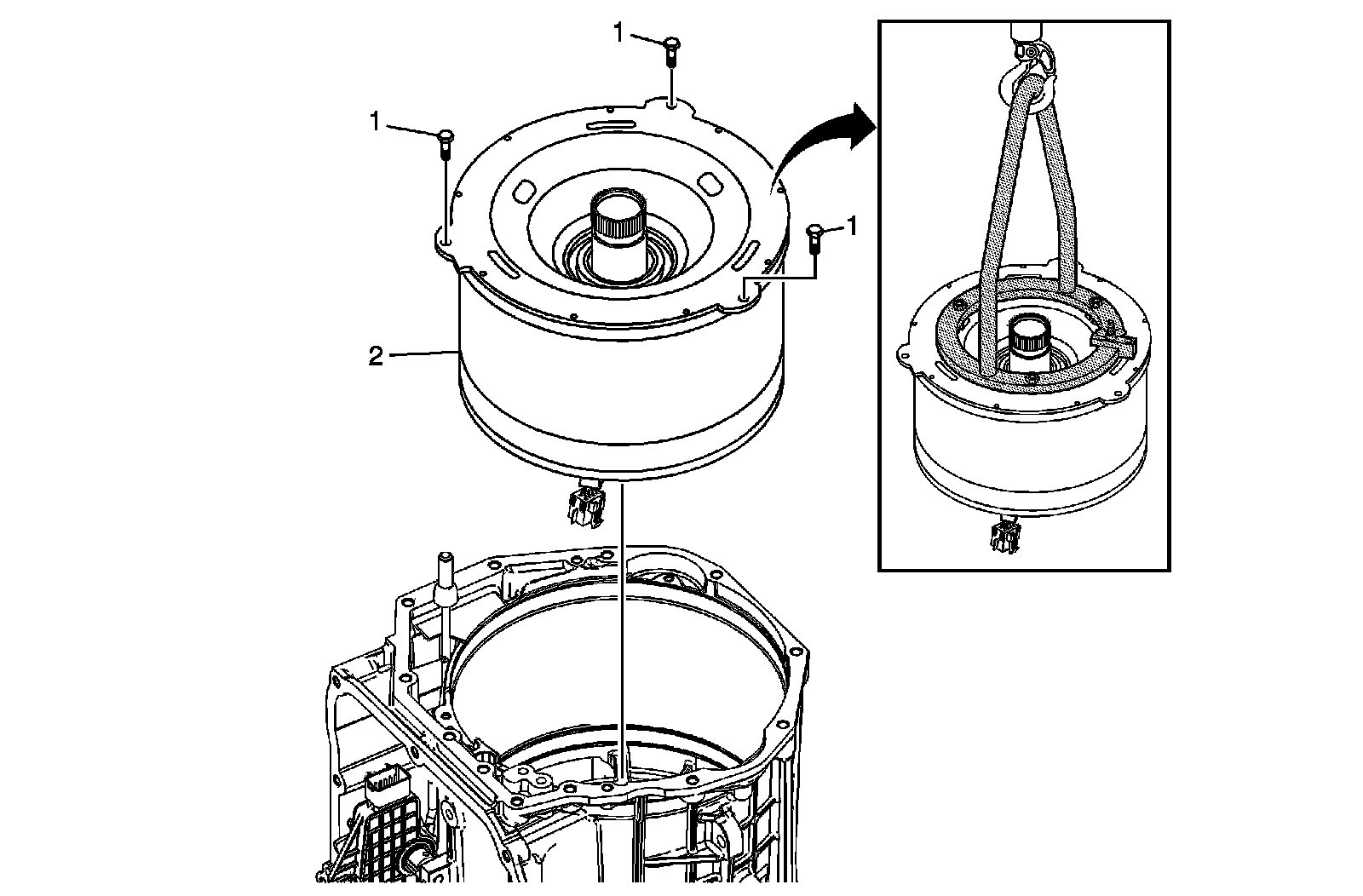

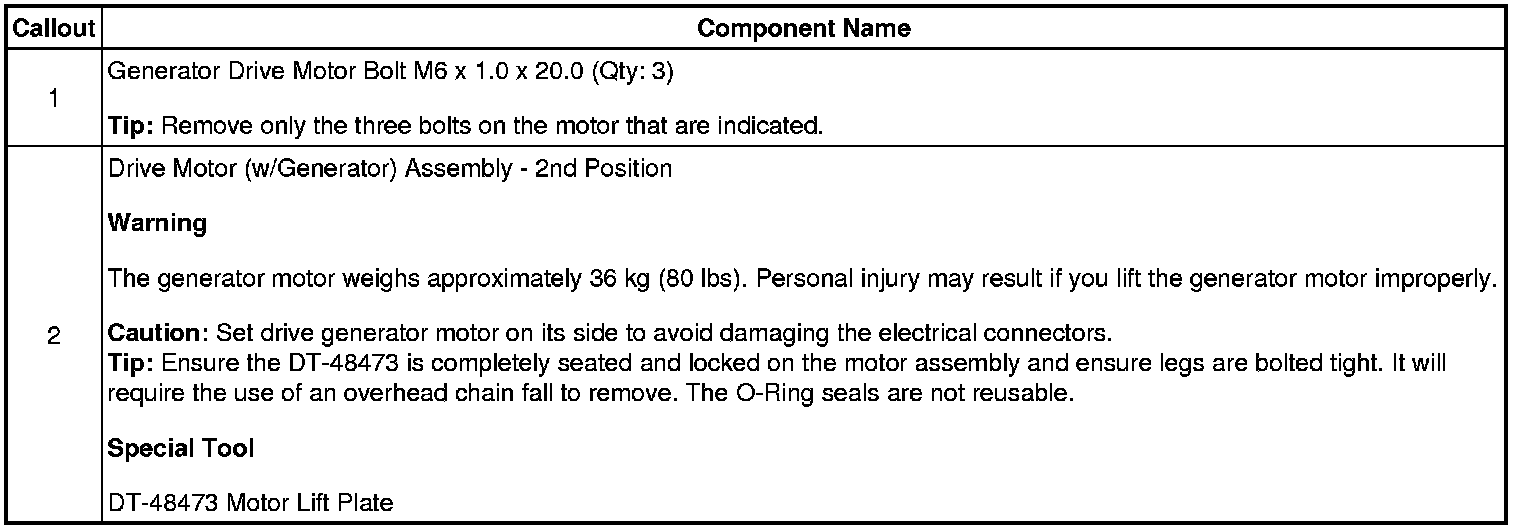

13. Drive Motor with Generator Assembly Removal - 2nd Position




Drive Motor with Generator Assembly Removal - 2nd Position
