Front Suspension

Jounce Bumper Replacement

Removal Procedure

Note: The following service procedure is for 2500 series vehicles.

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.
2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

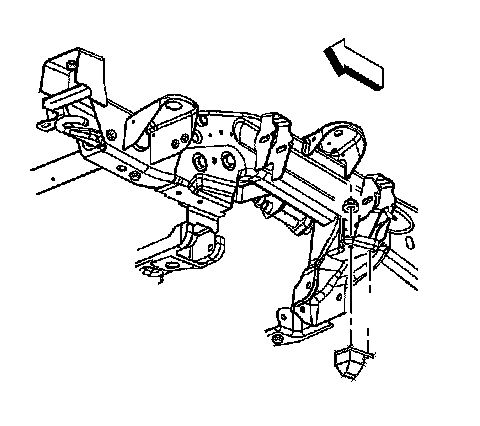

3. Remove the nut from the jounce bumper stud.
4. Remove the jounce bumper.

Installation Procedure




1. Install the jounce bumper.

Caution: Refer to Fastener Caution Fastener Caution.

2. Install the nut to the jounce bumper stud and tighten to 30 Nm (22 lb ft).
3. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.
4. Lower the vehicle.
