Power Steering Pressure Control Valve: Service and Repair

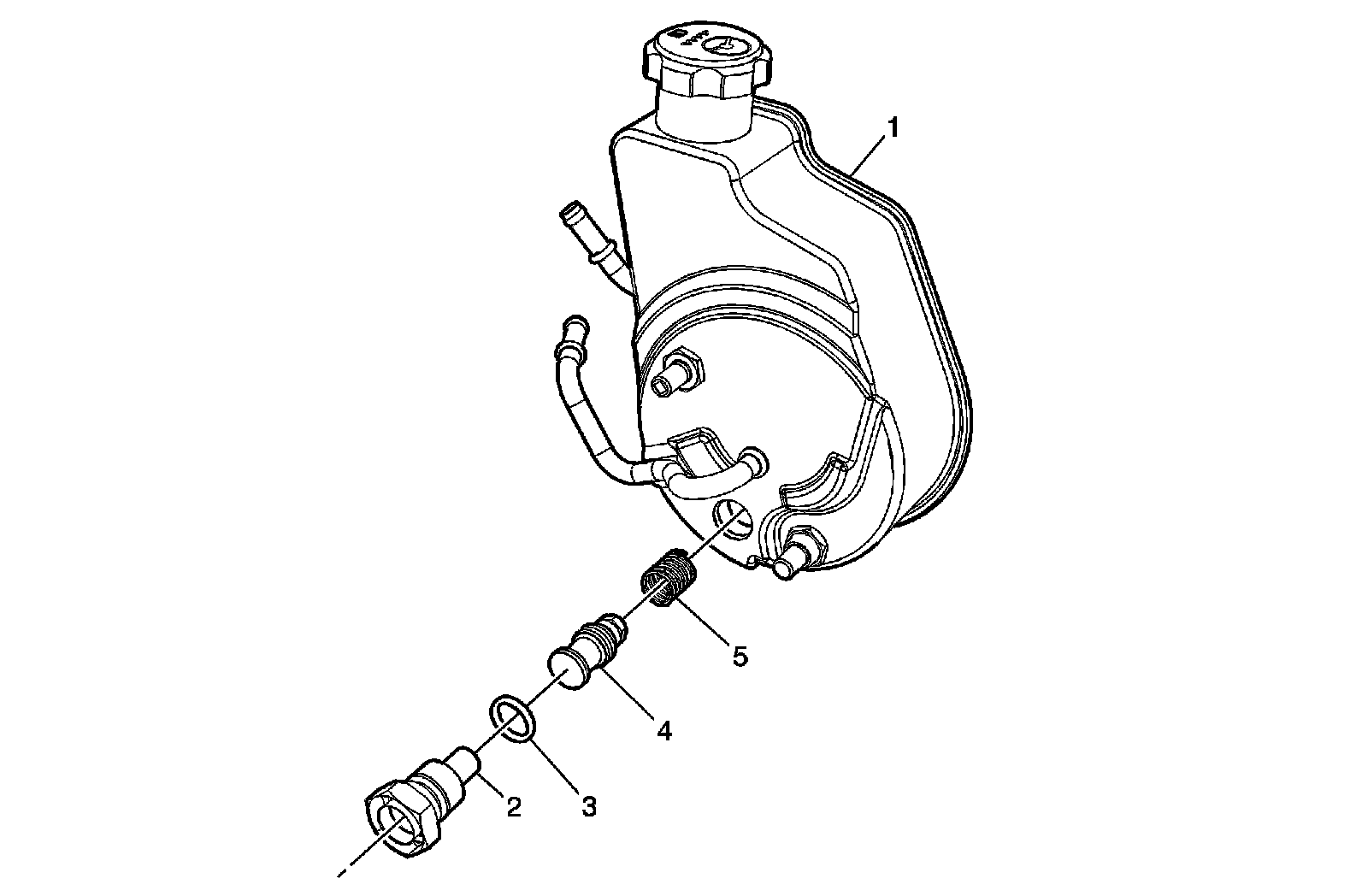

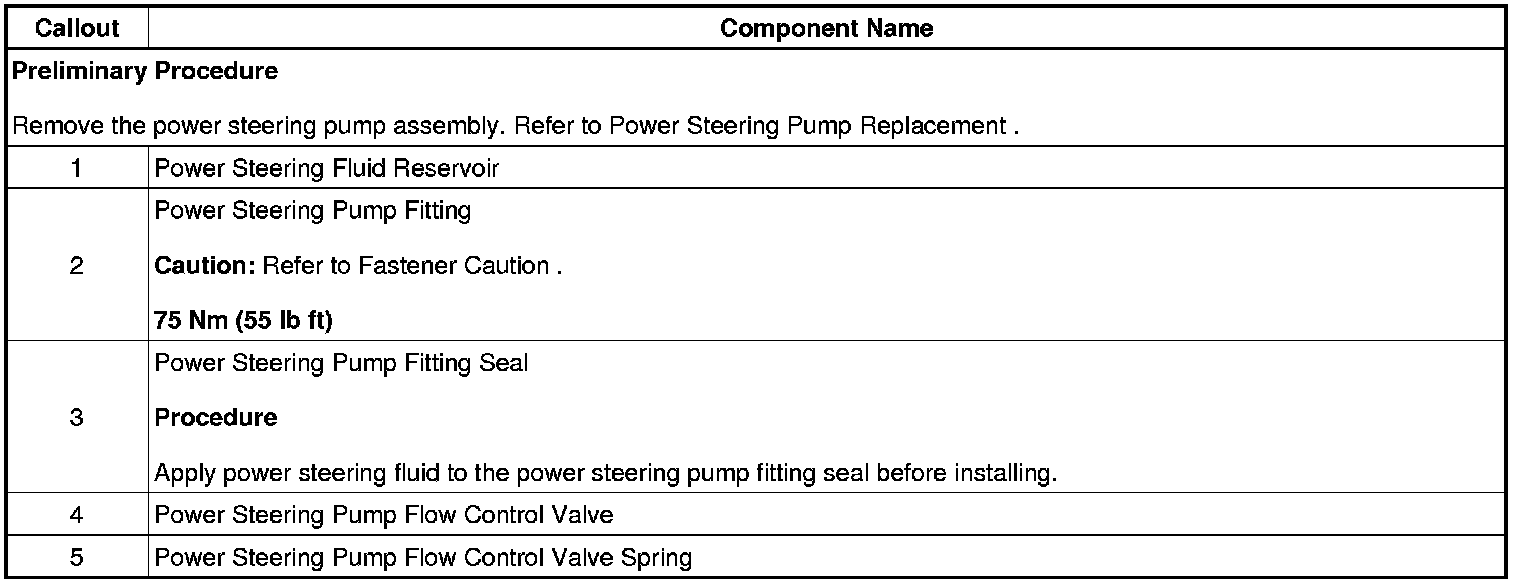

Power Steering Pump Flow Control Valve Replacement - Off Vehicle
