X320 Body Harness to Console Harness (AZ3 or A95)

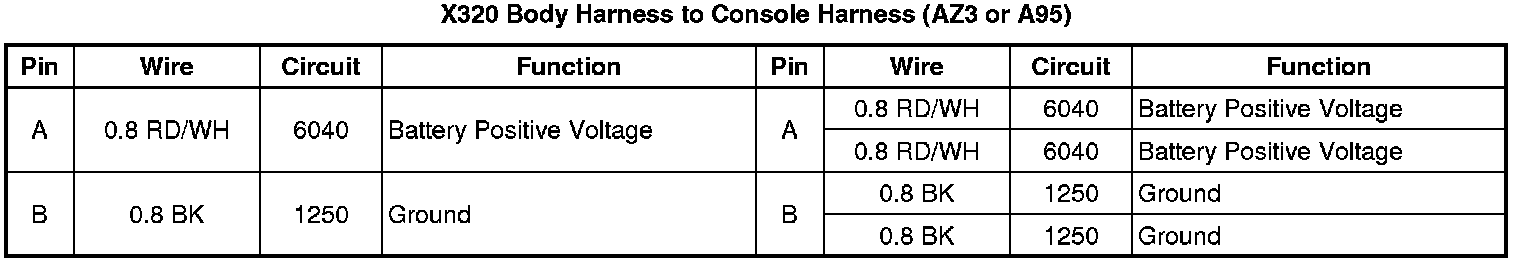

X320 Body Harness to Console Harness (AZ3 or A95)

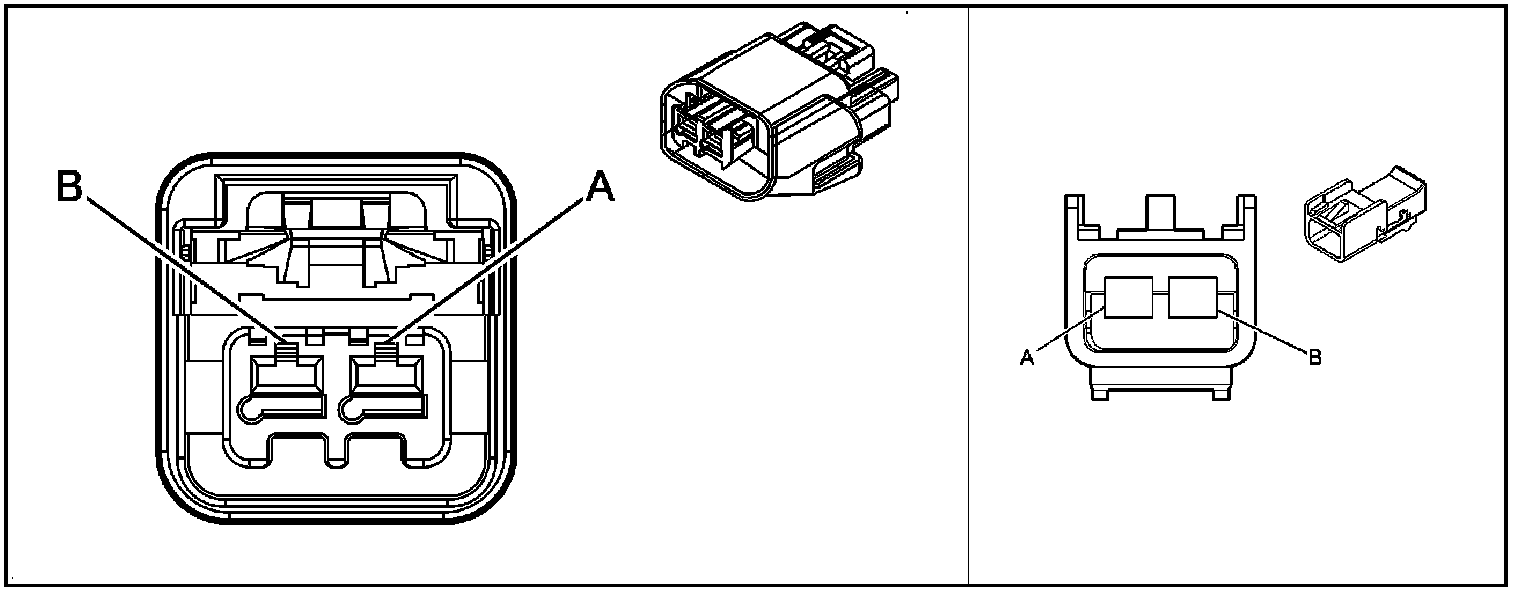

Inline Harness Connector End Views

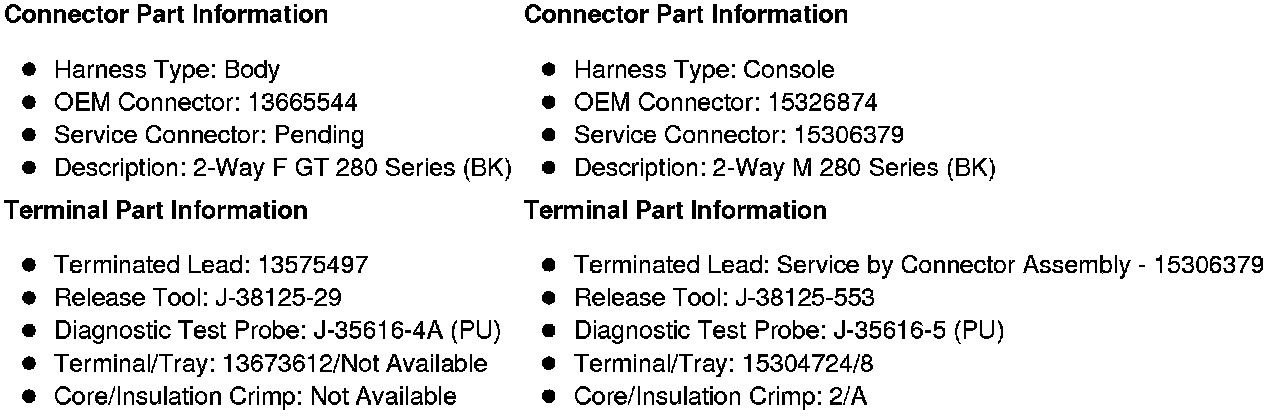

X320 Body Harness to Console Harness (AZ3 or A95)
