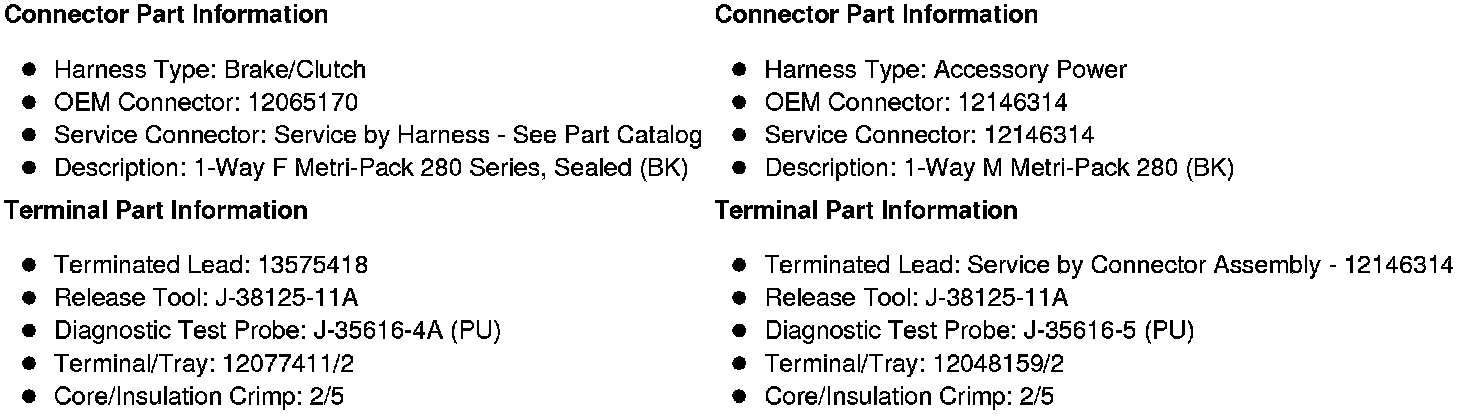

X219 Brake/Clutch Harness to Accessory Power Harness (6J1)
X219 Brake/Clutch Harness to Accessory Power Harness (6J1)

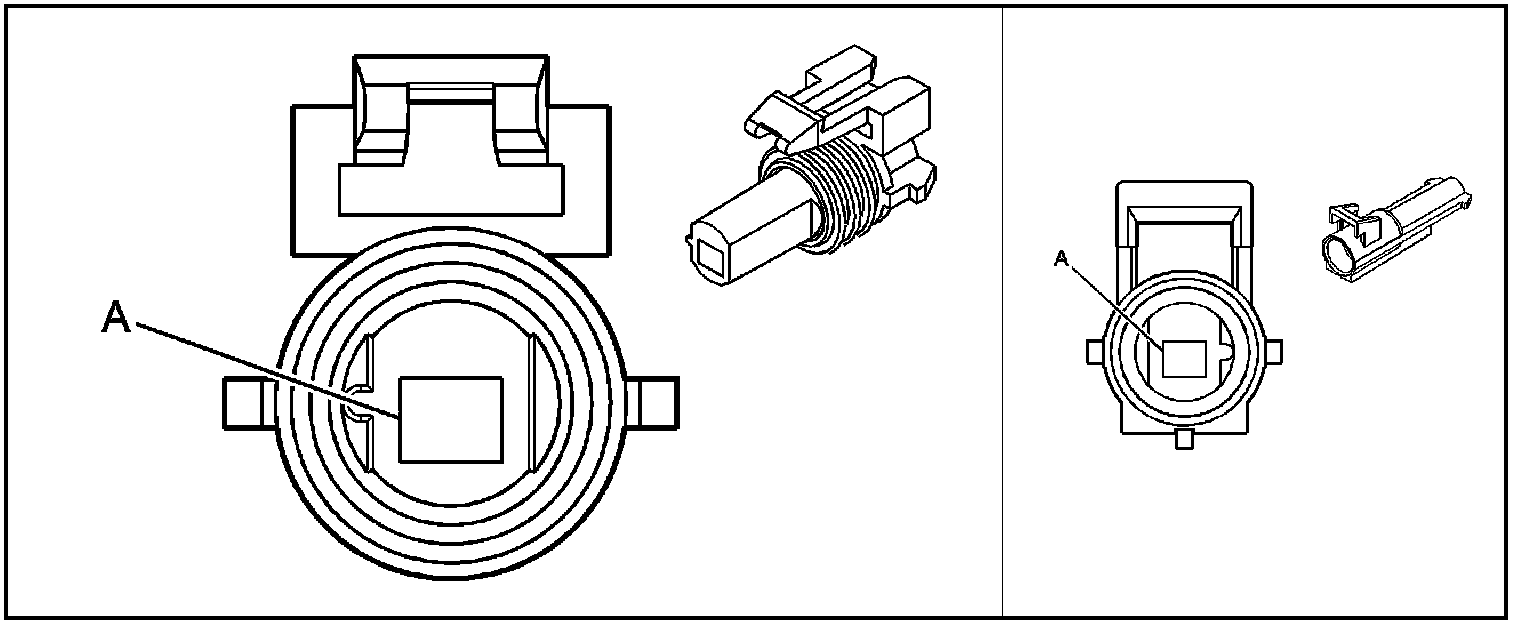

Inline Harness Connector End Views

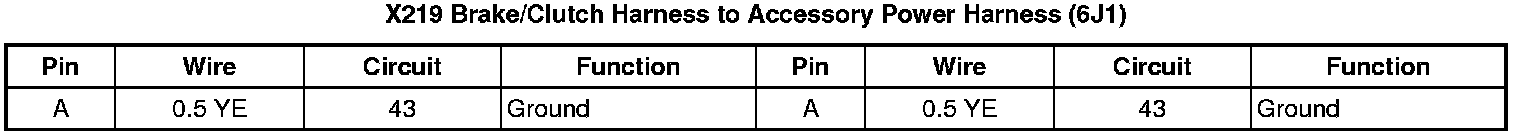

X219 Brake/Clutch Harness to Accessory Power Harness (6J1)
