Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X100 - X199 >> X117 Instrument Panel Harness to Chassis Harness (BRS or UFT)

X117 Instrument Panel Harness to Chassis Harness (BRS or UFT)

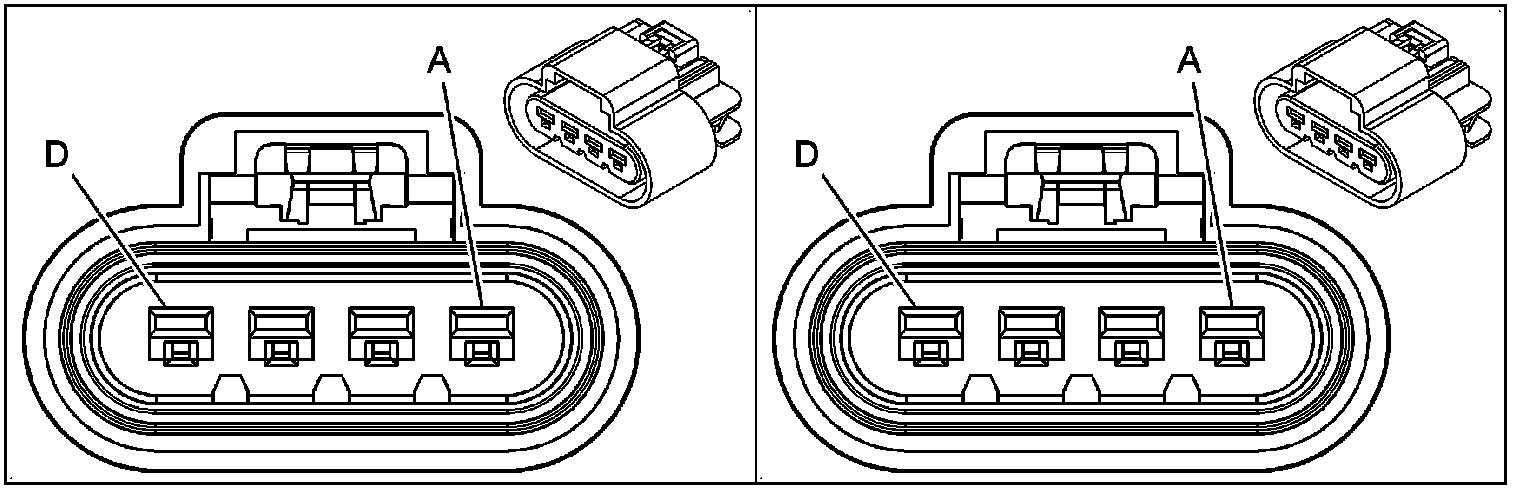

Inline Harness Connector End Views

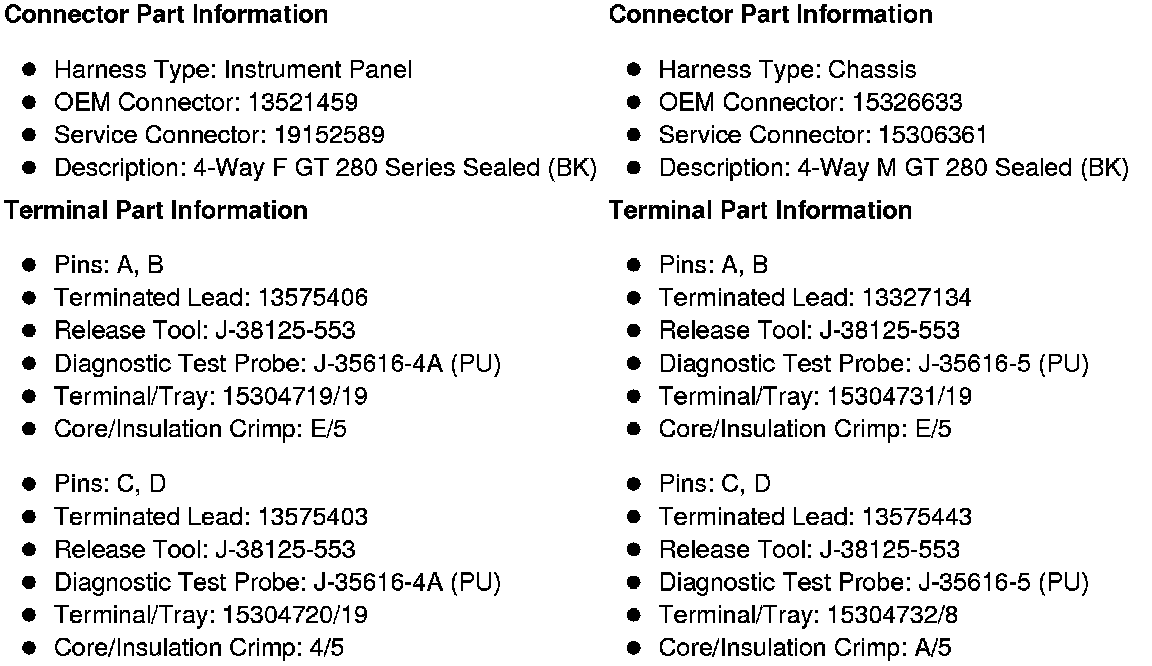

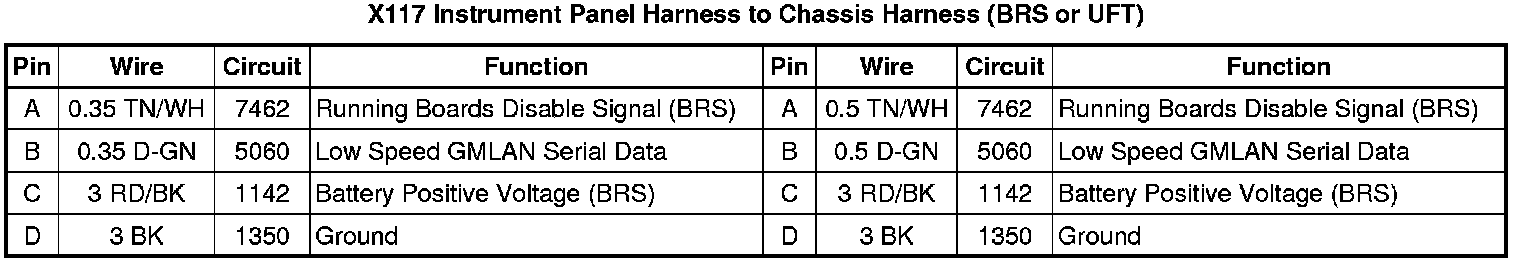

X117 Instrument Panel Harness to Chassis Harness (BRS or UFT)
