Front Drive Axle Actuator (NQH or NP0)
Front Drive Axle Actuator (NQH or NP0)

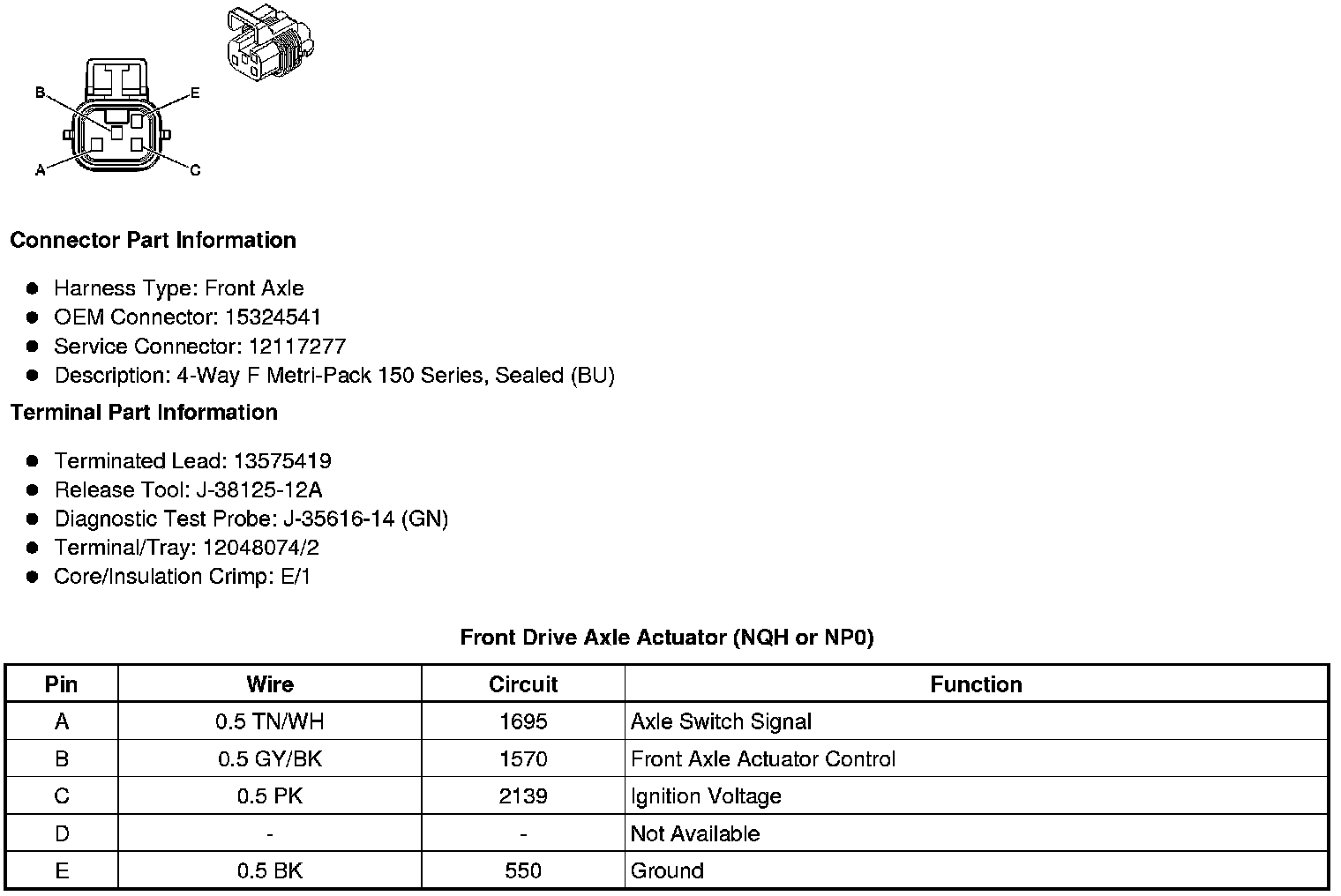

Component Connector End Views
Front Drive Axle
Actuator
(NQH or NP0)
