Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Name >> Digital Radio Receiver X1

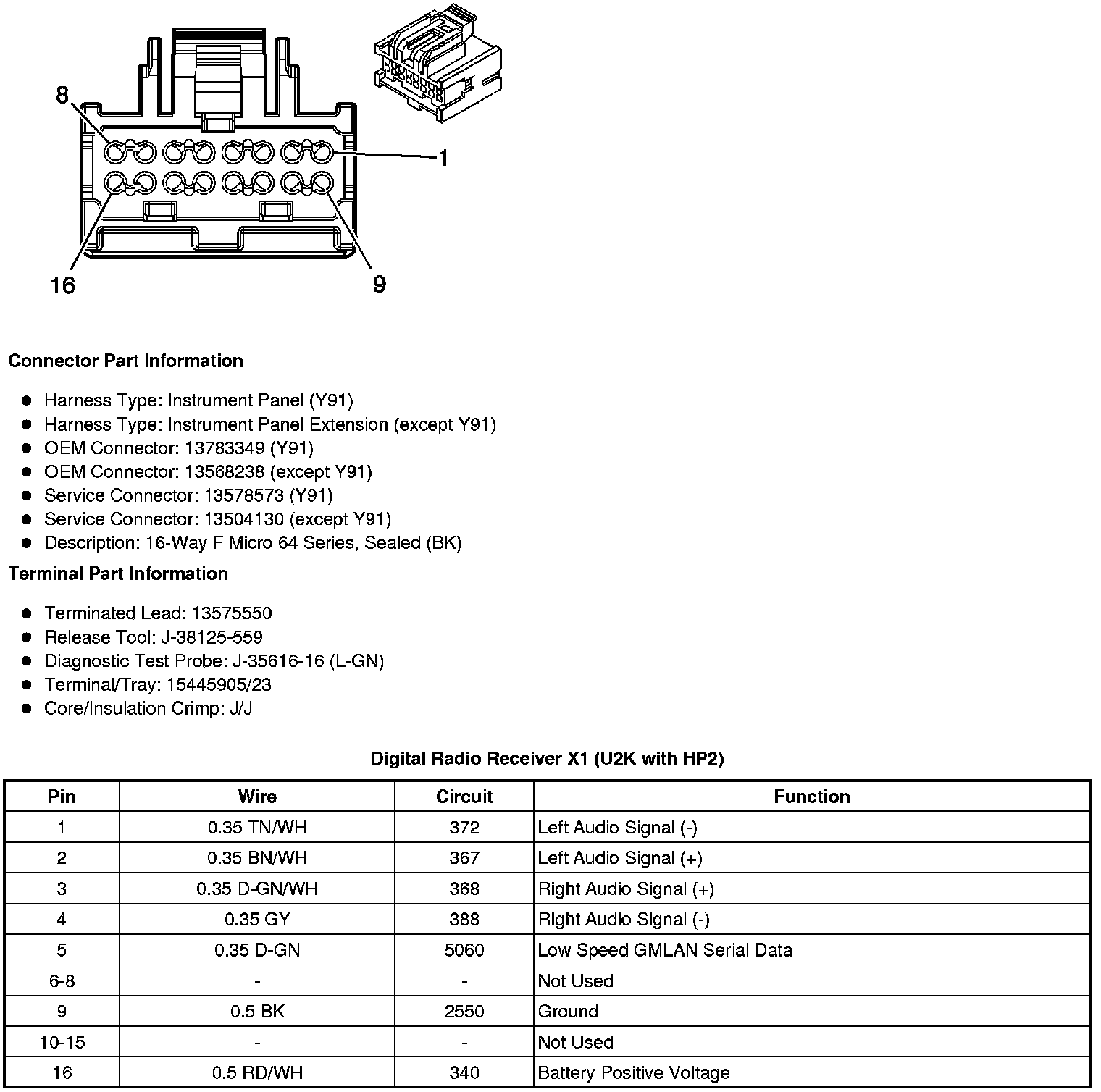

Digital Radio Receiver X1




Component Connector End Views

Digital Radio Receiver X1 (U2K with HP2)
