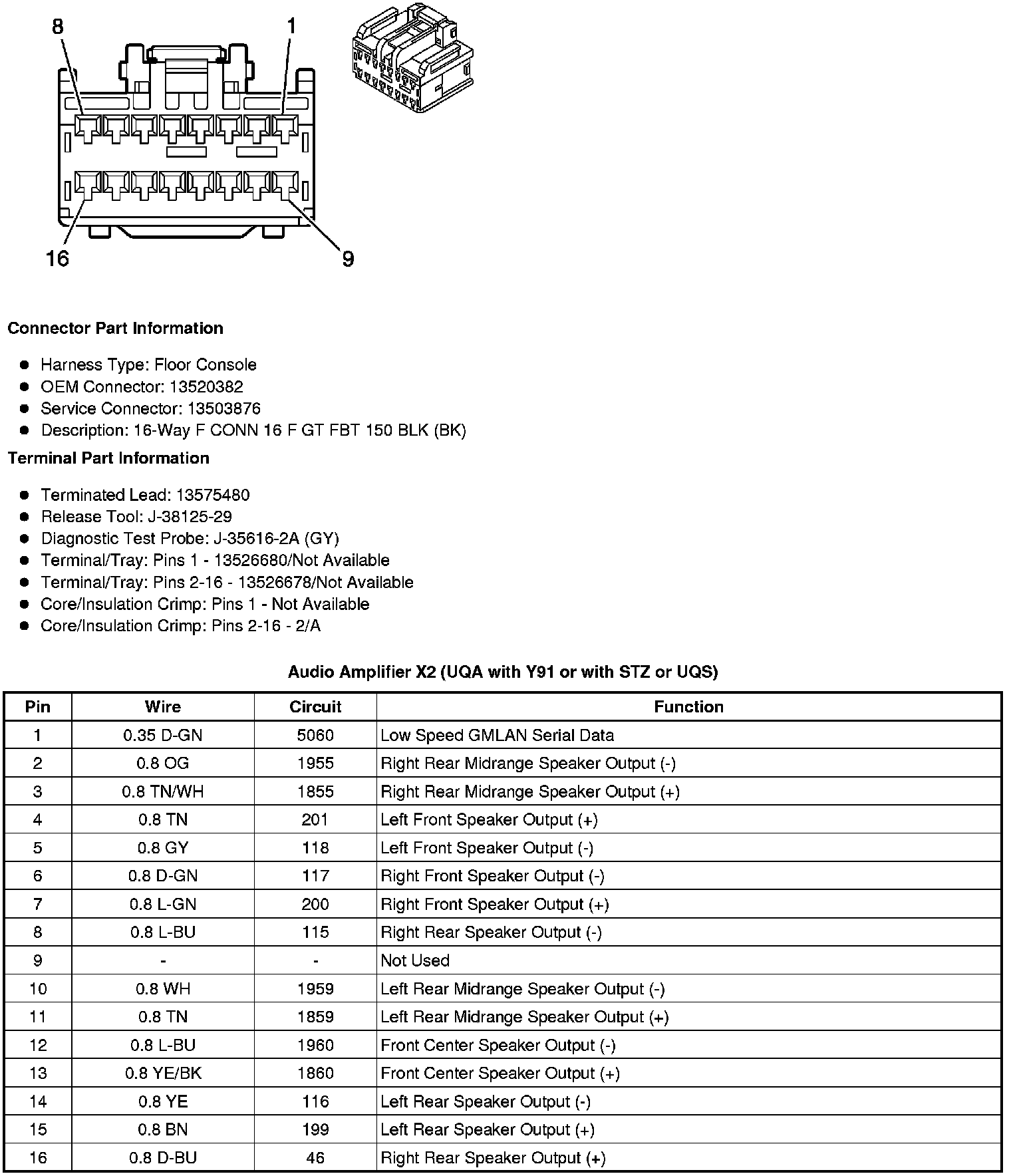

Audio Amplifier X2 (UQA with Y91 or with STZ or UQS)
Audio Amplifier X2 (UQA with Y91 or with STZ or UQS)
Component Connector End Views
Audio Amplifier X2 (UQA with Y91 or with STZ or UQS)
