Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Service and Repair >> Front Wheel Speed Sensor Replacement >> Non-Hybrid Greater Than/Equal to 3900 KG (8600 Lb) GVW

Non-Hybrid Greater Than/Equal to 3900 KG (8600 Lb) GVW

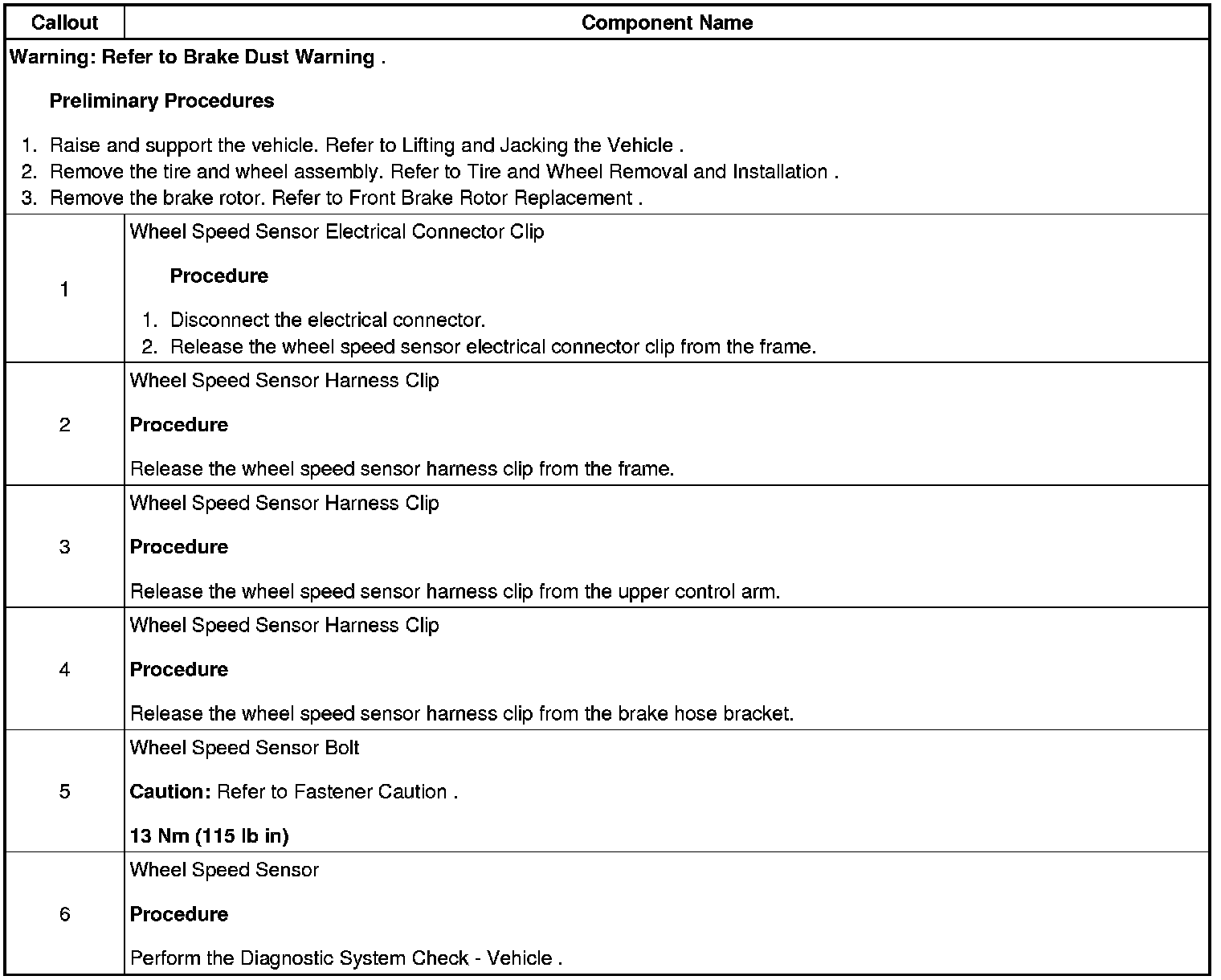

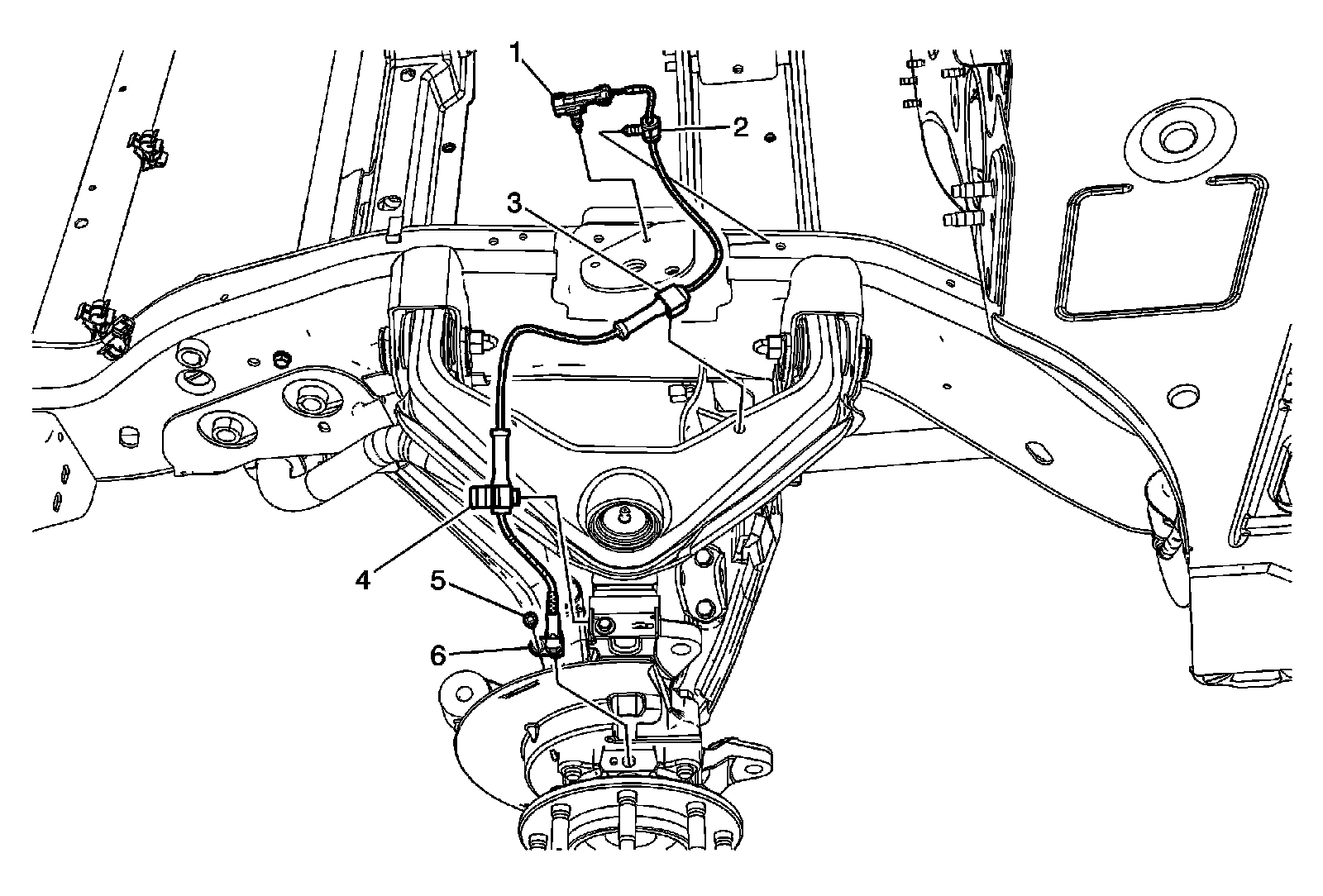

Front Wheel Speed Sensor Replacement
