Inflatable Restraint Side Impact Module - Right Front

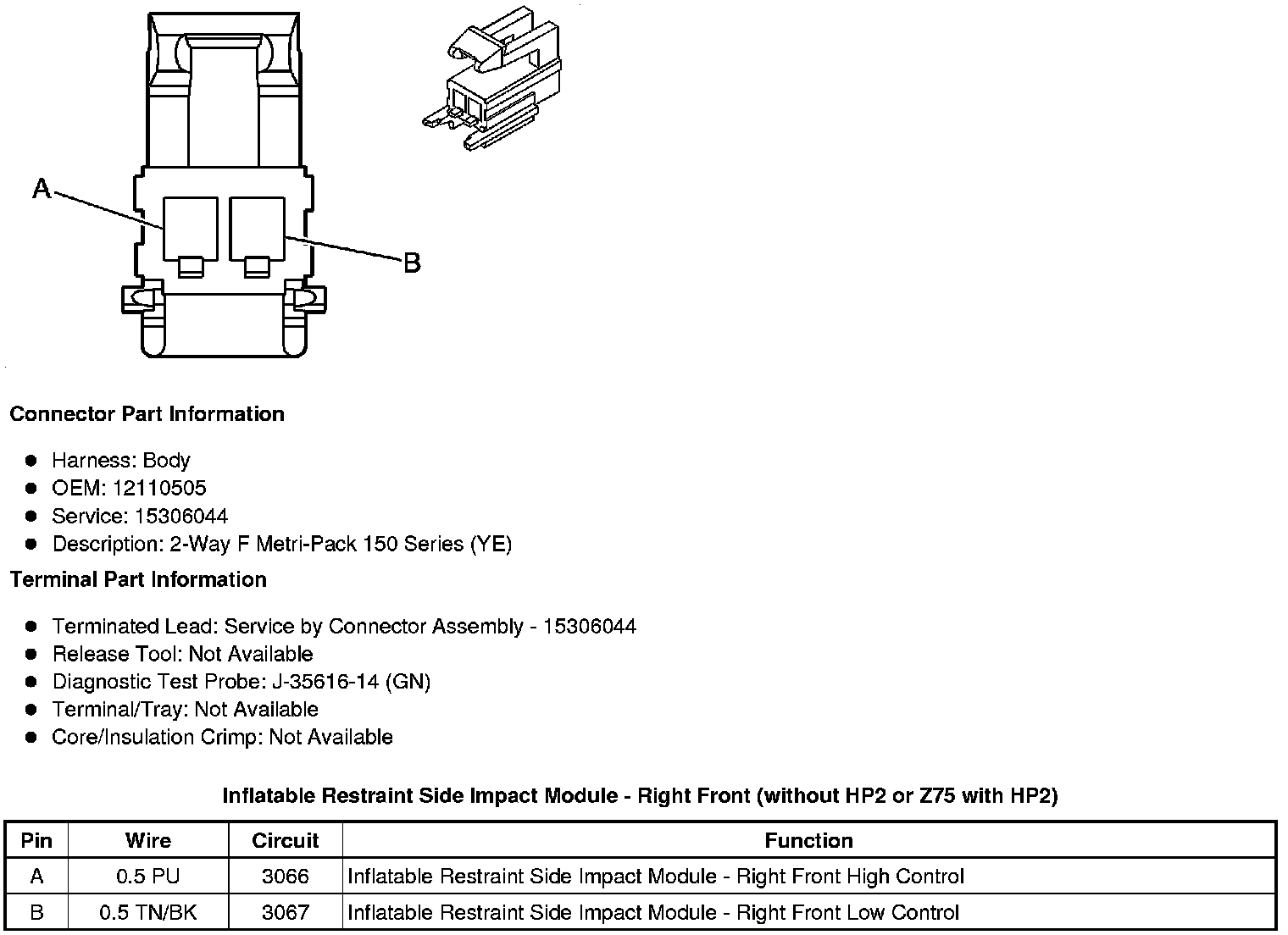

Component Connector End Views

Inflatable Restraint Side Impact Module - Right Front (without HP2 or Z75 with HP2)
