Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Block/Orifice Tube >> Service and Repair >> Expansion (Orifice) Tube Replacement

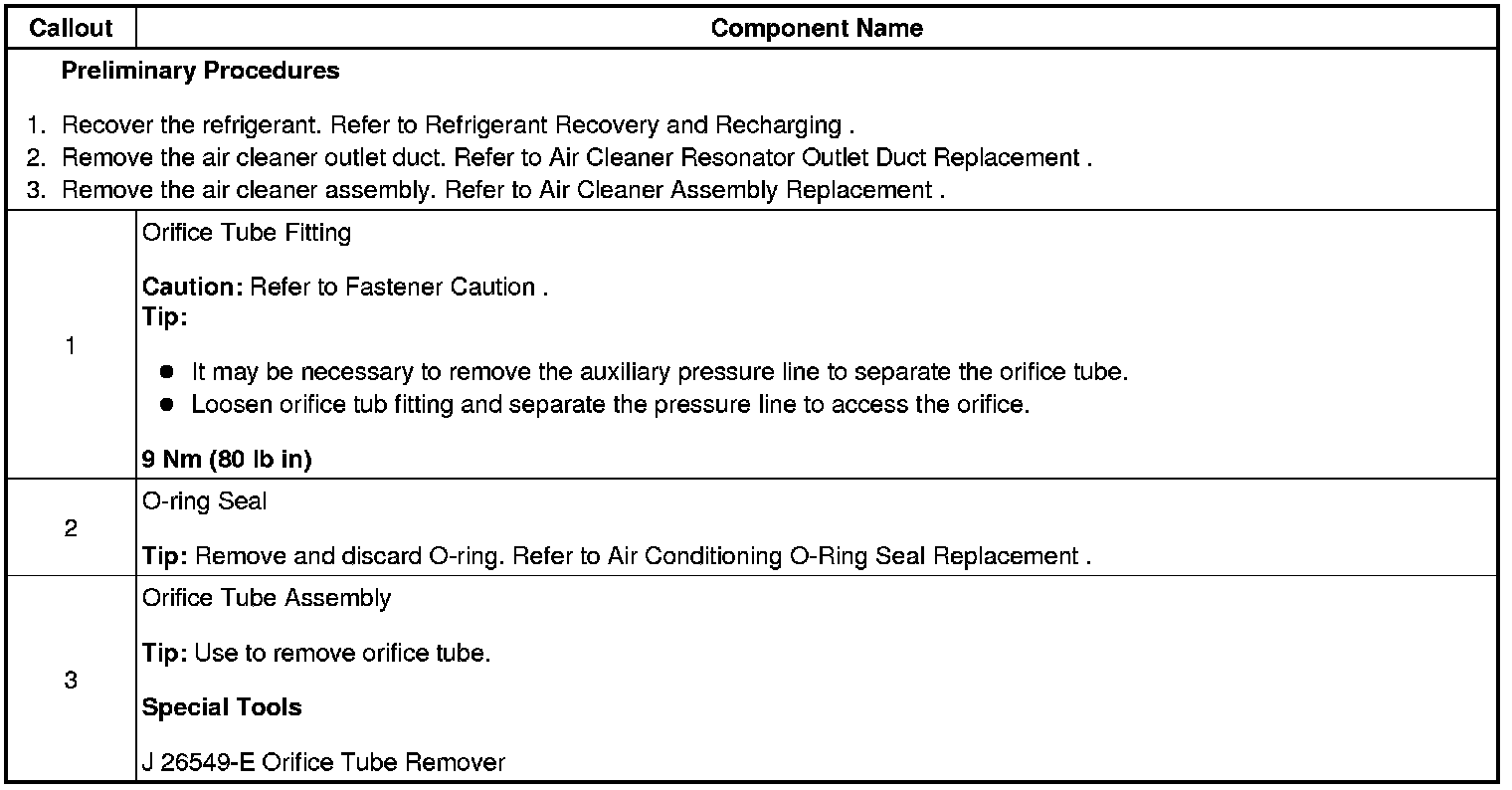

Expansion (Orifice) Tube Replacement




Expansion (Orifice) Tube Replacement
