Engine Mount Bracket Replacement - Right Side

Engine Mount Bracket Replacement - Right Side

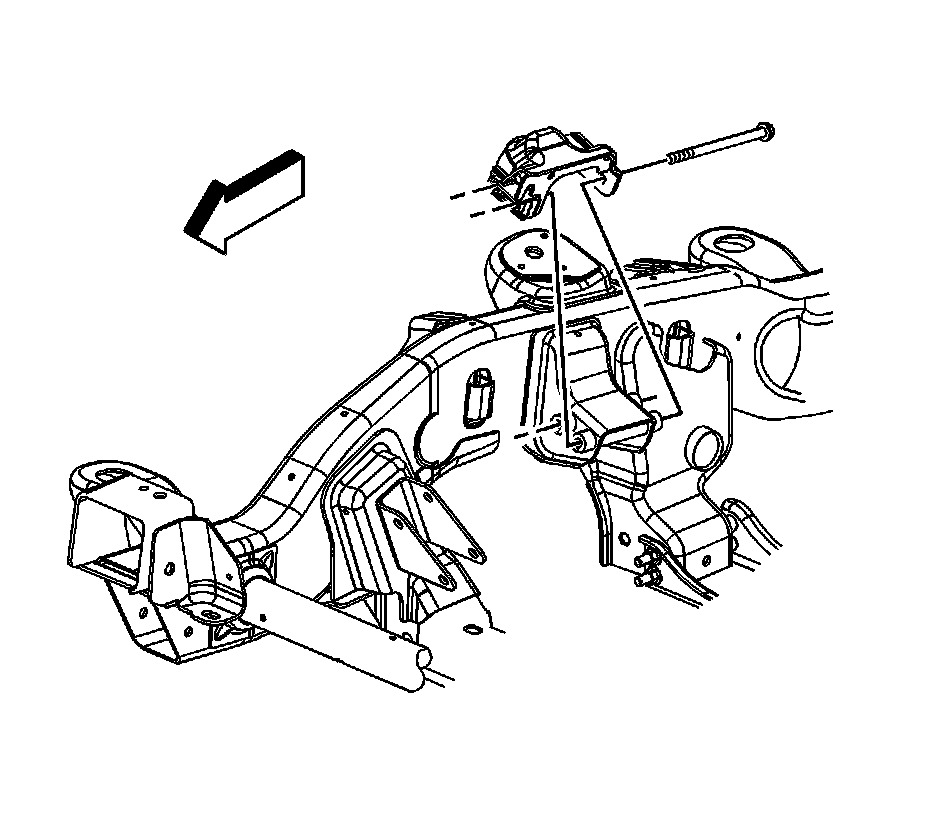

Removal Procedure




1. Remove the engine mount. Refer to Engine Mount Replacement - Right Side .
2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure




1. Position the engine mount bracket to the frame.
2. Perform the following steps prior to installing the engine mount bracket bolts.

* Remove all traces of the original adhesive patch.
* Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
* Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the bolts.

Caution: Refer to Fastener Caution Fastener Caution.

3. Install the engine mount bracket bolts.

Tighten the bolts to 65 Nm (48 lb ft).

4. Install the engine mount. Refer to Engine Mount Replacement - Right Side .
