Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> 2ML70 - Automatic Transmission >> Fluid Passages >> Case Assembly - Fluid Pump Cover Assembly Side

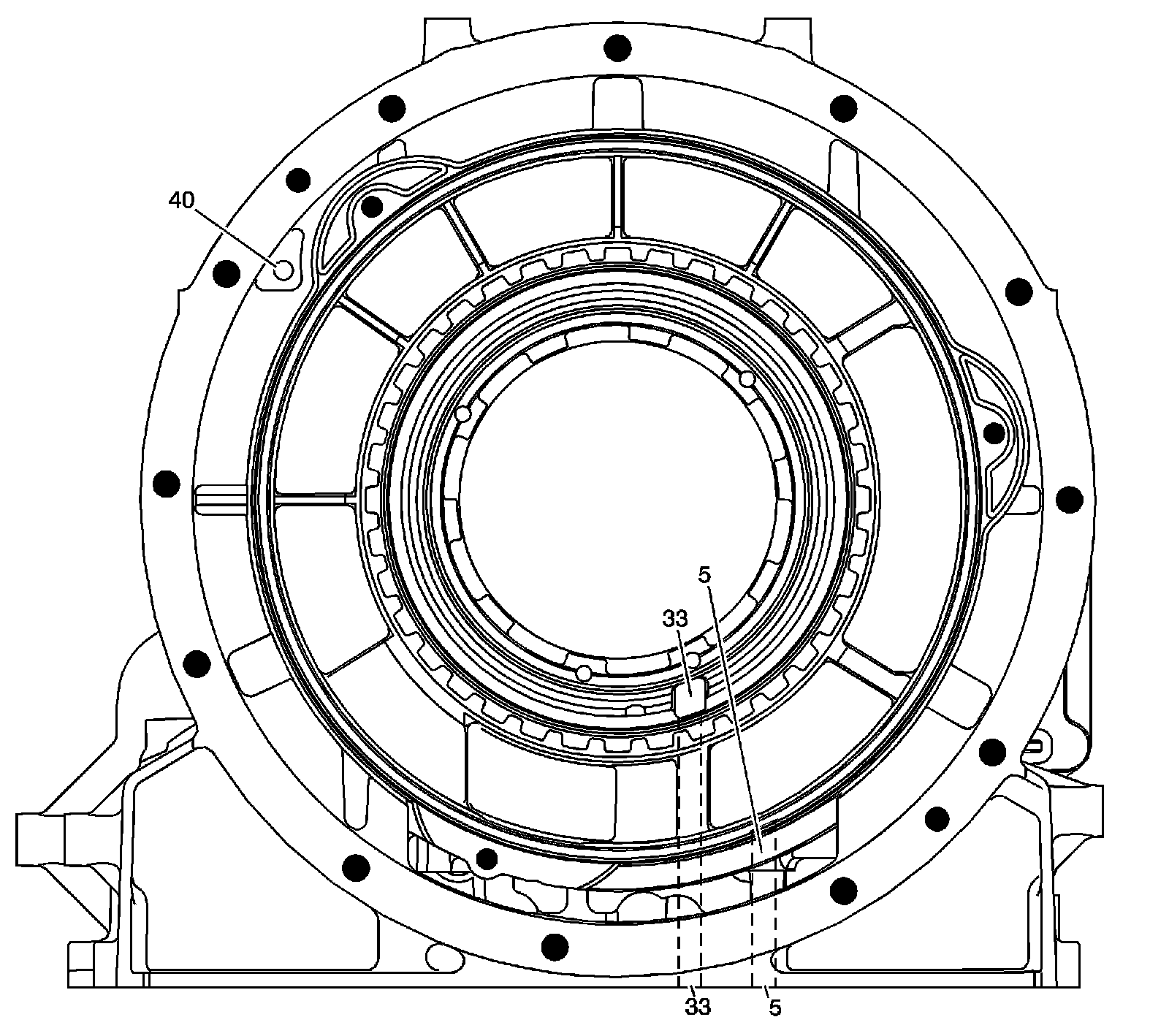

Case Assembly - Fluid Pump Cover Assembly Side




Fluid Passages

Case Assembly - Fluid Pump Cover Assembly Side




5 - A Cooling
33 - 4th Clutch
40 - Vent
