Seat Front Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)




Component Connector End Views

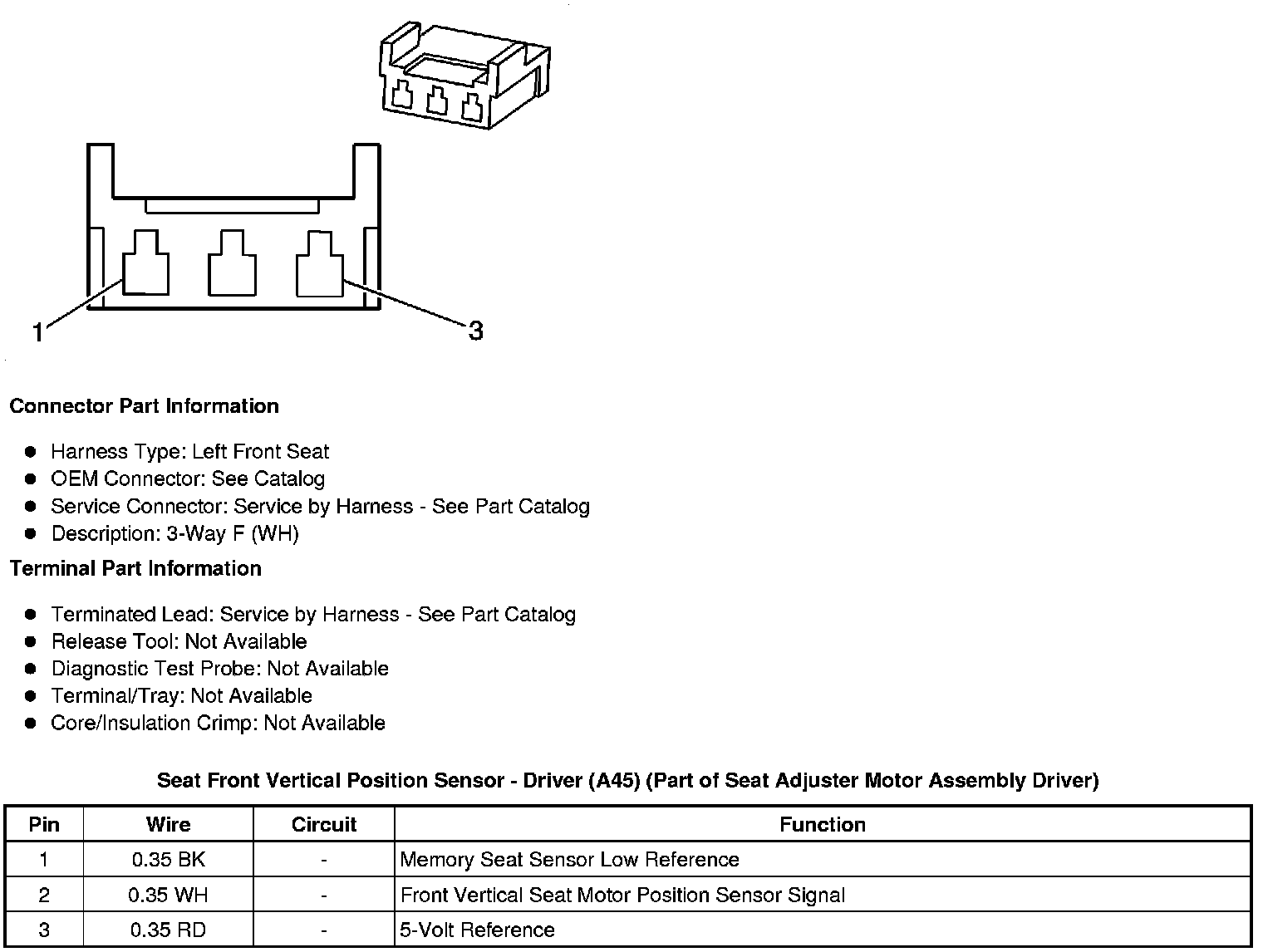

Seat Front Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)
