X412 Right Rear Lamp Harness to Chassis Harness (X88 or Z88, with E52)

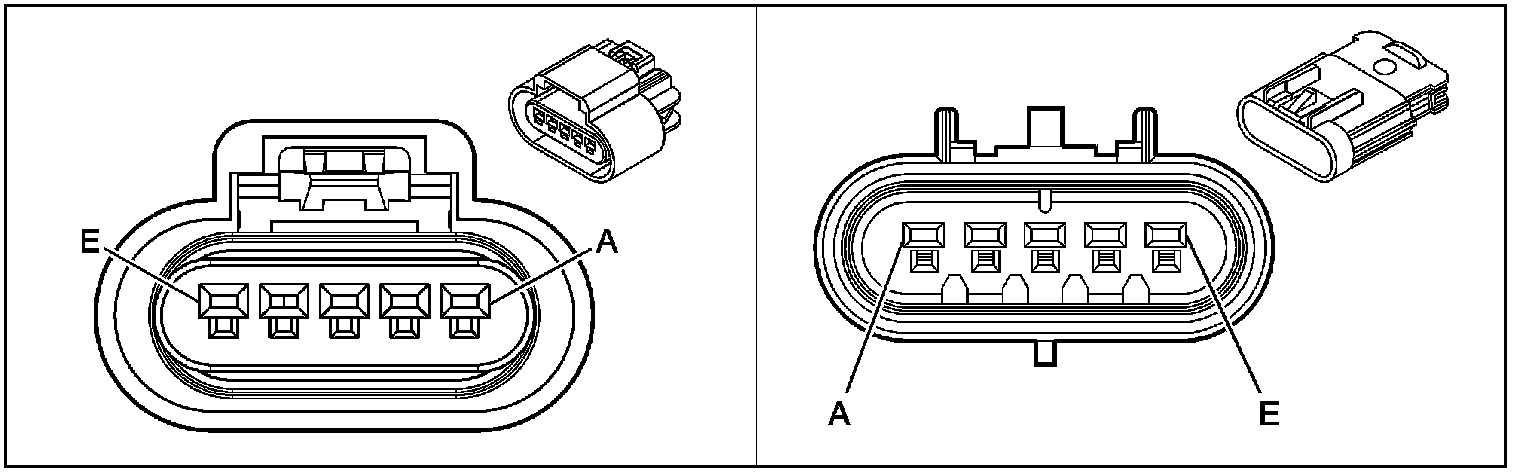

Inline Harness Connector End Views

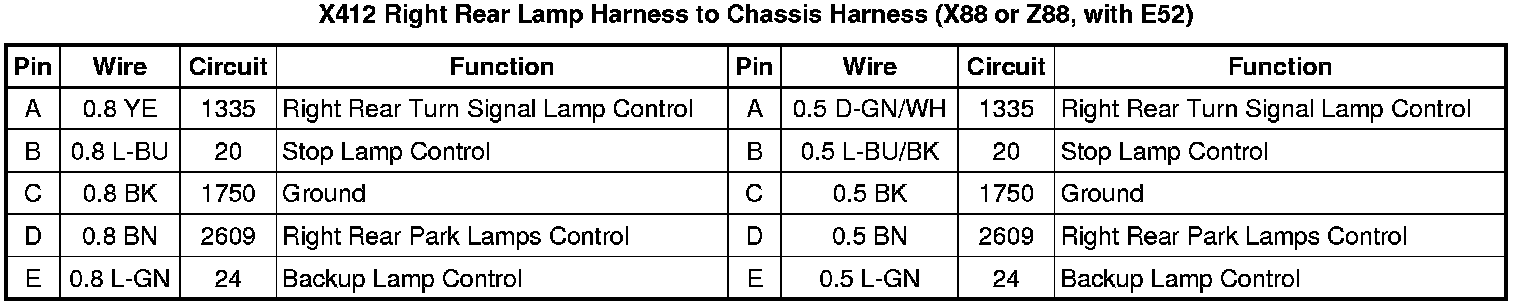

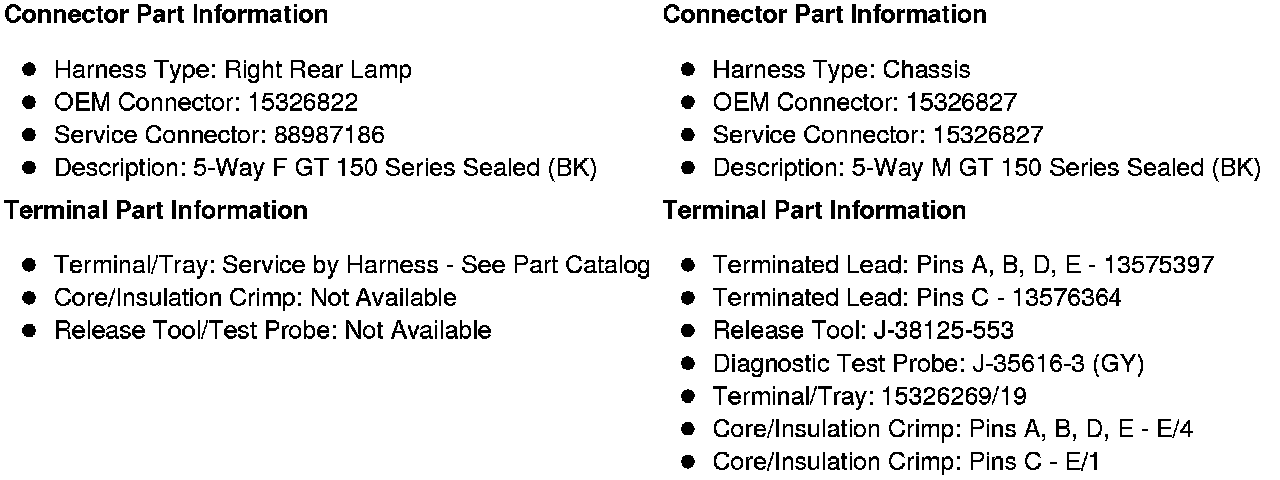

X412 Right Rear Lamp Harness to Chassis Harness (X88 or Z88, with E52)
