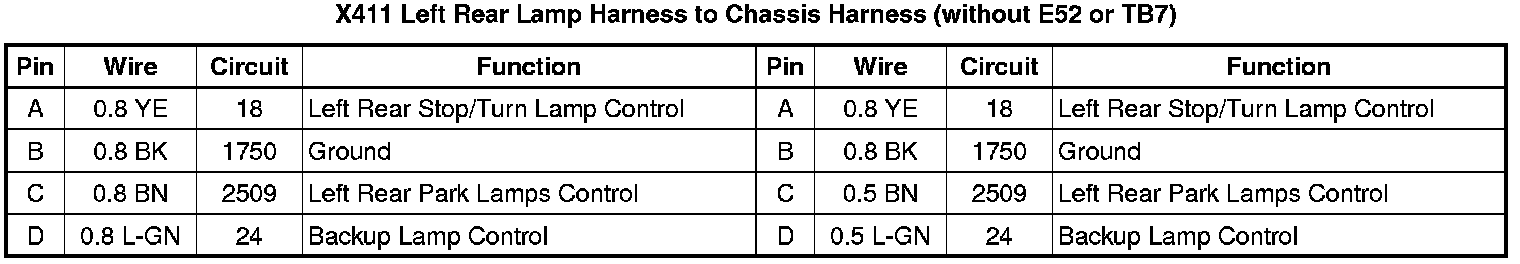

X411 Left Rear Lamp Harness to Chassis Harness (without E52 or TB7)




Inline Harness Connector End Views

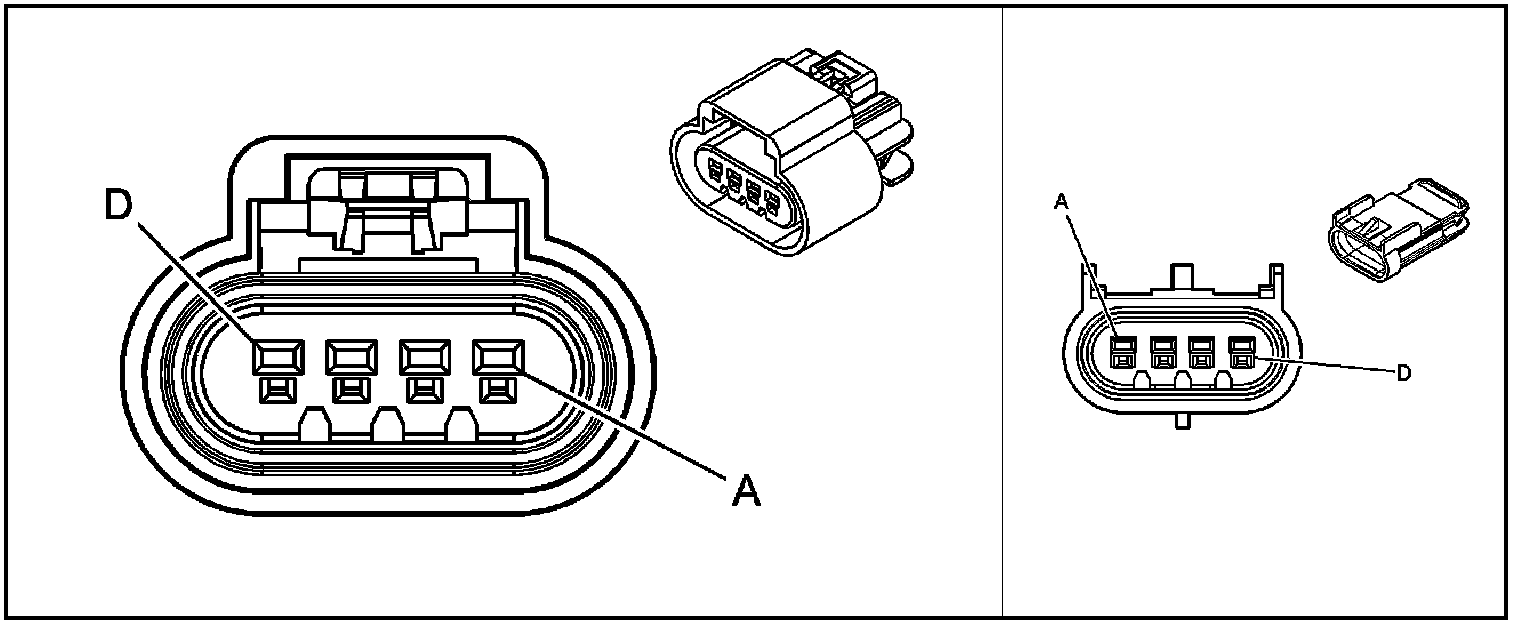

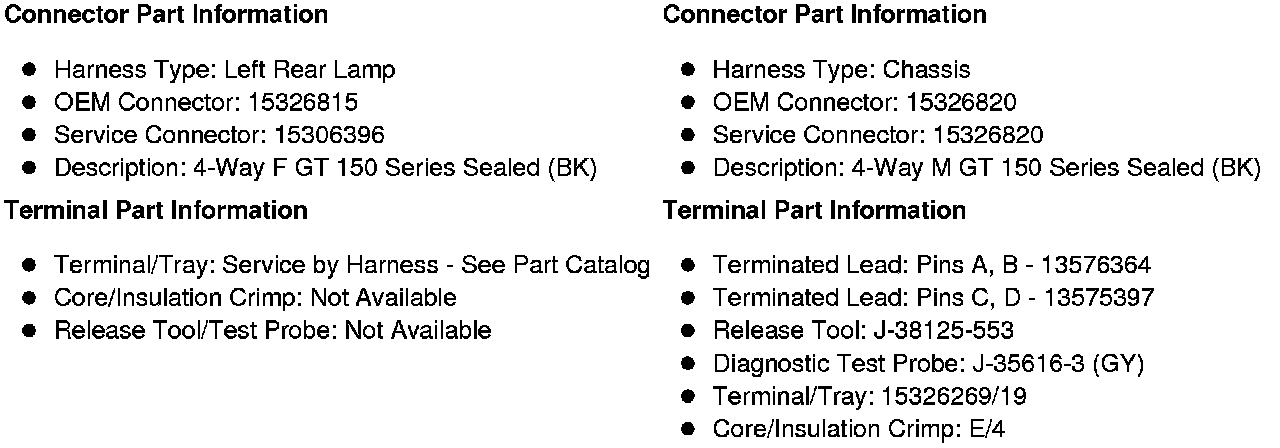

X411 Left Rear Lamp Harness to Chassis Harness (without E52 or TB7)
