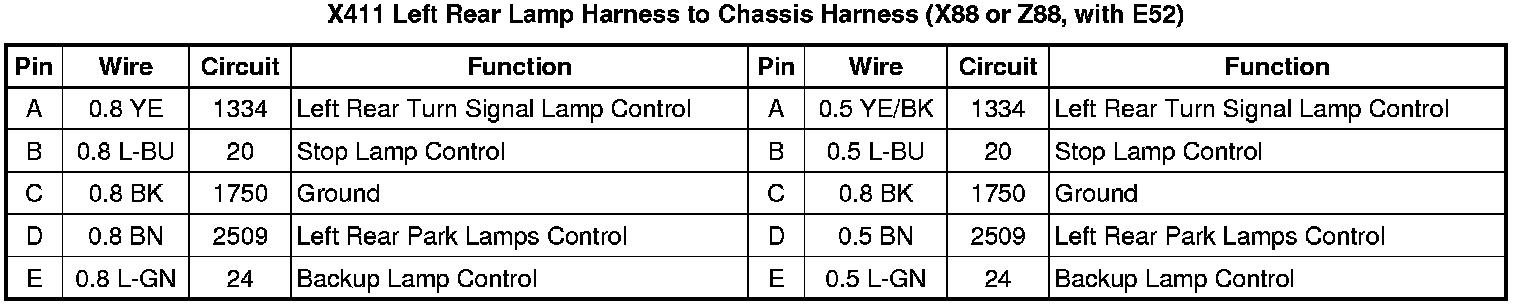

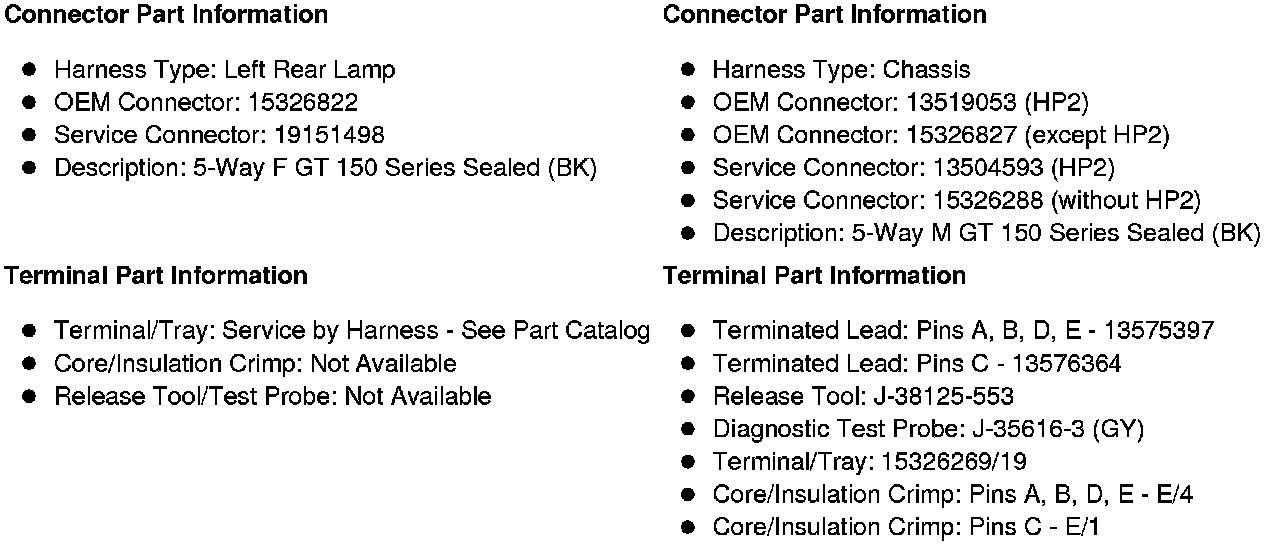

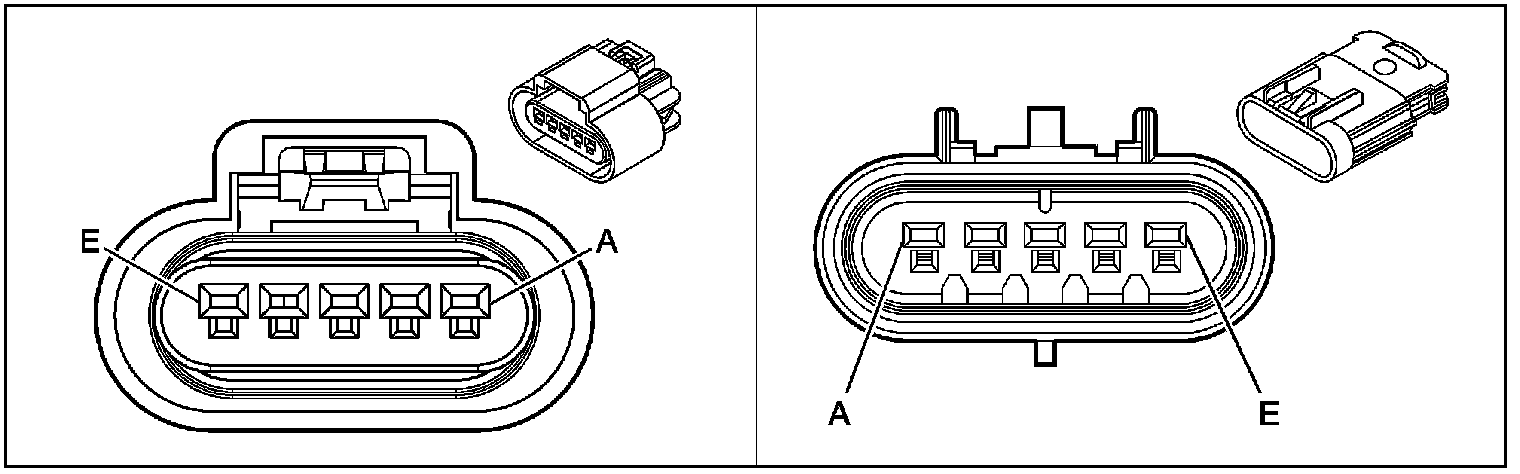

X411 Left Rear Lamp Harness to Chassis Harness (X88 or Z88, with E52)




Inline Harness Connector End Views

X411 Left Rear Lamp Harness to Chassis Harness (X88 or Z88, with E52)
