Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Connector End Views By Number >> X400 - X499 >> X409 Endgate Harness to Chassis Harness (without E52 or TB7, with UVC)

X409 Endgate Harness to Chassis Harness (without E52 or TB7, with UVC)




Inline Harness Connector End Views

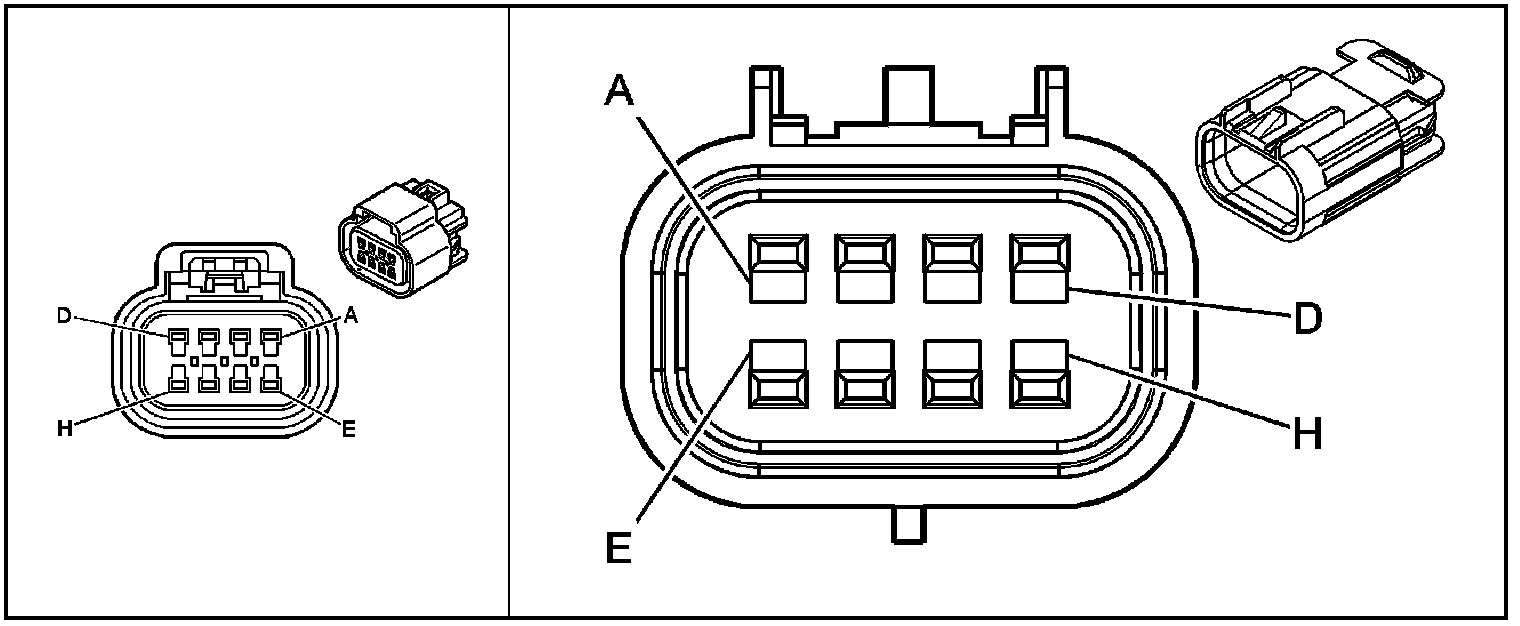

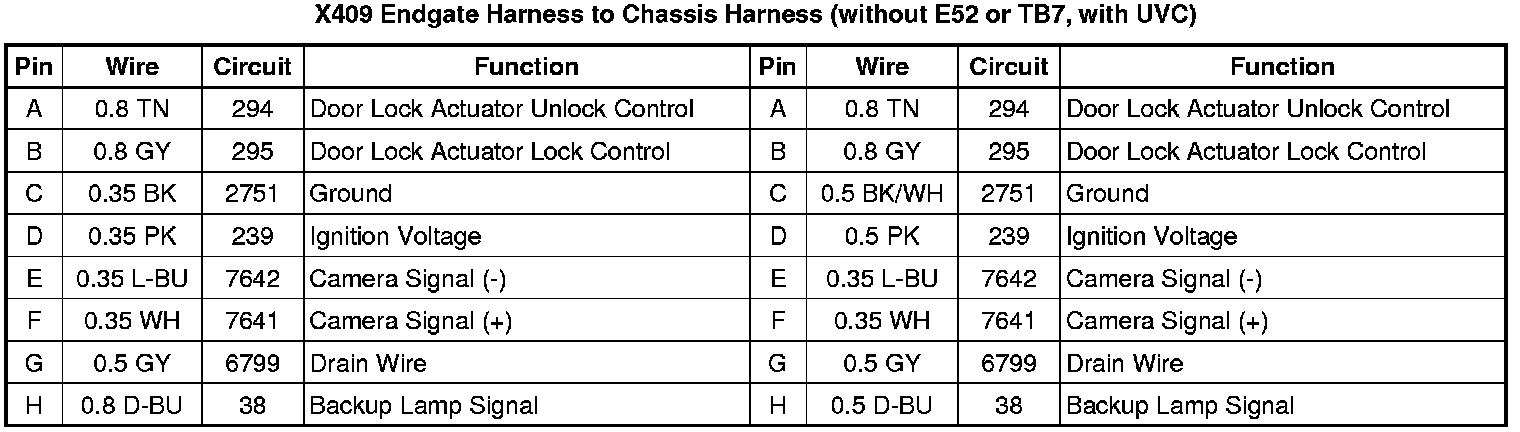

X409 Endgate Harness to Chassis Harness (without E52 or TB7, with UVC)
