X408 Body Harness to Rear Object Detection Harness (E52 with UD7)

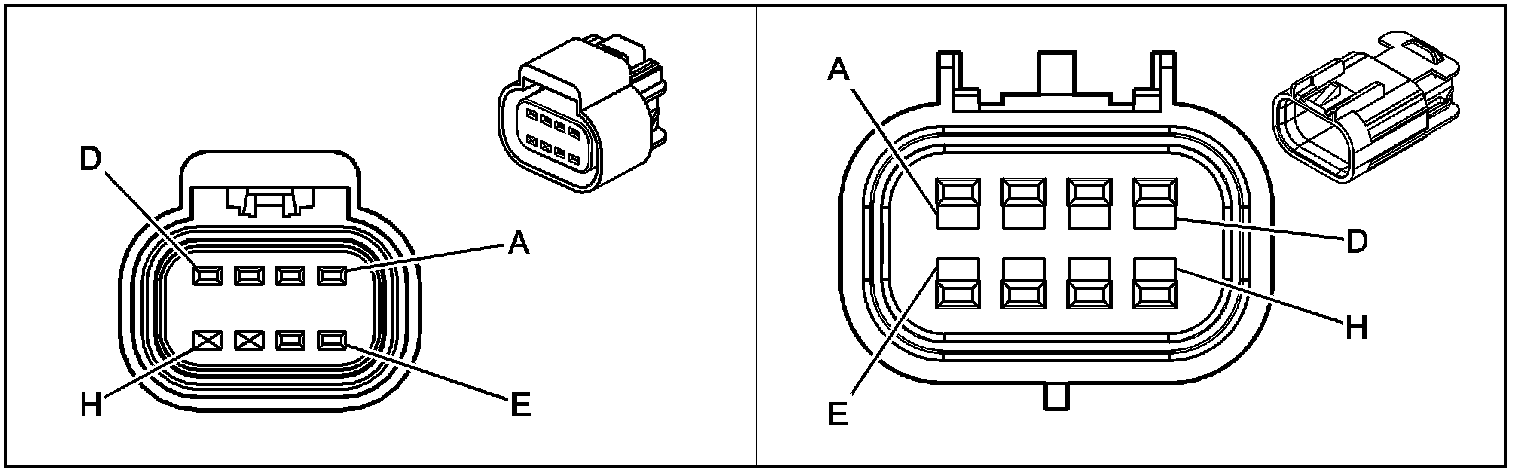

Inline Harness Connector End Views

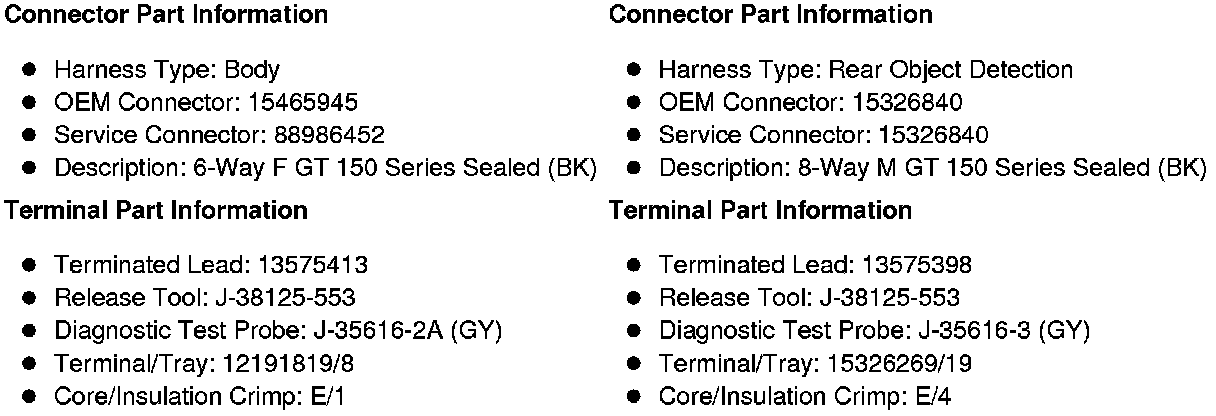

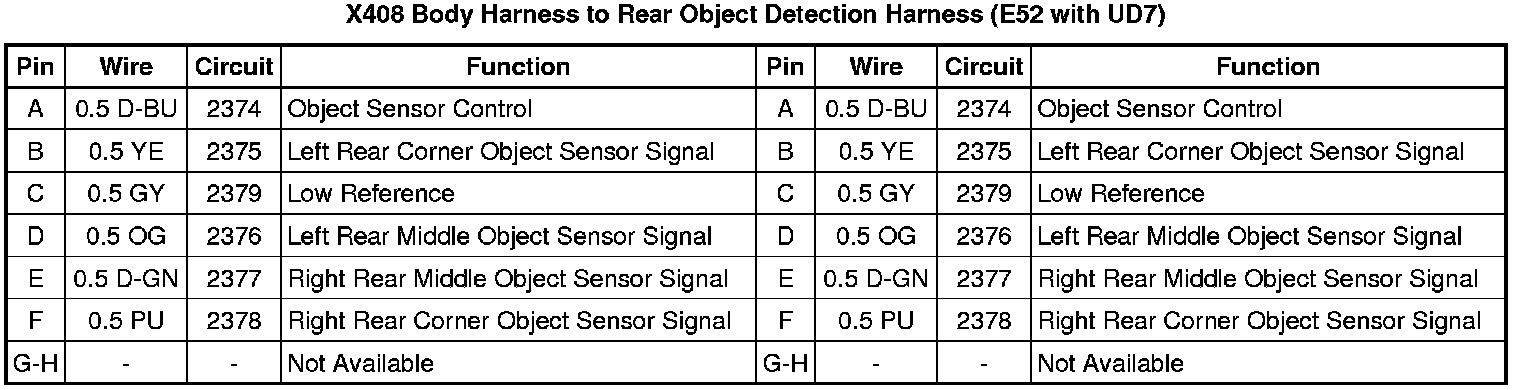

X408 Body Harness to Rear Object Detection Harness (E52 with UD7)
