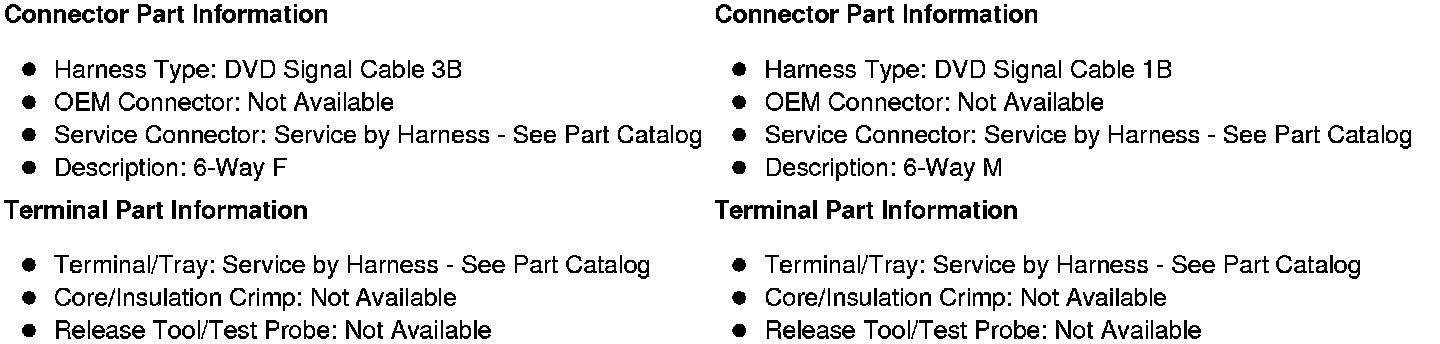

X373 DVD Signal Cable 3B to DVD Signal Cable 1B (SPO Accessory)

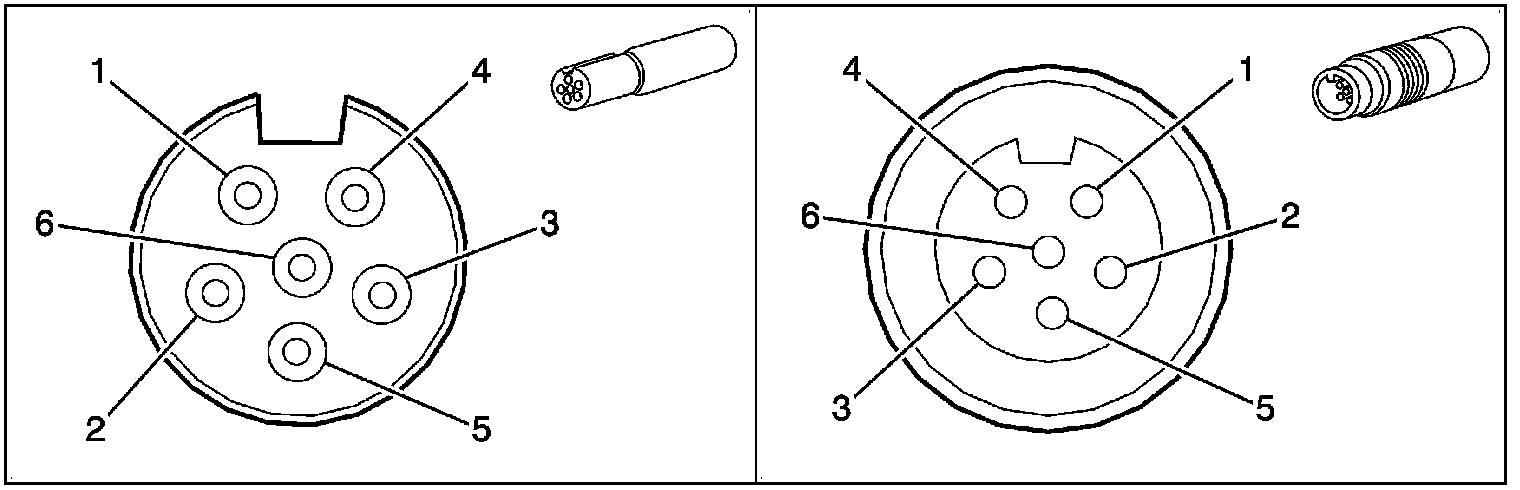

Inline Harness Connector End Views

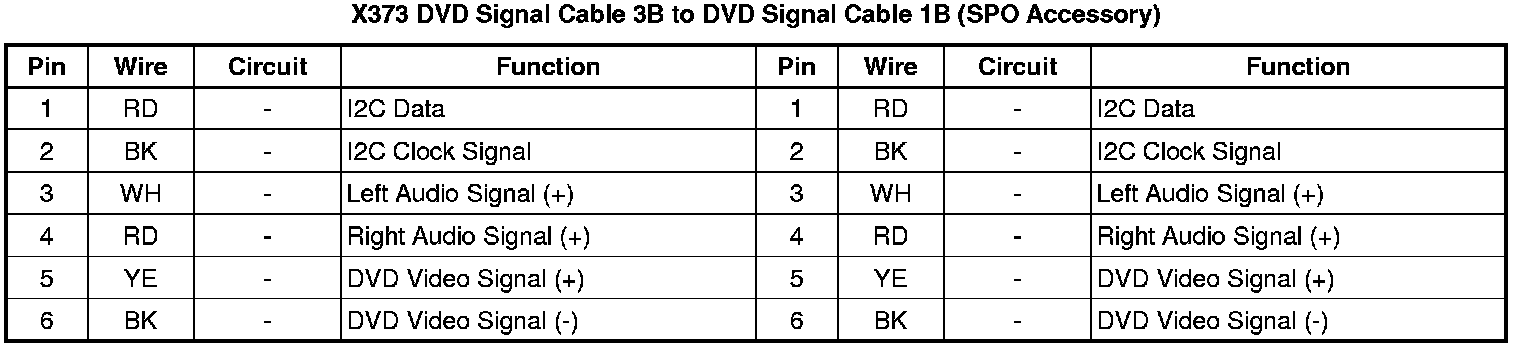

X373 DVD Signal Cable 3B to DVD Signal Cable 1B (SPO Accessory)
