Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Connector End Views By Number >> X300 - X399 >> X310 Body Harness to Chassis Harness (UD7 with UVC, without E52 or TB7)

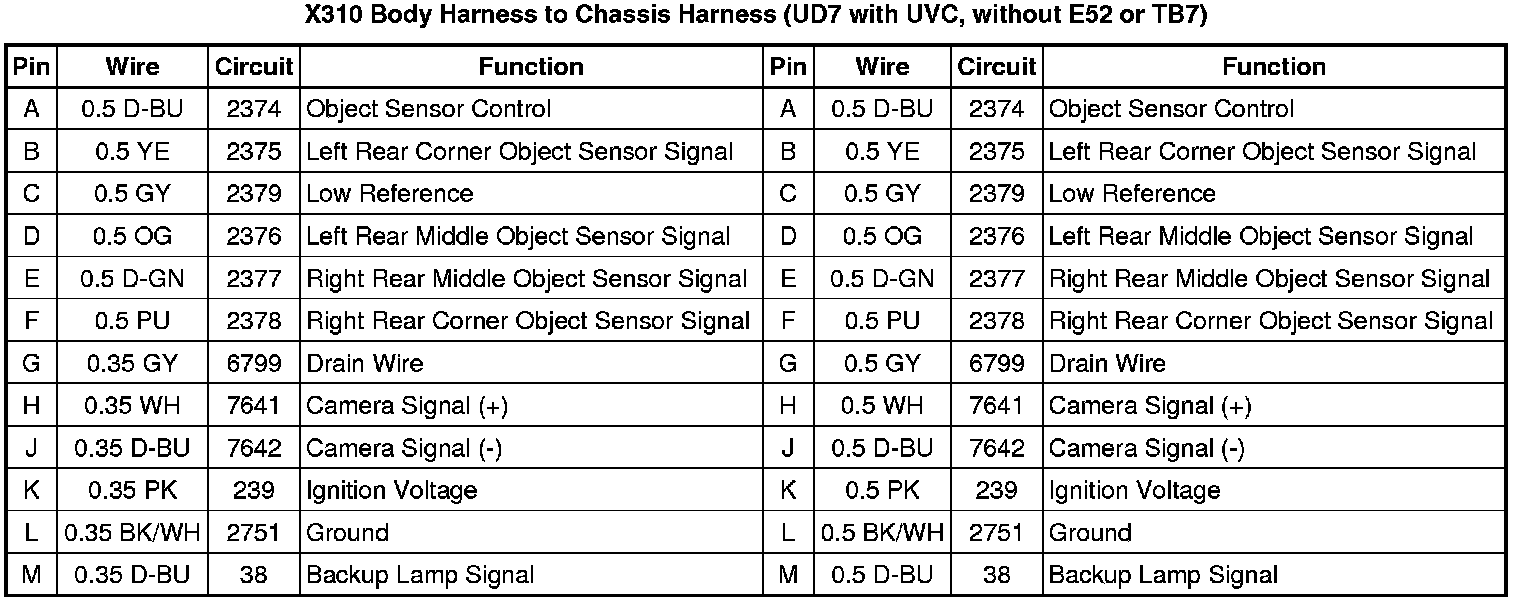

X310 Body Harness to Chassis Harness (UD7 with UVC, without E52 or TB7)

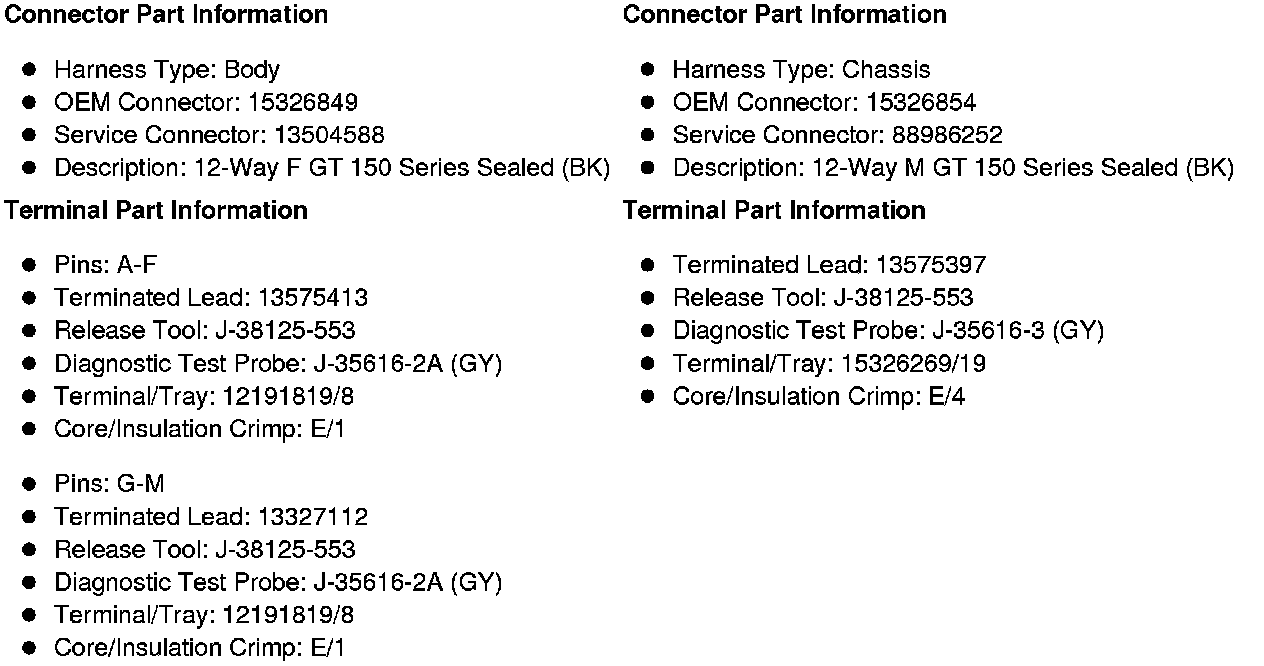

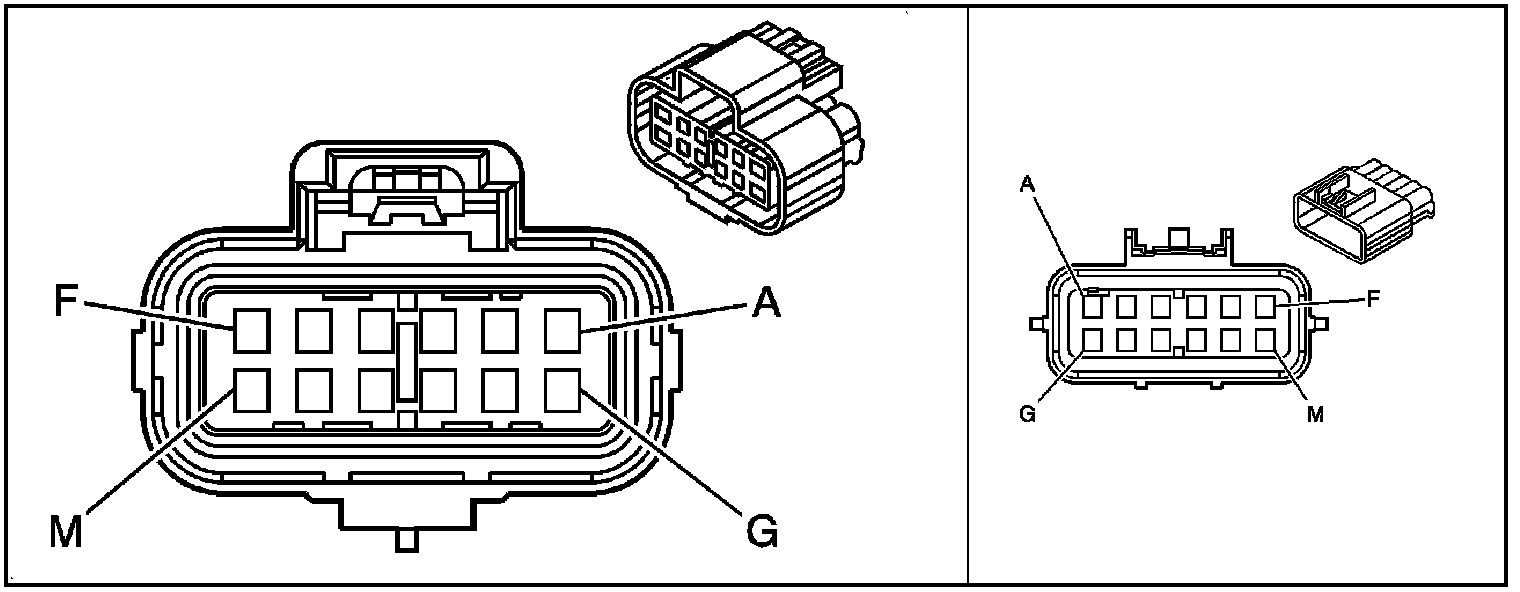

Inline Harness Connector End Views

X310 Body Harness to Chassis Harness (UD7 with UVC, without E52 or TB7)
