Home >> GMC Truck >> 2011 >> Yukon XL 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Connector End Views By Number >> X200 - X299 >> X271 Instrument Panel Harness to Instrument Panel Harness (5W4 or PPV)

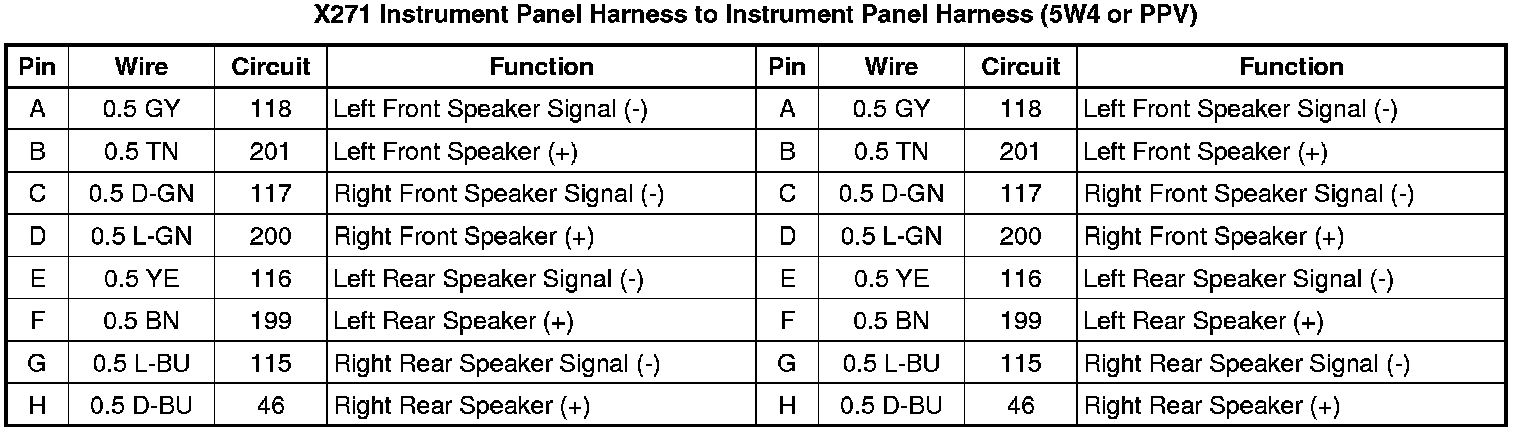

X271 Instrument Panel Harness to Instrument Panel Harness (5W4 or PPV)

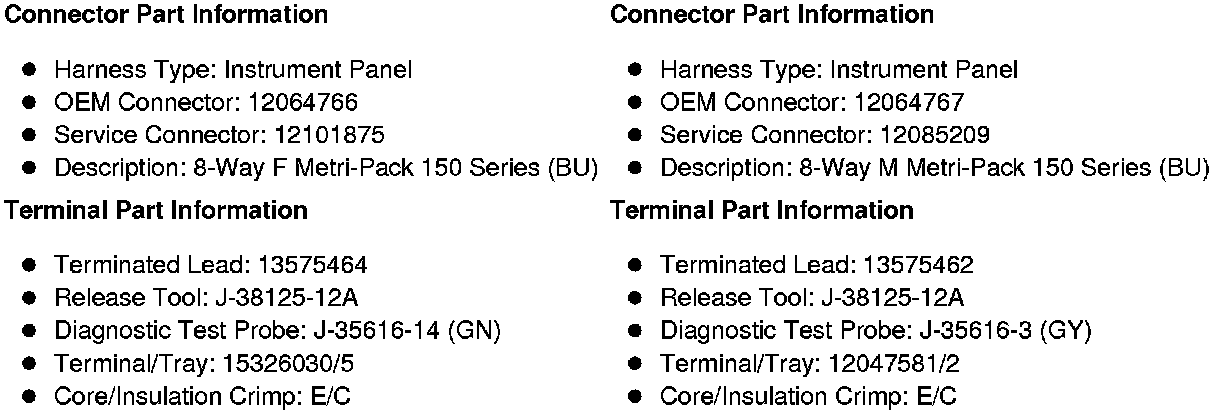

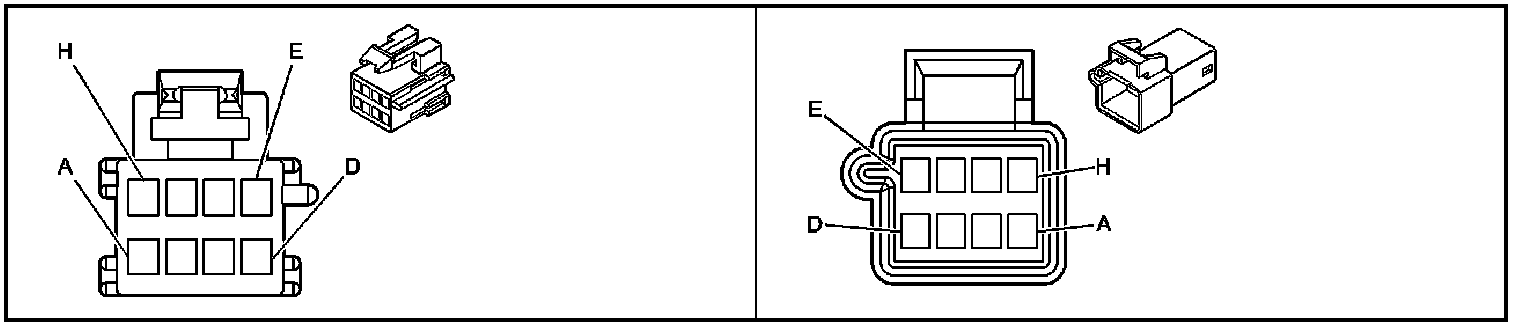

Inline Harness Connector End Views

X271 Instrument Panel Harness to Instrument Panel Harness (5W4 or PPV)
