X123 Brake/Clutch Harness to Chassis Harness (JL1)
X123 Brake/Clutch Harness to Chassis Harness (JL1)

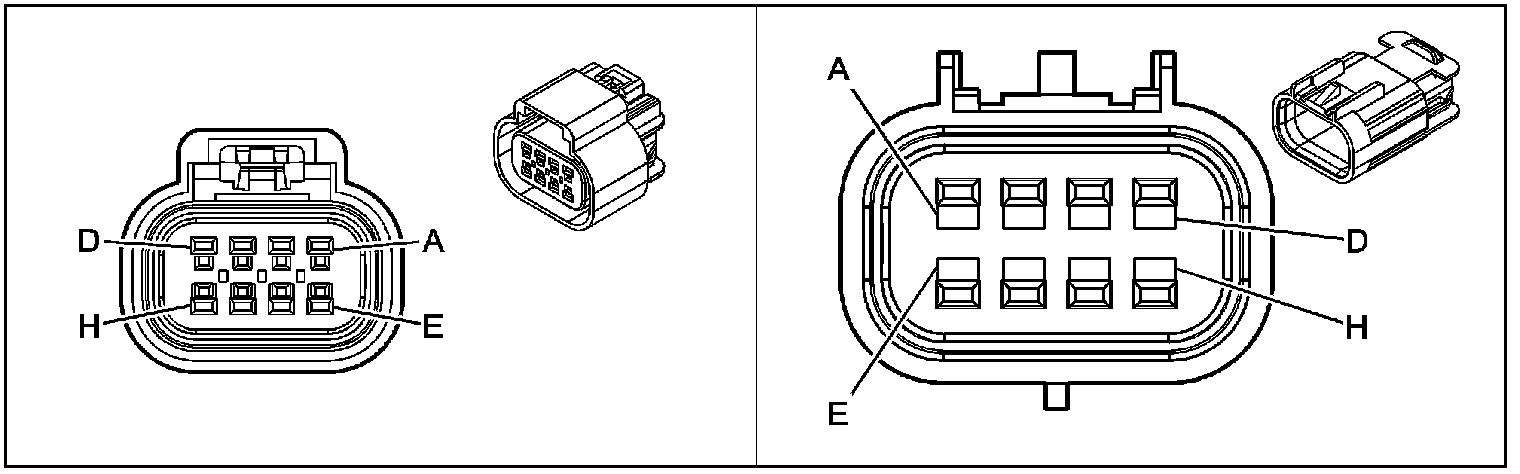

Inline Harness Connector End Views

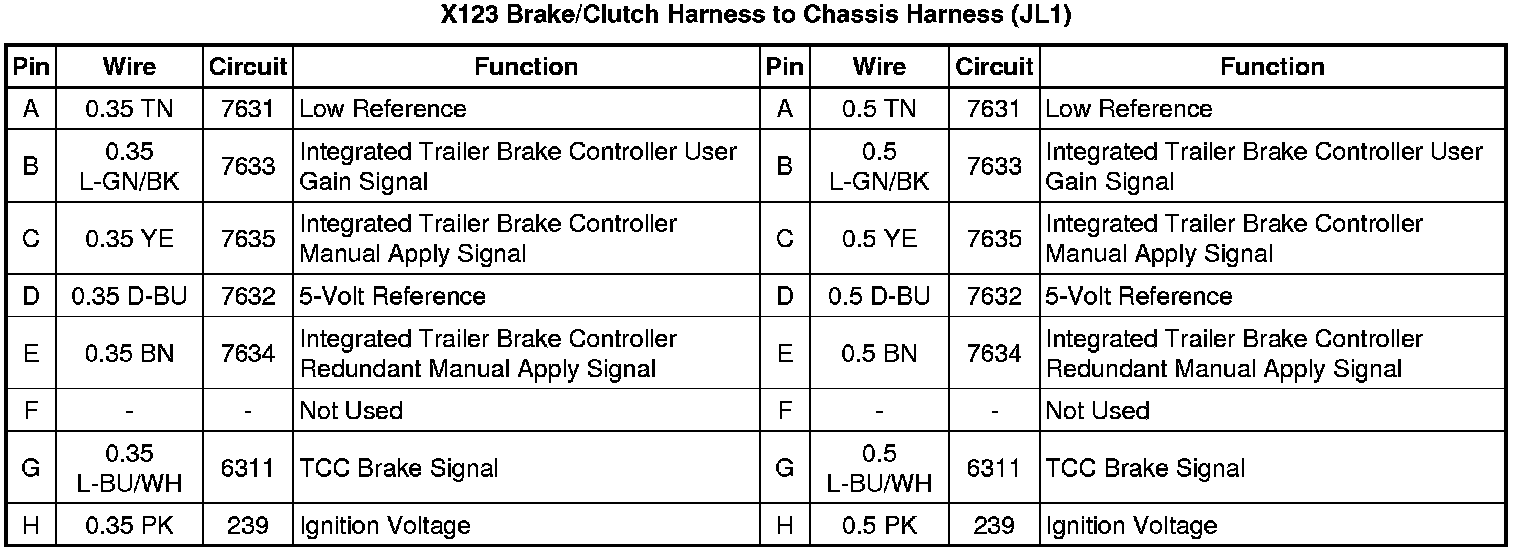

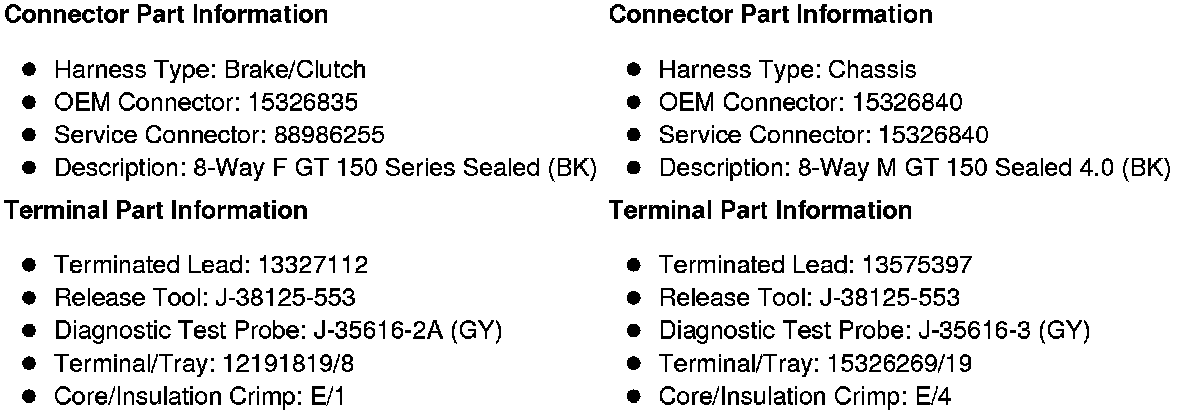

X123 Brake/Clutch Harness to Chassis Harness (JL1)
