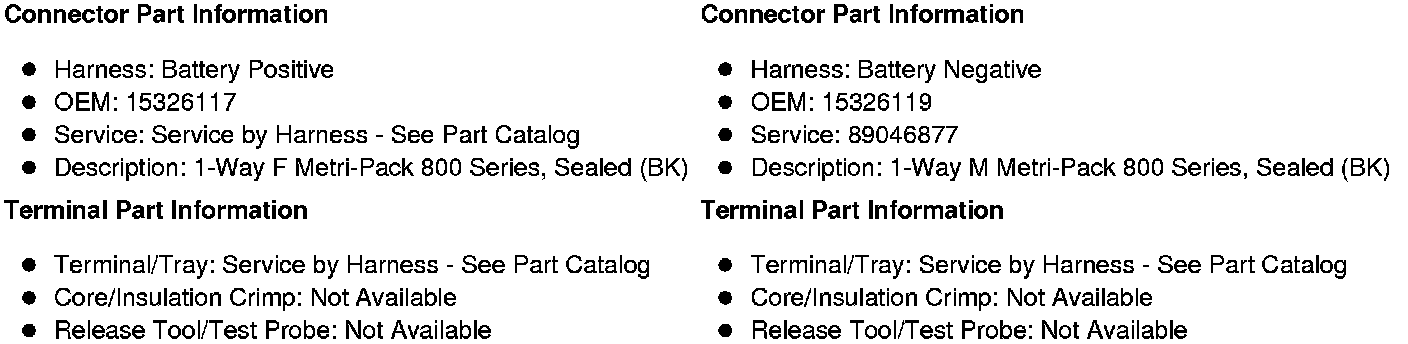

X121 Battery Positive Harness to Battery Negative Harness (9L4)

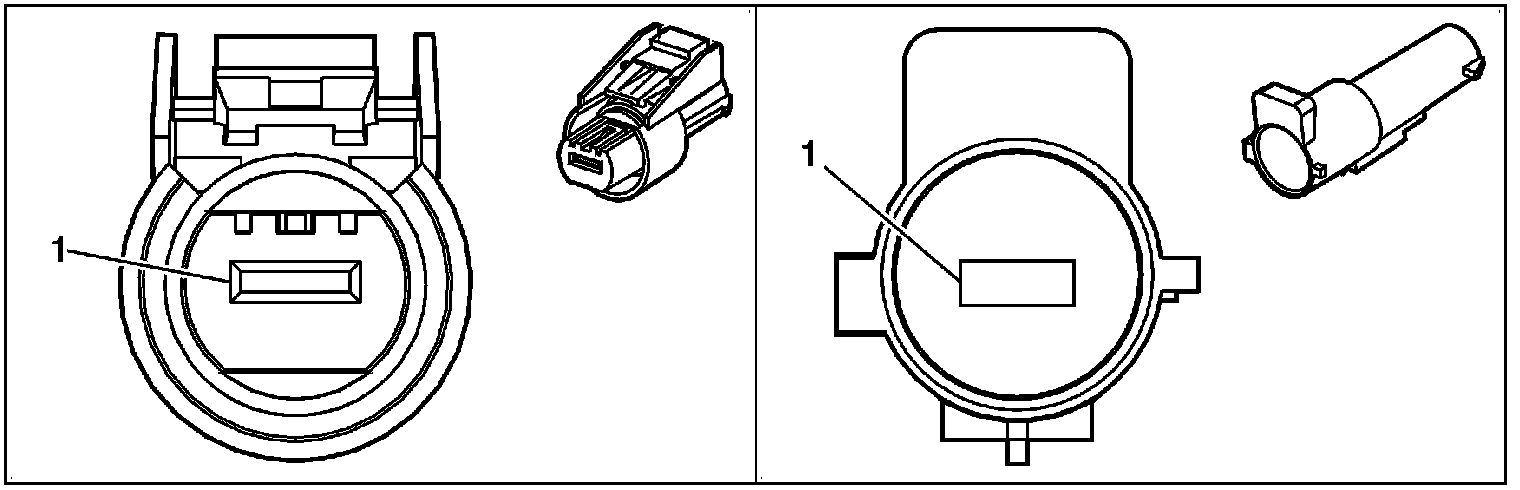

Inline Harness Connector End Views

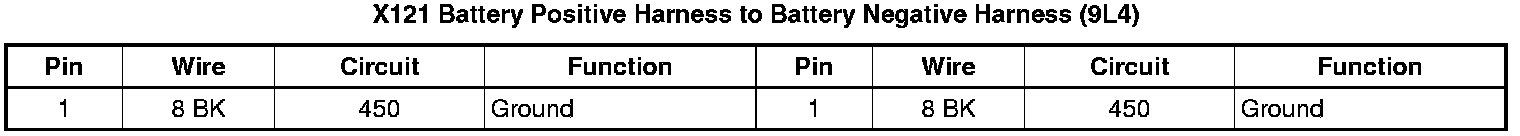

X121 Battery Positive Harness to Battery Negative Harness (9L4)
