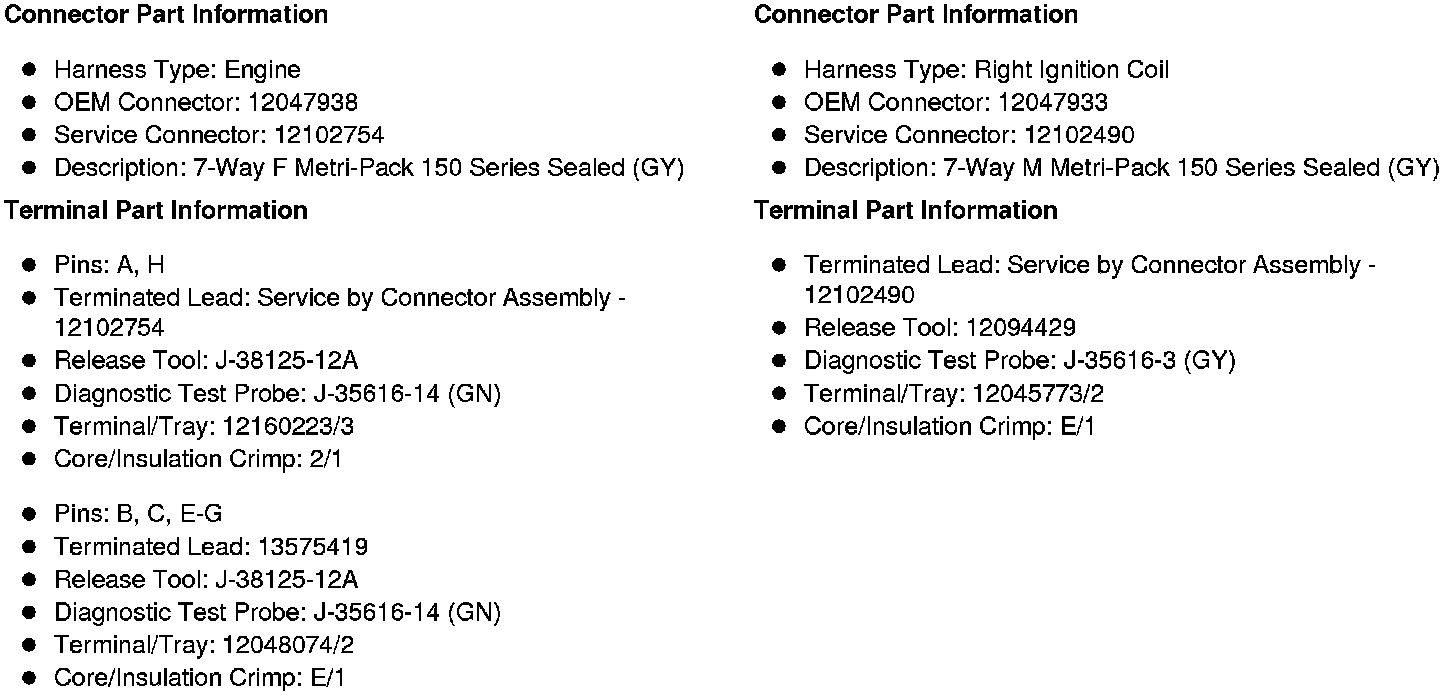

X113 Engine Harness to Right Ignition Coil Harness
X113 Engine Harness to Right Ignition Coil Harness

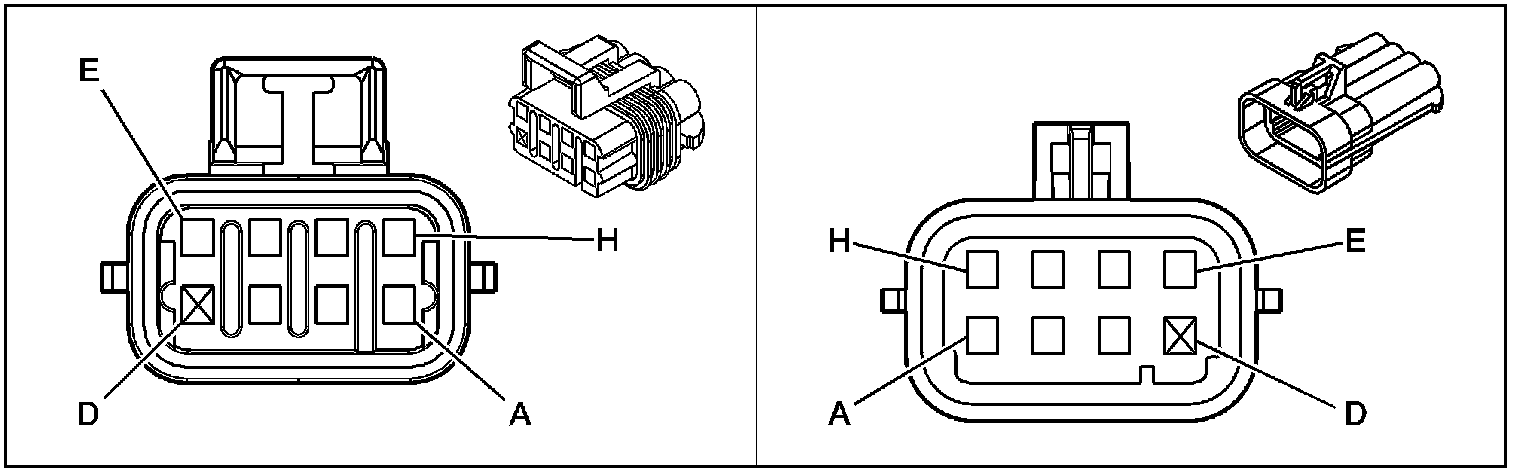

Inline Harness Connector End Views

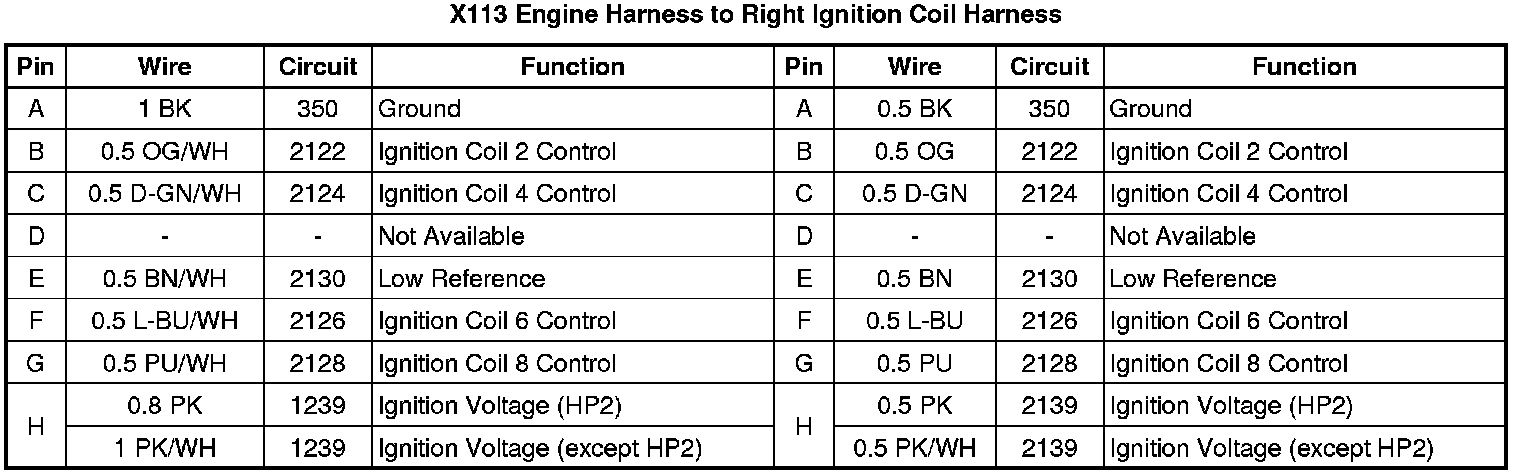

X113 Engine Harness to Right Ignition Coil Harness
