X110 Engine Harness to Front Axle Harness (NQH or NP0)
X110 Engine Harness to Front Axle Harness (NQH or NP0)

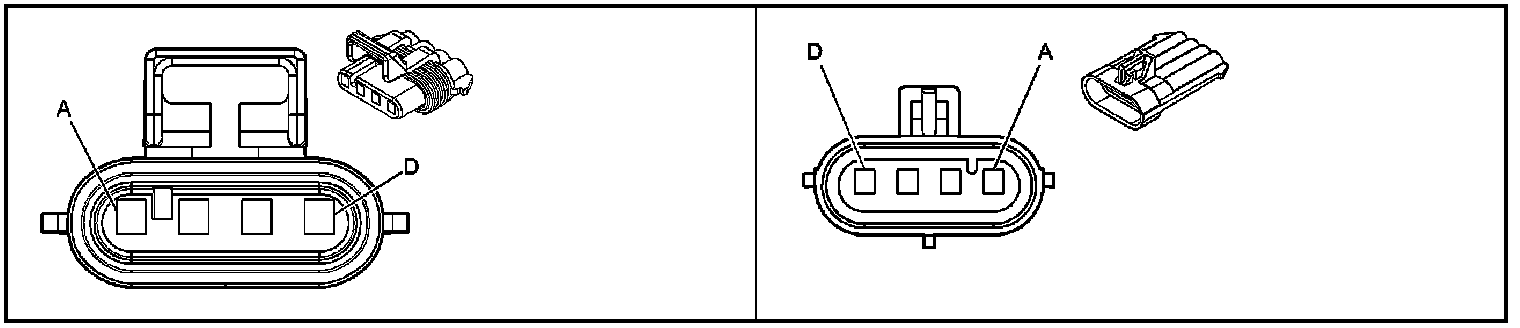

Inline Harness Connector End Views

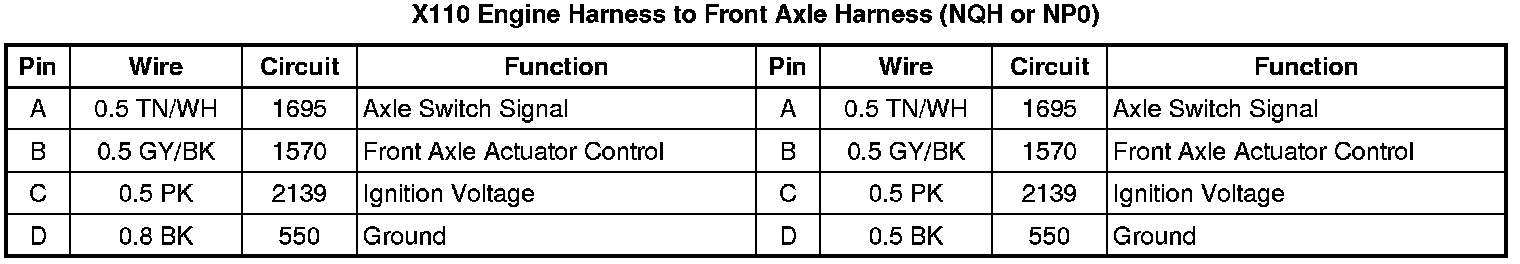

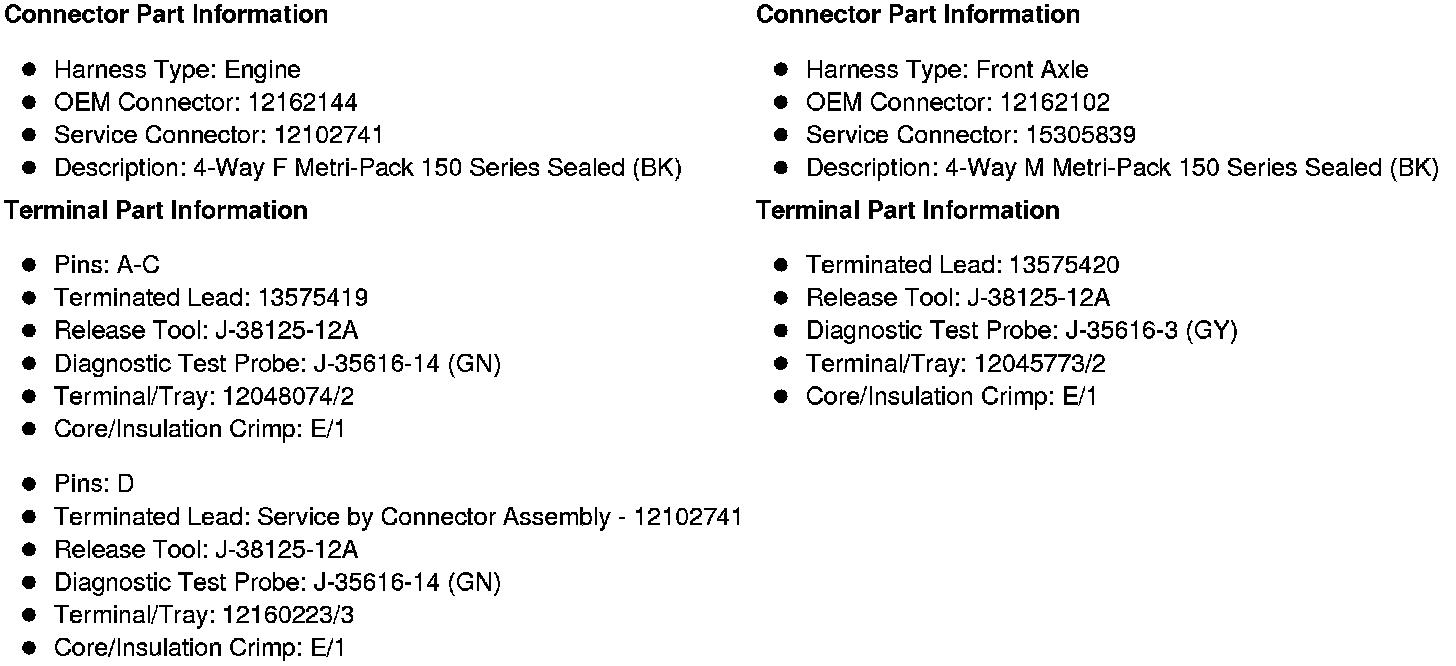

X110 Engine Harness to Front Axle Harness (NQH or NP0)
