Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
Component Connector End Views

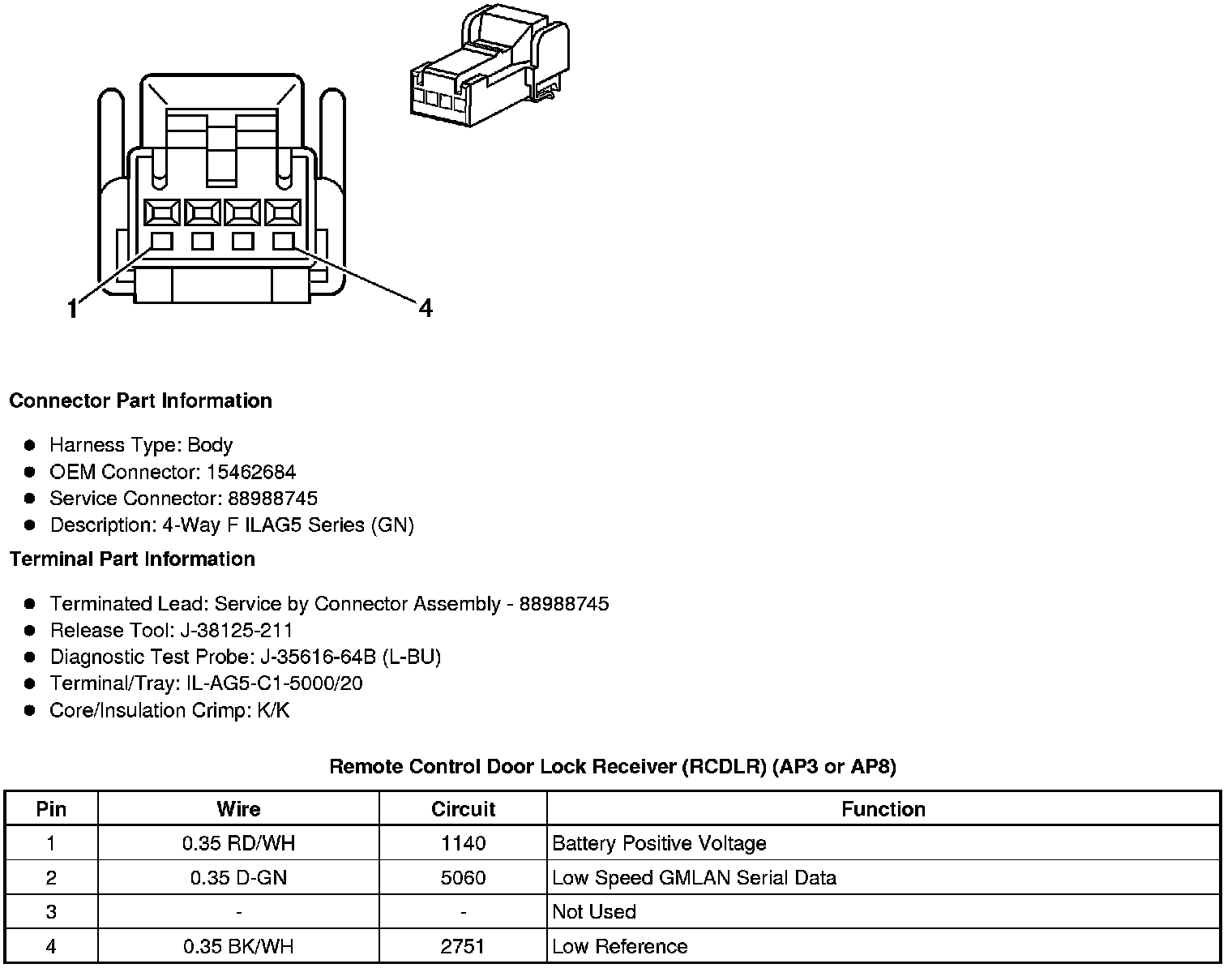

Remote Control Door Lock Receiver (RCDLR) (AP3 or AP8)
