Rearview Camera (UVC or SPO Accessory Rear Vision Camera)
Rearview Camera (UVC or SPO Accessory Rear Vision Camera)
Component Connector End Views

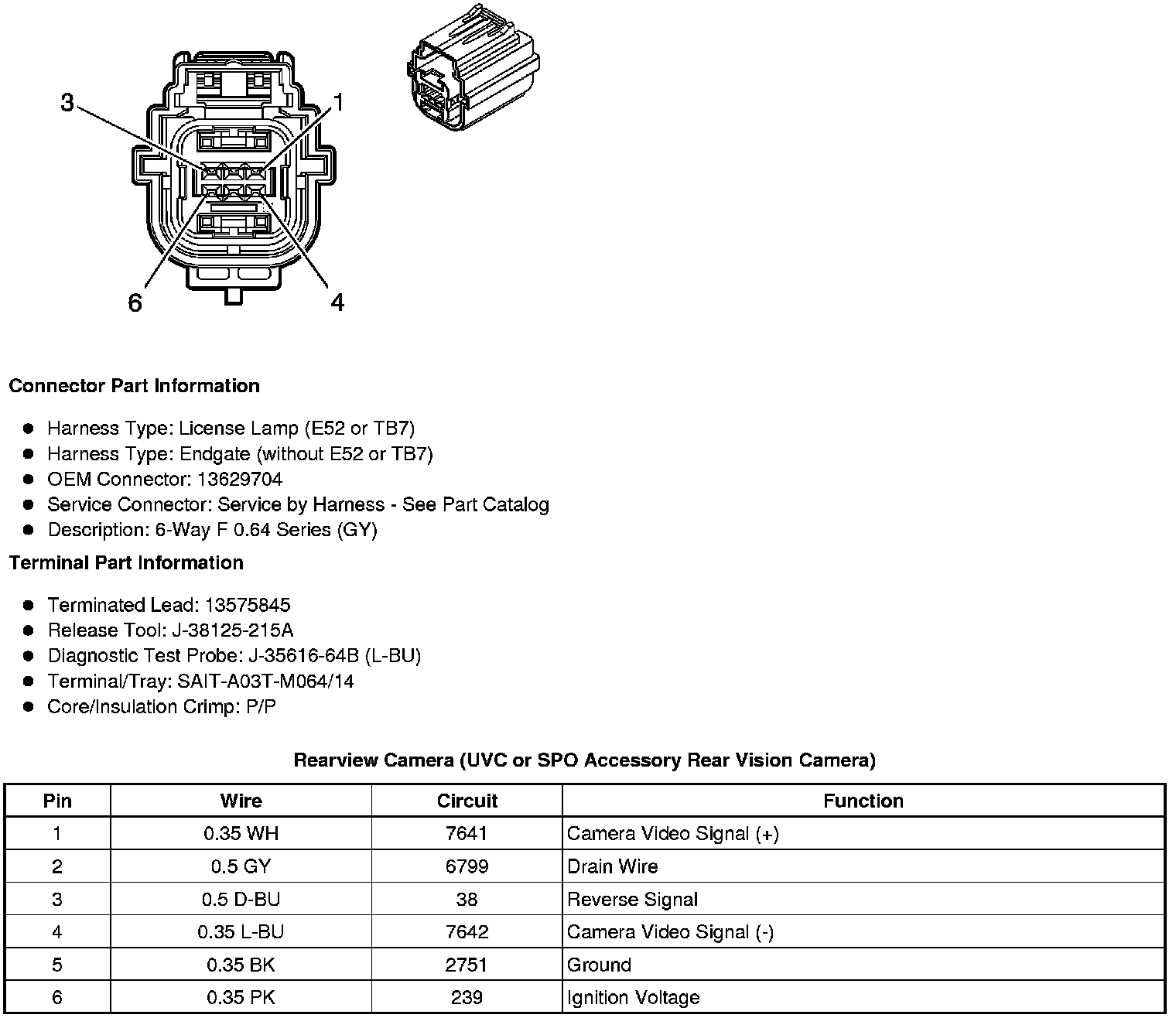

Rearview Camera (UVC or SPO Accessory Rear Vision Camera)
