Rear Window Washer Fluid Pump (E52 or TB7)
Rear Window Washer Fluid Pump (E52 or TB7)
Component Connector End Views

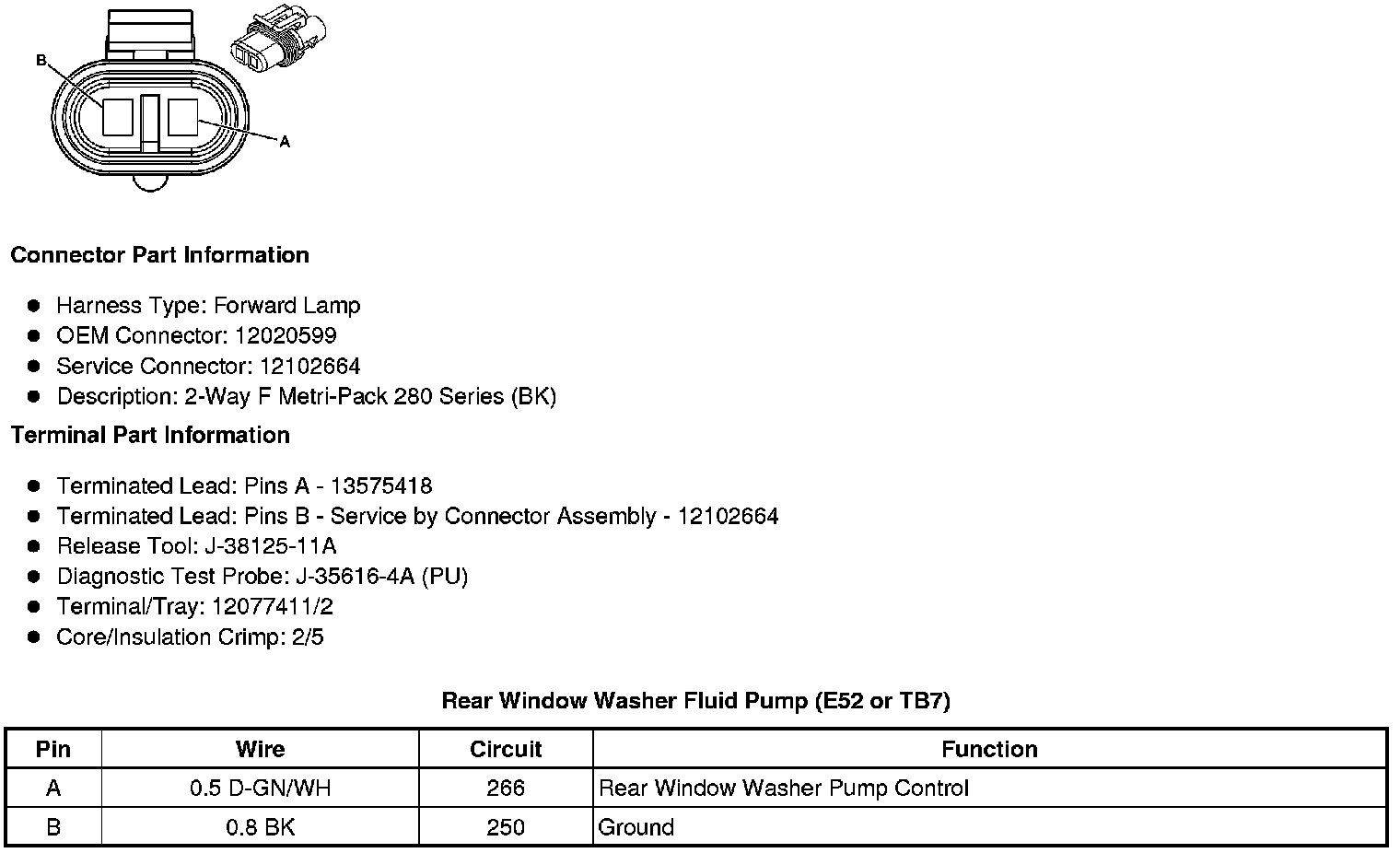

Rear Window Washer Fluid Pump (E52 or TB7)
